Want lift plus power and performance? High Lifter engineered a gearing setup for a 6'' portal with 45% gear reduction. You can run a larger tire size between a 33 to 39 inches and have the torque and horsepower you need. The 45% gear reduction is a robust set of portals giving height and power in any terrain. Mud Riding geared to get you out of the thickest mud holes and 6 inches of height to pass over anything that comes in your way. Rock Climbing 45% gear reduction makes that rocky terrain seem easy. You’ll have the power to ease right over rocks and boulders, plus added lift to run big tires to go places your friends can’t.
-
Weight: 250.000000
-
Length: 48.000000
-
Width: 48.000000
-
Height: 36.000000
Why is this 6” kit better than our competitor?

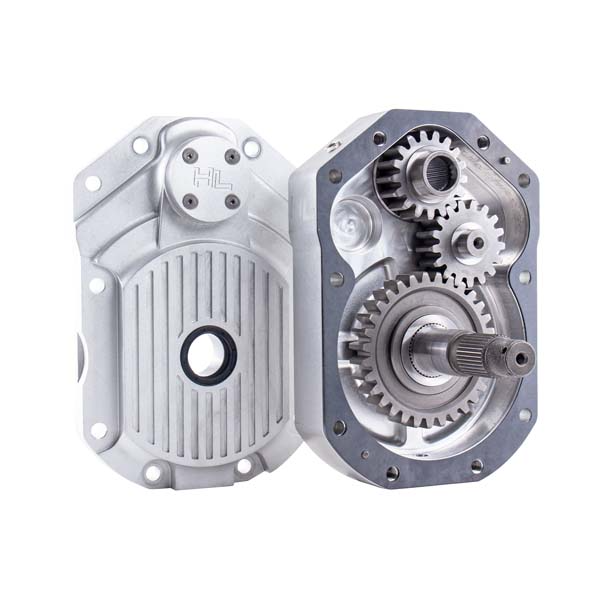

Forged Gear Boxes
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with Bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
13” Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
FITMENT
-
2016 Can-Am Defender HD8
-
2016 Can-Am Defender HD10
-
2016 Can-Am Defender HD8 DPS
-
2016 Can-Am Defender HD10 DPS
-
2016 Can-Am Defender HD8 XT
-
2016 Can-Am Defender HD10 XT
-
2016 Can-Am Defender HD10 CAB
-
2017 Can-Am Defender HD10
-
2017 Can-Am Defender HD10 CAB
-
2017 Can-Am Defender HD10 DPS
-
2017 Can-Am Defender HD10 XT
-
2017 Can-Am Defender HD8 BASE
-
2017 Can-Am Defender HD8
-
2017 Can-Am Defender HD8 DPS
-
2017 Can-Am Defender HD8 XT
-
2018 Can-Am Defender HD10
-
2018 Can-Am Defender HD10 DPS
-
2018 Can-Am Defender HD10 XT
-
2018 Can-Am Defender HD10 CAB XT
-
2018 Can-Am Defender HD8
-
2018 Can-Am Defender HD8 DPS
-
2018 Can-Am Defender HD8 XT
-
2018 Can-Am Defender HD8 CAB XT
-
2018 Can-Am Defender HD10 XMR
-
2018 Can-Am Defender HD10 XTP
-
2019 Can-Am Defender HD10 DPS
-
2019 Can-Am Defender HD10 XT
-
2019 Can-Am Defender HD10 XTP
-
2019 Can-Am Defender HD10 XMR
-
2019 Can-Am Defender HD10 CAB
-
2019 Can-Am Defender HD8
-
2019 Can-Am Defender HD8 DPS
-
2019 Can-Am Defender HD8 XT
-
2019 Can-Am Defender HD8 CAB
-
2020 Can-Am Defender HD10 DPS
-
2020 Can-Am Defender HD10 XT
-
2020 Can-Am Defender HD10 XTP
-
2020 Can-Am Defender HD10 XMR
-
2020 Can-Am Defender HD10 CAB XT
-
2020 Can-Am Defender HD8
-
2020 Can-Am Defender HD8 DPS
-
2020 Can-Am Defender HD8 XT
-
2020 Can-Am Defender HD8 CAB XT
-
2020 Can-Am Defender HD5
-
2020 Can-Am Defender HD5 DPS
-
2020 Can-Am Defender HD10 Mossy Oak Edition
-
2021 Can-Am Defender HD10 DPS
-
2021 Can-Am Defender HD10 LTD CAB
-
2021 Can-Am Defender HD10 XMR
-
2021 Can-Am Defender HD10 XT
-
2021 Can-Am Defender HD8
-
2021 Can-Am Defender HD8 CAB DPS
-
2021 Can-Am Defender HD8 DPS
-
2021 Can-Am Defender HD8 XT
-
2021 Can-Am Defender HD5
- 2021 Can-Am Defender HD5 DPS
INCLUDES
Item
DETAILS
TERMS OF WARRANTY
Click here for High Lifter's limited lifetime warranty.
