RockJock Johnny Joint Rod End 2 1/2in Forged 2.625in X .562in Ball 1 1/4in-12 RH Thread Shank ^{GREAT DEAL}

Regular price $ 66.00

Vendor: RockJock Turn14Logo

Type: Suspension Arms & Components

Part #: ROKCE-9114

Related: 810038151946

Lead Time: Almost sold out

Hurry, we might sell out of inventory!

CHRISTMAS SALE [Ends 12/29/2025 at 11:59pm CST]

Get 5% OFF Sitewide, use code: CMALL5
Get 10% OFF WKP Products, use code: CMWKP10
Get 15% OFF Calibrations, use code: CMTUN15

DESCRIPTION

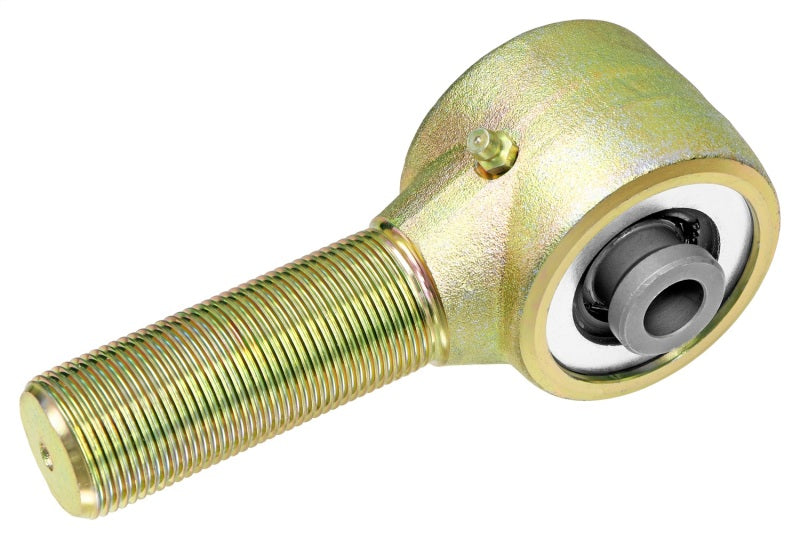

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.625 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.
