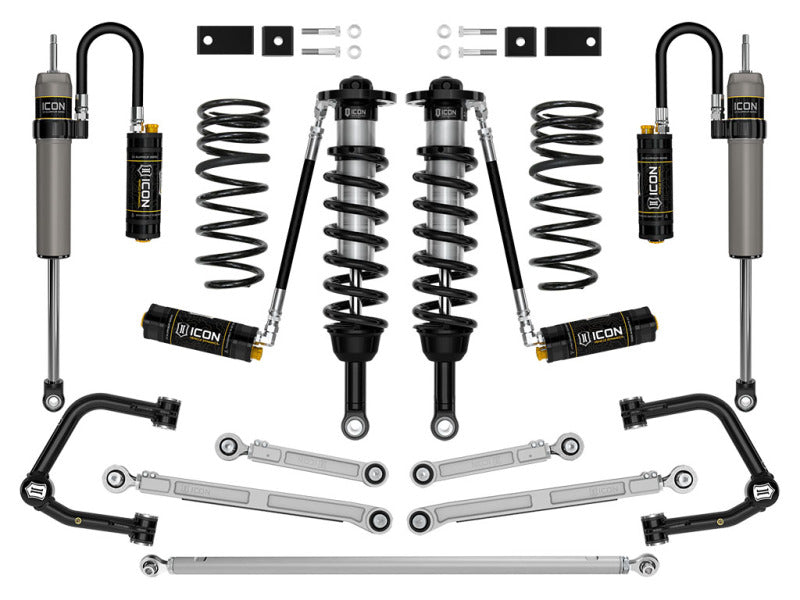

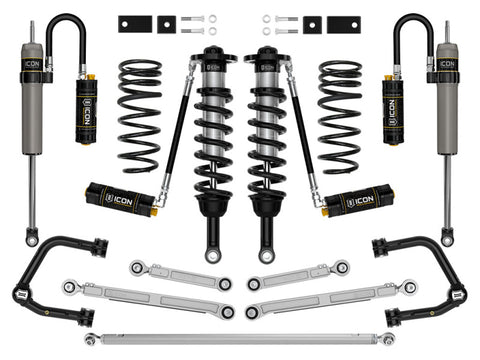

This Stage 10 system features the 2023-2025 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Installation InstructionsThis Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2025 | Toyota | Sequoia | 1794 Edition |
| 2023-2025 | Toyota | Sequoia | Capstone |
| 2023-2025 | Toyota | Sequoia | Limited |
| 2023-2025 | Toyota | Sequoia | Platinum |
| 2023-2025 | Toyota | Sequoia | SR5 |
| 2023-2025 | Toyota | Sequoia | TRD Pro |
