Viper UTV Winch - V2 Wide Spool ^{GREAT DEAL}

• IP67 Waterproof Rating
• Wireless Remote System with unique frequency
• Flush Mount Dash Switch
• Planetary metal gear train and permanent magnet motor
• Automatic brake
• ″Whisper″ quiet greasing system
• Limited Lifetime Warranty (winch) / Rope (1 year)

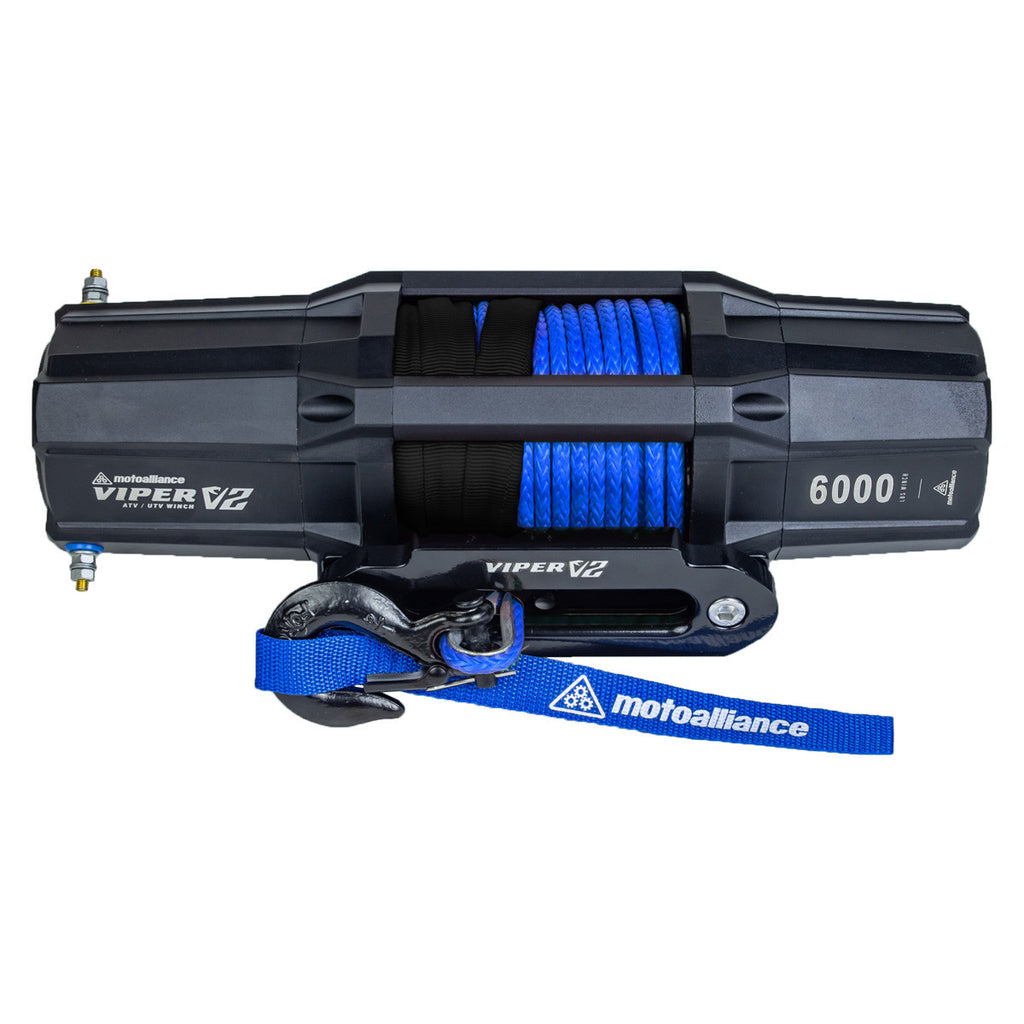

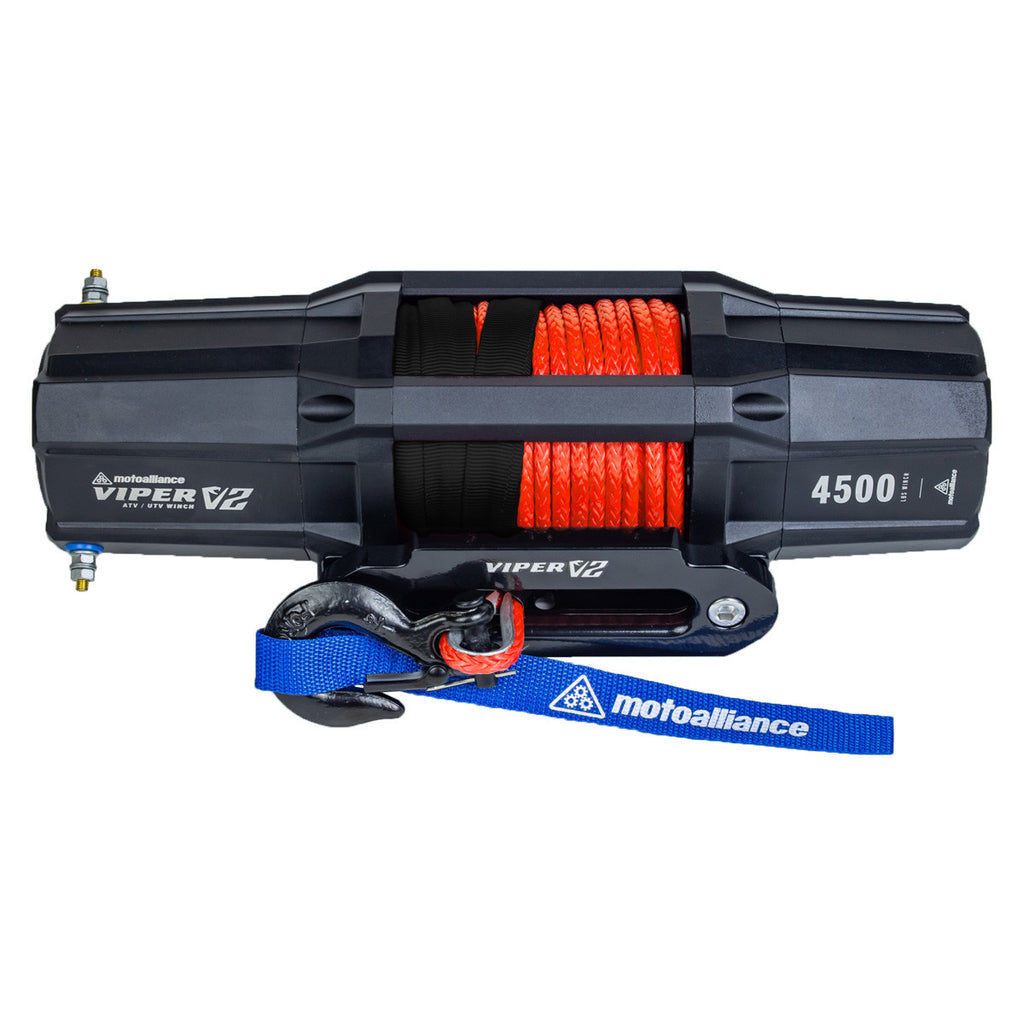

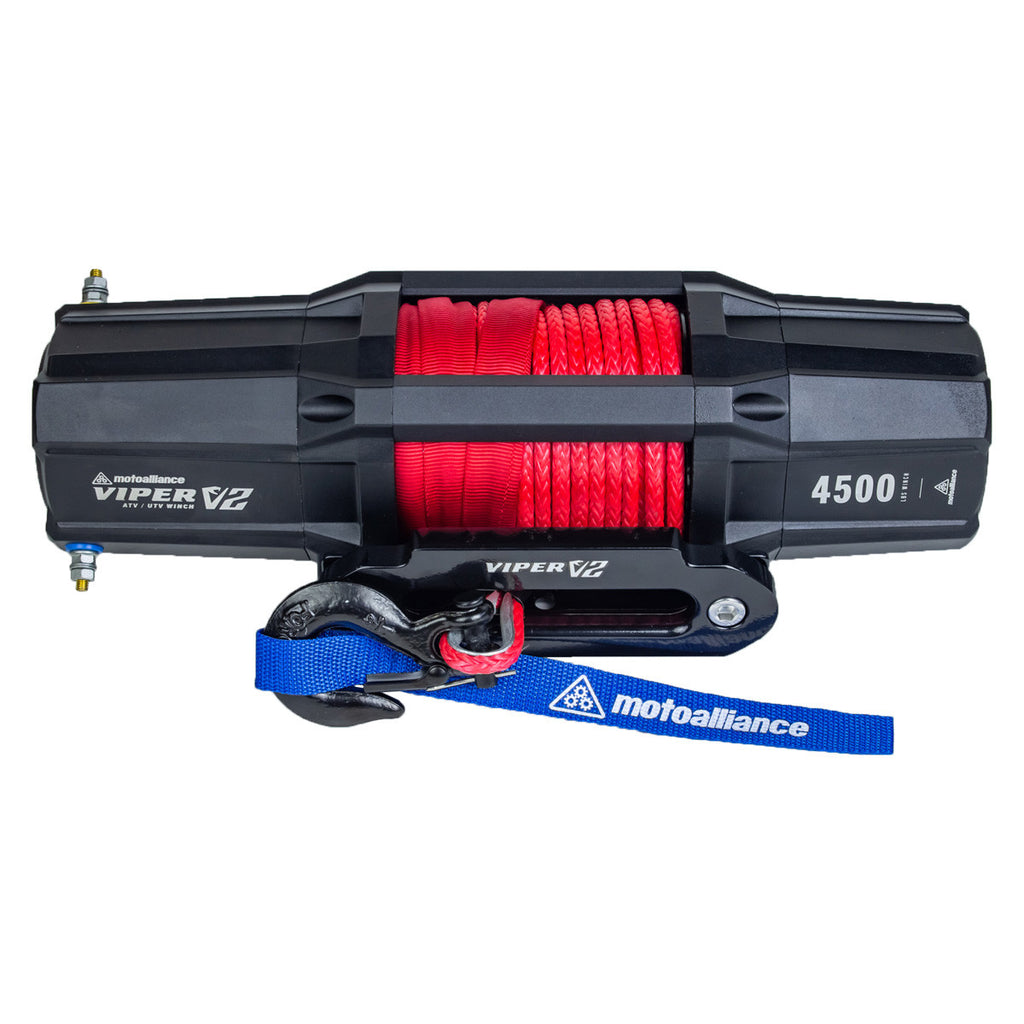

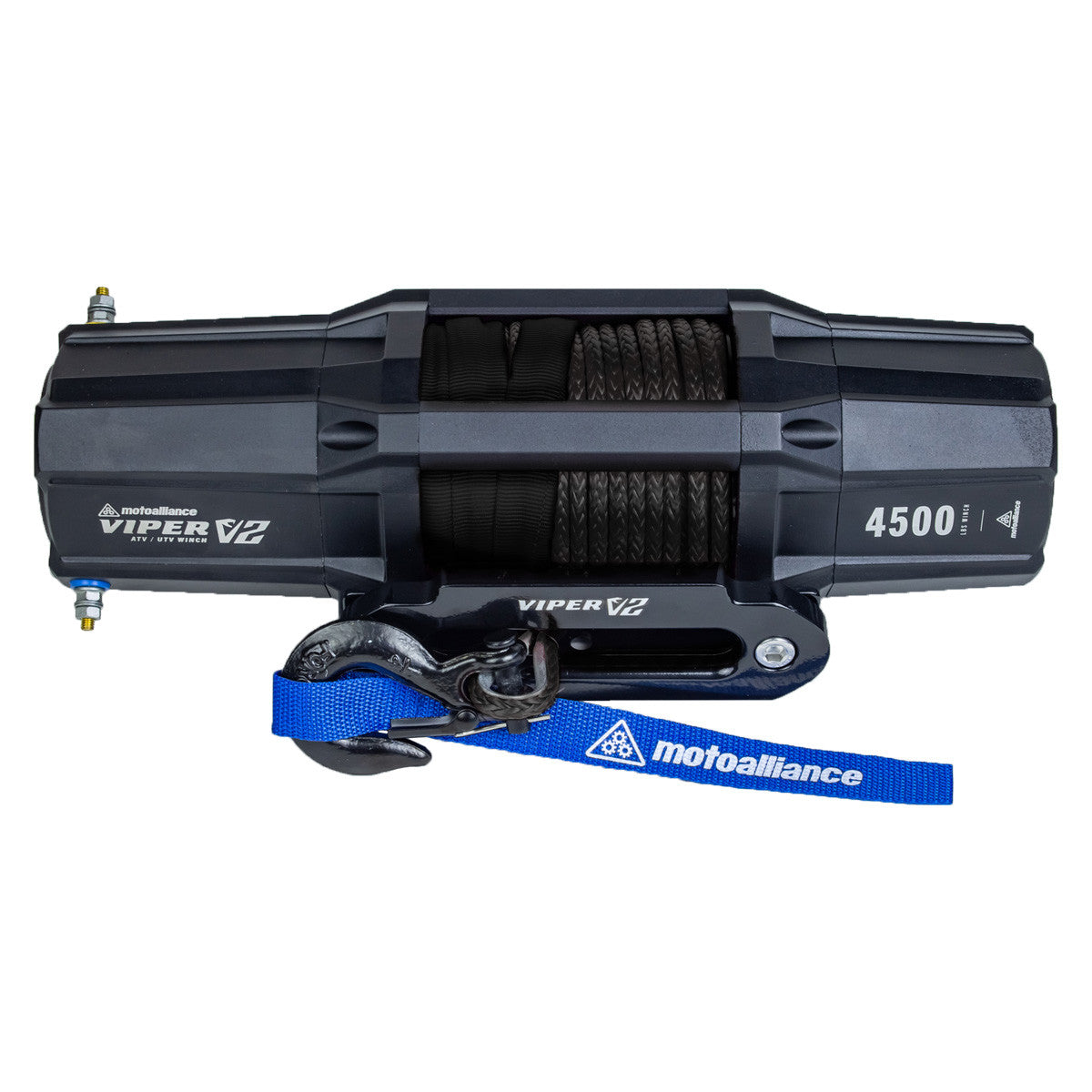

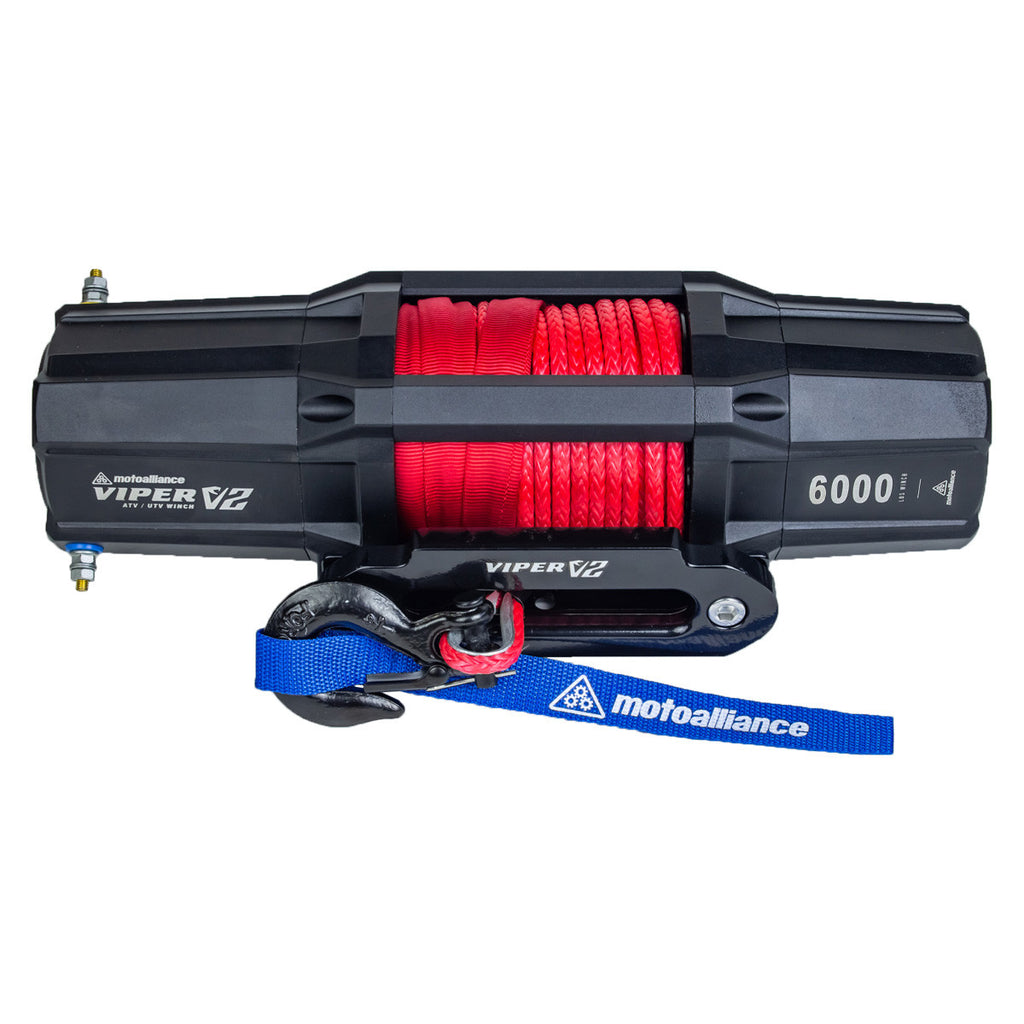

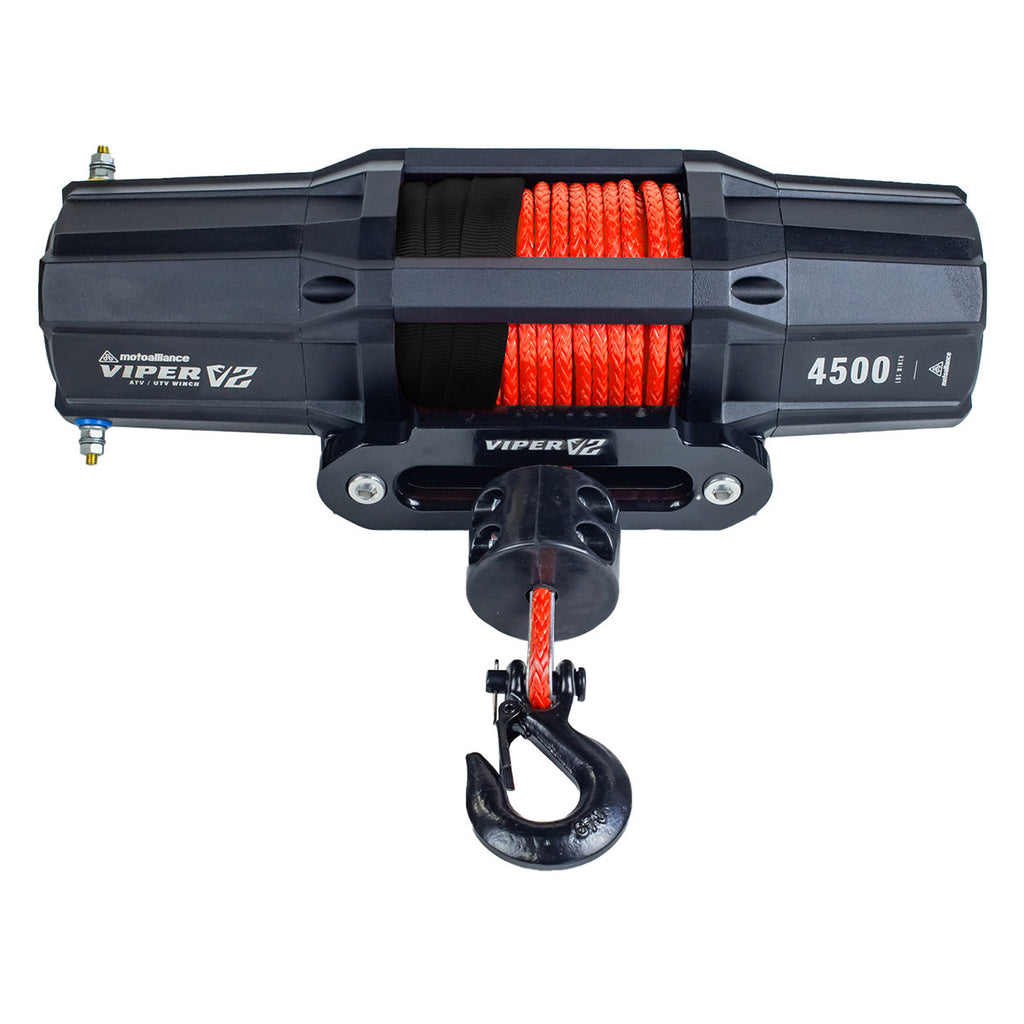

Viper V2 Wide Spool UTV Winch - a NEW GENERATION OF VIPER! The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient. Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out clevis hook to the “stealth” wiring, falls in line with the elevated design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel®-Blue synthetic rope. The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits.

FITMENT

Can-Am

• Commander
• Defender
• Maverick
• Maverick Sport
• Maverick Trail
• Maverick Turbo
• Maverick X3

INCLUDES

Kit

1. 60′ x ¼″ diameter AmSteel®-Blue Synthetic Cable (1 year warranty)
2. Aluminum Hawse Fairlead
3. Wireless Remote Switch
4. Flush Mount Dash Switch
5. Contactor & Wiring

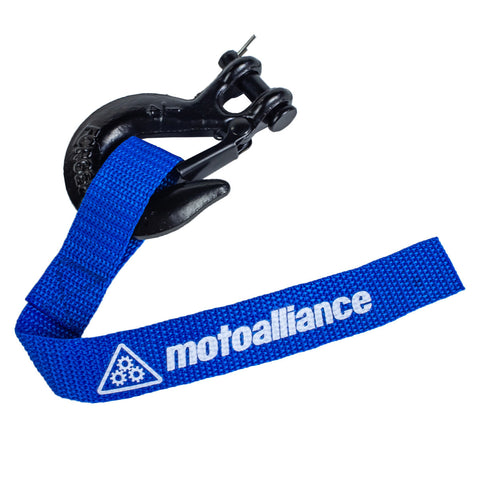

6. Black Clevis Hook
7. Rubber Line Stopper (two-piece)
8. Hand Saver Strap
9. Installation Hardware and Instructions

Specs

• Cable - AmSteel®-Blue Synthetic, 8,600lb max load rating
• Motor - 12V DC, Sealed permanent magnet
• Gearing / Gear Ratio - 3-Stage planetary/136:1
• Brake - Automatic, 100% load holding
• Clutch - Sliding Ring Gear
• Wiring - 6 gauge (English)
• Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
• Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
• Dimensions: 6.25 (L) x 4.75 (H) x 4.75 (D) inches
• Weight: 20.8 lbs

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" UTV / SxS. We have many custom mount plates designed to bolt on to your UTV / SxS.

DETAILS

Shipping

• Box Dimensions: TBD
• Weight: 30.0 lbs.

DOWNLOADS

Instructions

Installation Guide for V2 Winch

Installation Guide for V2 Wireless Remote Wiring Diagram
