PTG 4.0L M156 Supercharger System - Premier Tuning Group

PTG 4.0L M156 Supercharger System ^{GREAT DEAL}

Regular price $ 14,999.99

Vendor: Premier Tuning Group

Category: Forced Induction Systems

Part #: 006-0425-4000

Related: 795934749599

Availability: Not Stocked, Supplier Confirmation Required

Do you have an OBD tuning cable?

DESCRIPTION

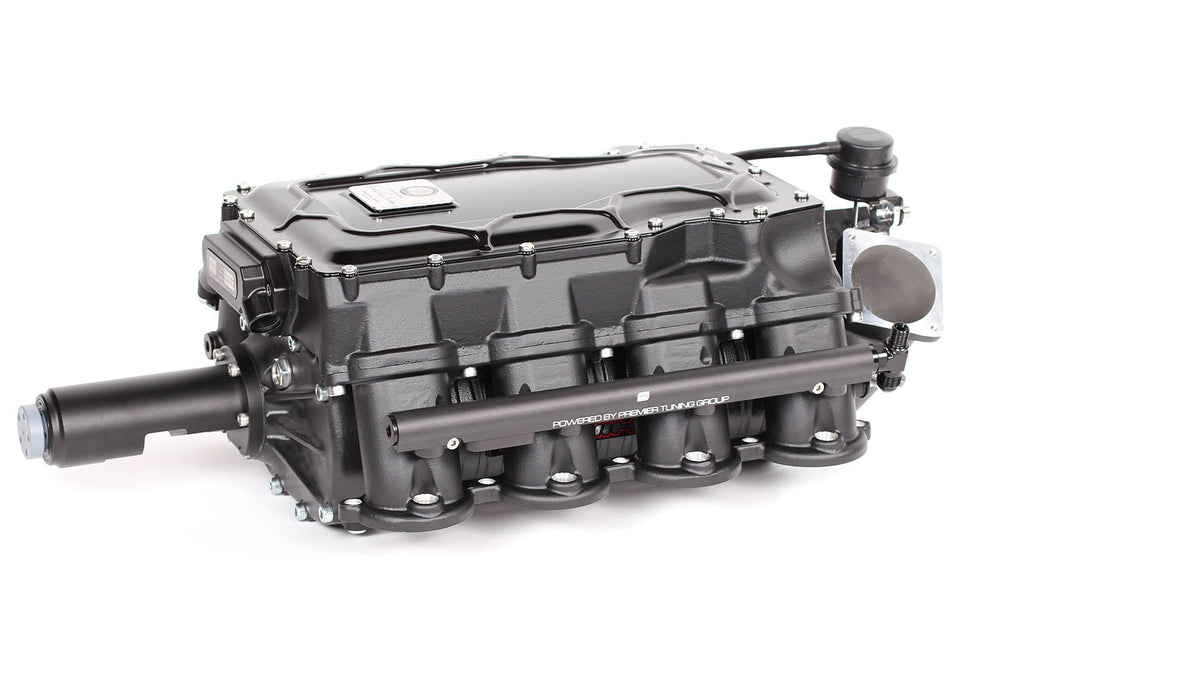

Everything was important when developing this system. Its unique design pays homage to the builders at Mercedes AMG allowing clients to install their engine plaque right where it belongs. The large compressor that is capable of power levels past 1300hp nests itself cleanly inside the valley of the M156 engine, allowing perfect fitment under the hood.

Driven by our ATI crank damper, the supercharger system runs a dedicated 8-rib belt system with unlimited variations of upper and lower pulley sizes. This provides superior reliability and vertically zero belt slip.

Heat is managed via air-to-water intercooling under the hard anodized billet aluminum supercharger lid. Large inlets and outlets allow high flow and low pressure through the system.

Large fuel rails and easy customization allow clients to run virtually any injector depending on their needs. Attention to detail on seal choice led to Ethanol safe seals and components.

The PTG 4.0L M156 Supercharger System is the true solution to a 150+ MPH 1300hp quarter mile AMG. Currently ran around 5.25S 100-200km on stock engine/ tranmission.

JUST ADDED: PTG is excited to announce that you can now include data logging and revision for your tune. With this option you can use Verstand to log your specific car's parameters and send them in to optimize your unique setup. Follow the link below to find out more.

PTG Datalog and Revision

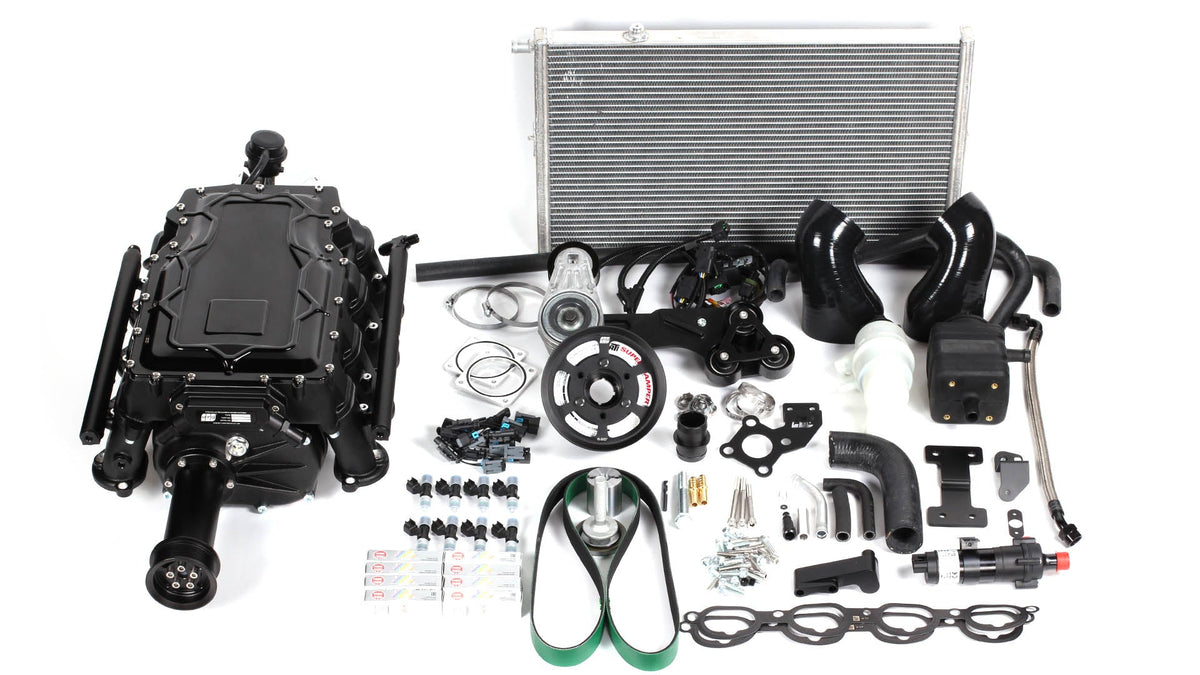

System Key Features:

PTG Cast Aluminum Upper Manifold, Symmetrical Runners, & Inlet
Whipple 4L Compressor Unit
High Efficiency Intercooler
55mm Bypass Valve

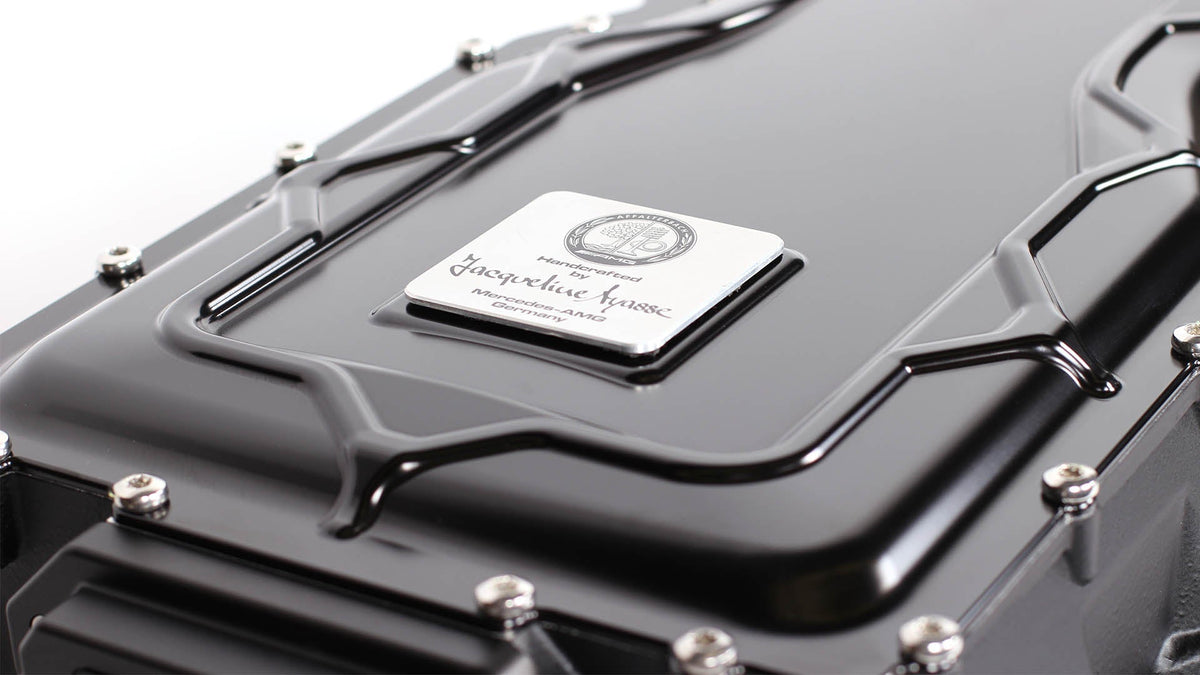

Billet Aluminum Top Lid w/ Custom Color Options
1/2 Inch Billet Fuel Rails
Billet Snout Cradle
ATI Crank Damper & 8-Rib Auxiliary Belt System
Crank Pin Kit

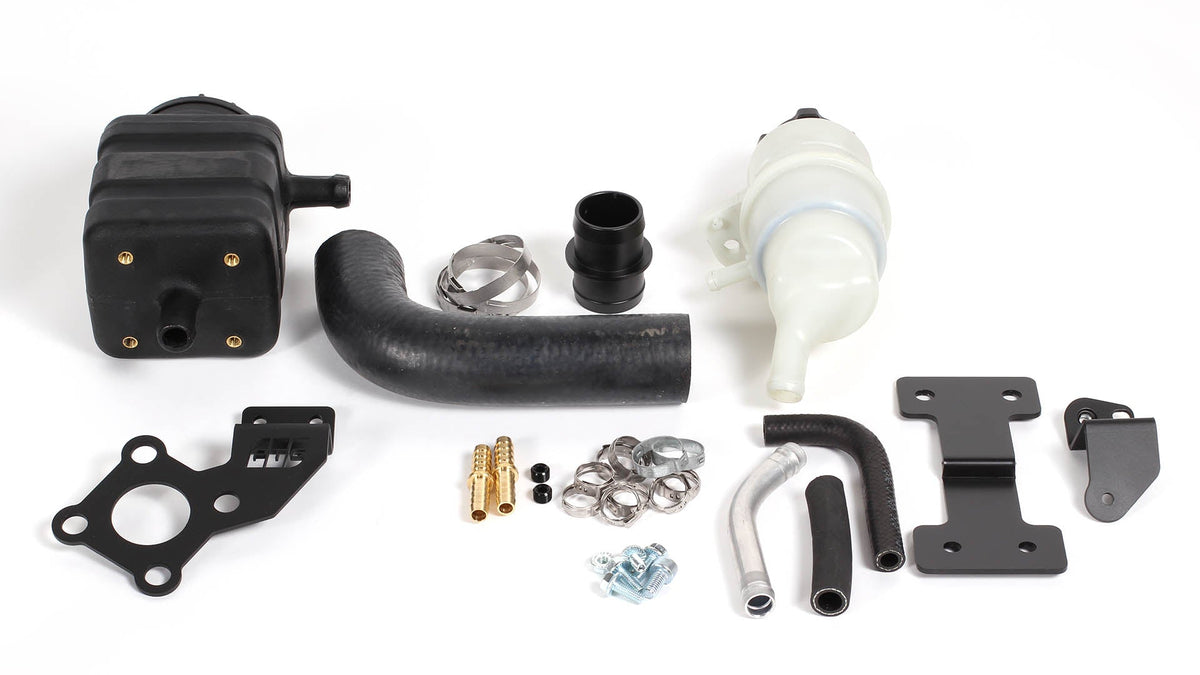

Relocated Power Steering Reservoir & Fittings
Massive Heat Exchanger & Hoses
1215cc @ 4 Bar Bosch Injectors (other sizes optional)
NGK Spark Plugs
Verstand OBD ECU Cable (TCU Optional)
