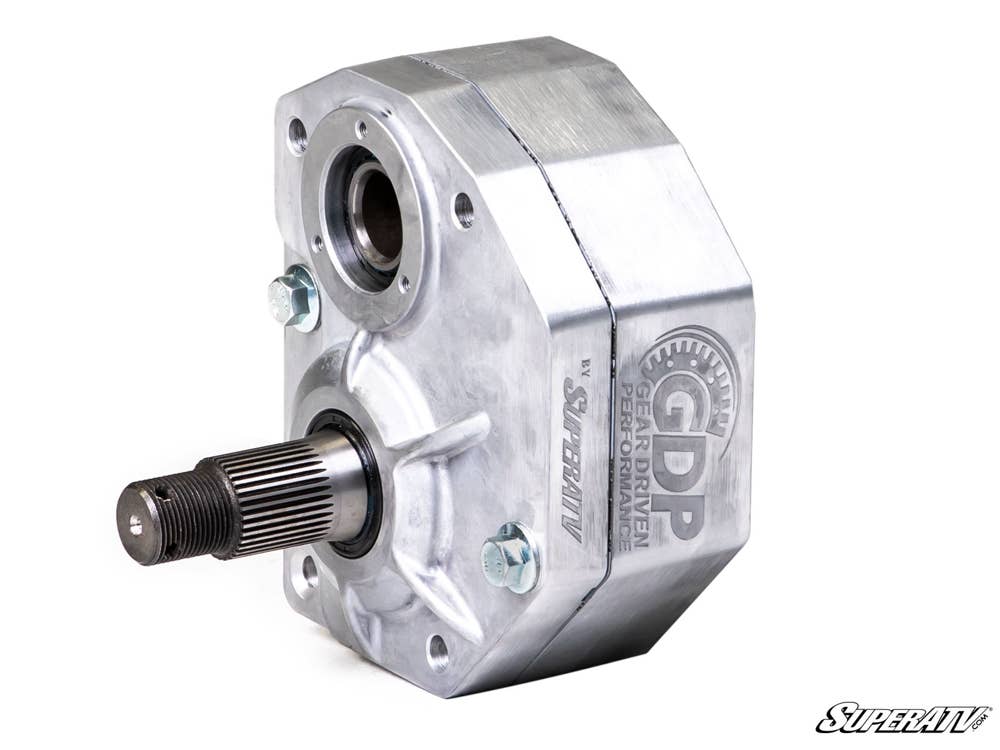

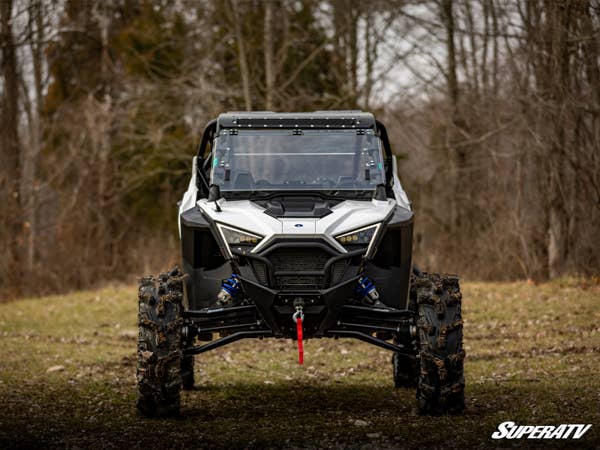

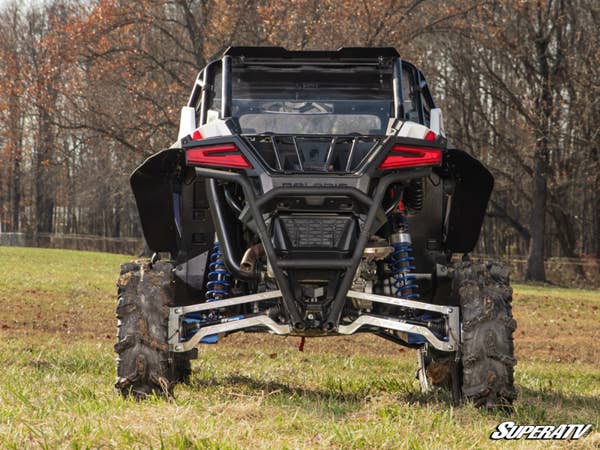

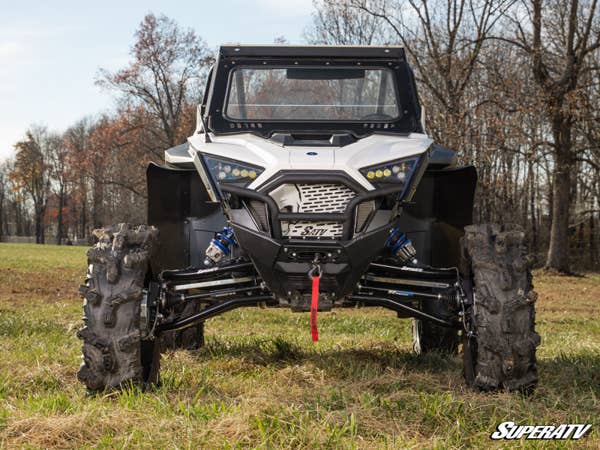

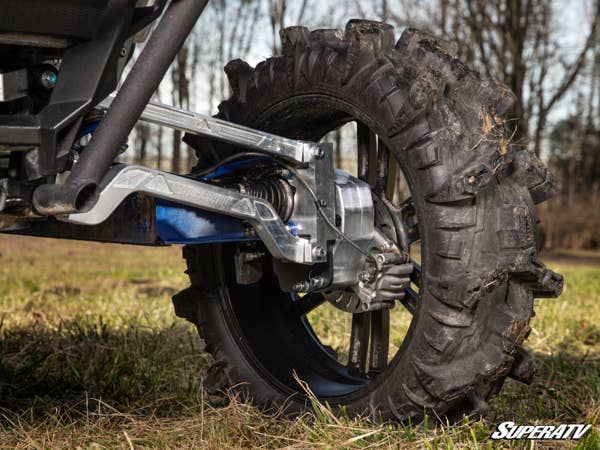

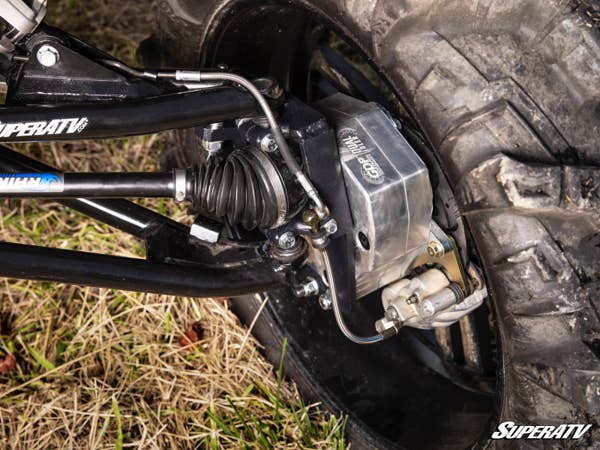

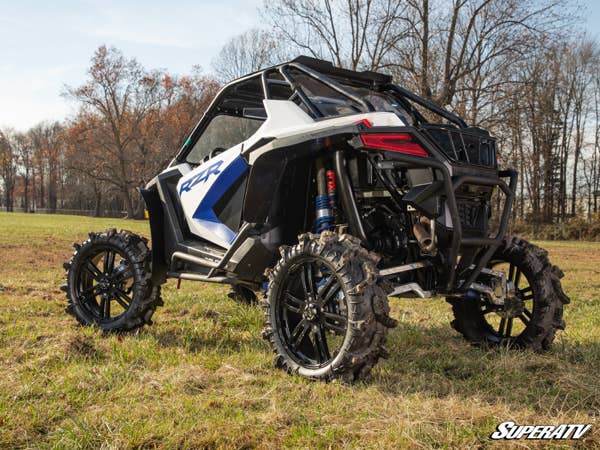

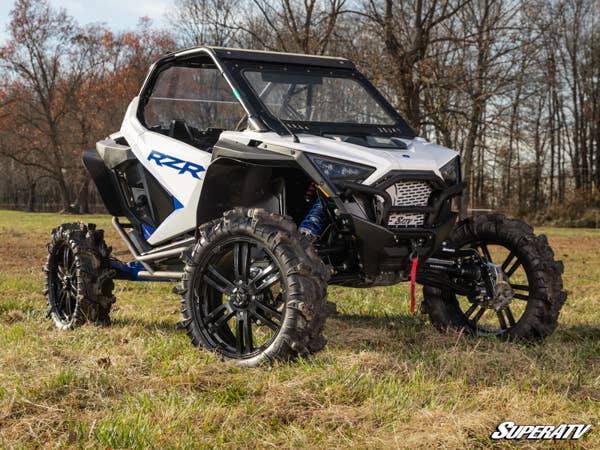

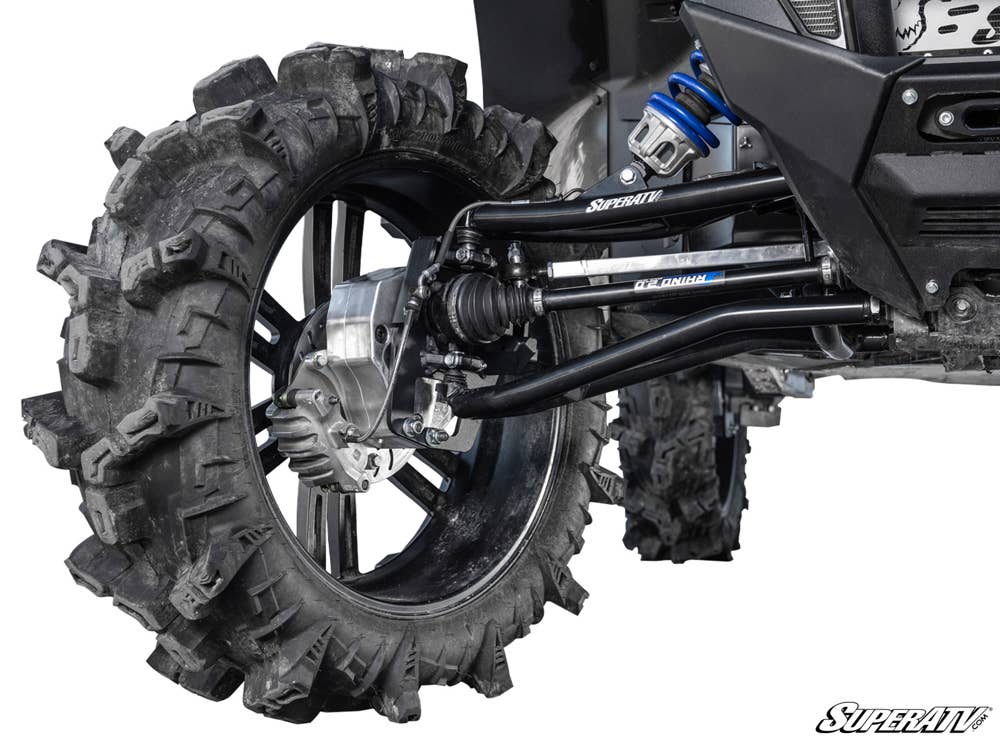

Polaris RZR PRO XP 4" Portal Gear Lift ^{GREAT DEAL}

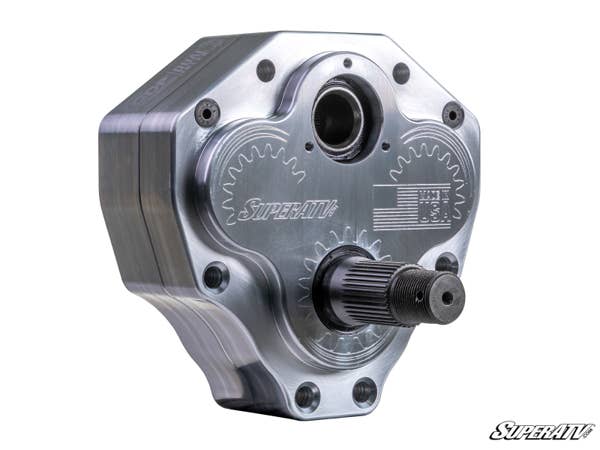

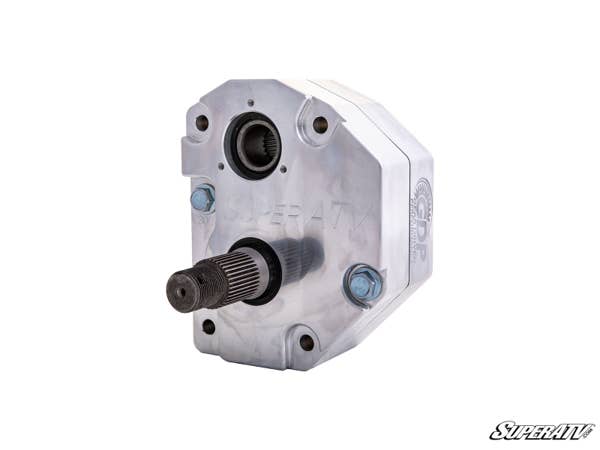

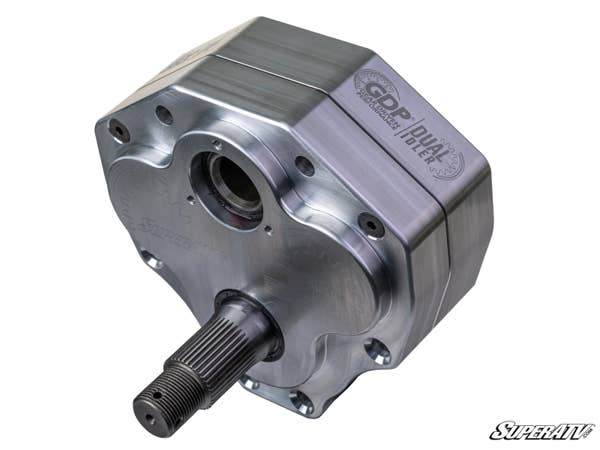

• Available with billet or cast aluminum housing
• Dual idler gear configuration maximizes strength
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use Thermo-Tork® gaskets or O-rings that don’t let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Dual idler gear configuration adds a 1” offset
• Lighter than the competition

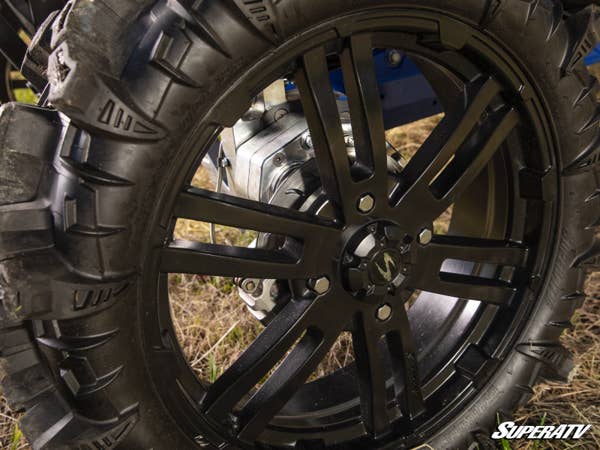

Wheel Requirements:

• 14” or larger wheel required
• Cannot exceed 5” backspacing
• Not compatible with dual beadlock wheels

Gen 3 Portals Are Geared for All
Gen 3 portals for the Polaris RZR Pro XP are geared for all, and that means we’re not putting anyone in a box. Choose a 15% or a 30% gear reduction to match your ride style. Love going big and going deep? Get 30% gear reduction for maximum torque and bigger tires. Prefer trail riding? Get a 15% gear reduction. Need ultimate strength? Opt for our dual idler configuration. The choice is yours. Ride your way wherever you want. Let GDP take you where no one else can go.

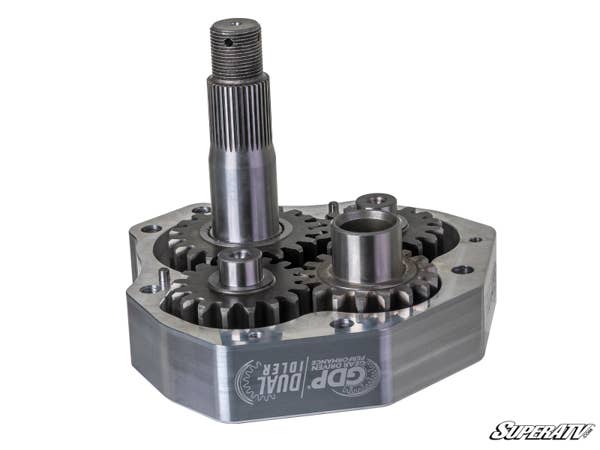

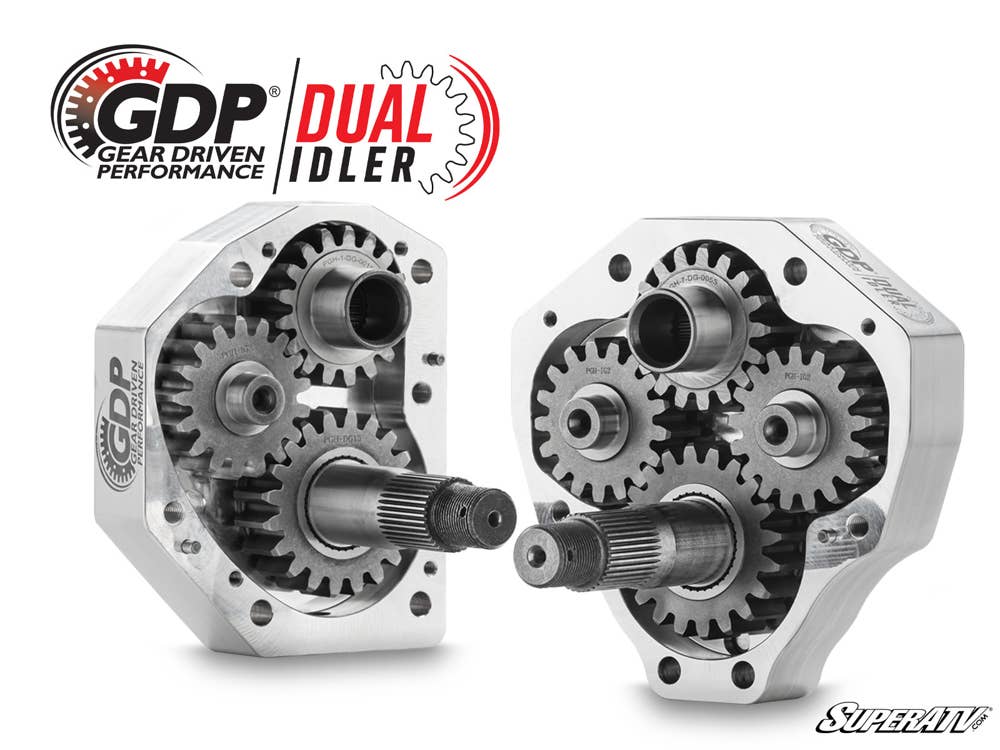

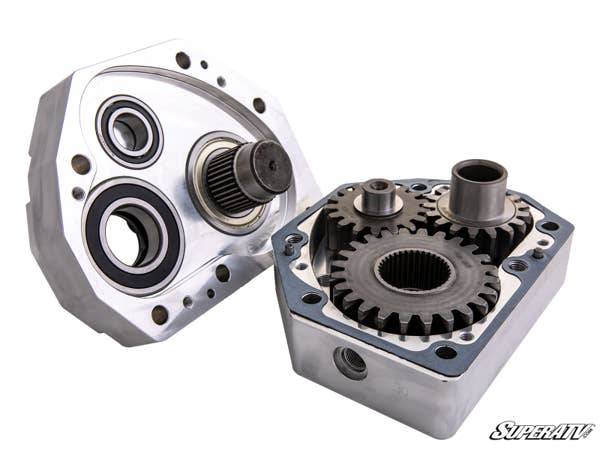

What is a Dual Idler?

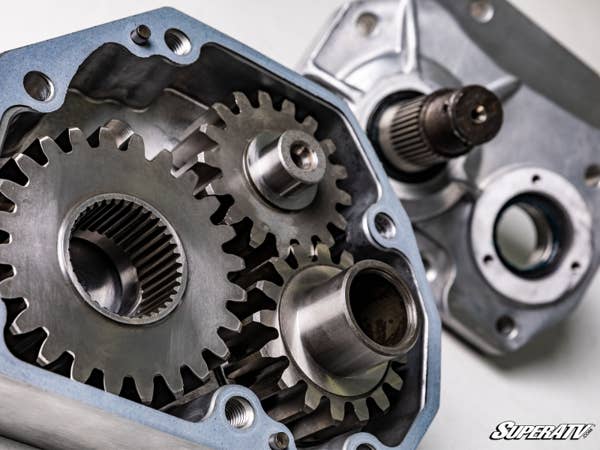

Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.

Perfect for All Kinds of Rides
Love mud? The deeper you go, the more you’ll realize how much torque a 30% portal gear reduction really gives you. Plus that extra ground clearance will keep you from getting swamped. Portals plus mud just makes sense. For trails, desert, and dunes, check out our 15% gear reduction that maintains a higher top speed while still giving you punchy torque.

A Gear Reduction That Protects Your Drivetrain
Portals have their gear reduction right in the hub. That makes this gear reduction reduce the stress on your axles, differential, Prop shaft, and transmission. You can ride harder than stock and cause less wear. It’s a win-win, and a recipe for fun.

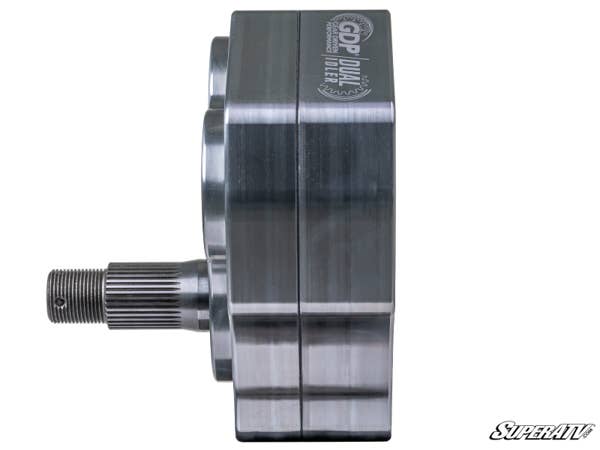

Stronger Housings by Design
You think you can find better housings that GDP housings? Think again. Our housings are stronger by design. We know what makes a housing break and why. That’s why whether you choose cast or USA-made 6061 billet aluminum with a dead sexy CNC-machined finish, you’re getting a kick-ass housing with unmatched strength and reliability. Plus, they’re supported by our unstoppable backing plates made with an advanced steel alloy.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced Thermo-Tork® Gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Complete the Package with a Frame Stiffener
Portals and monster tires are fun, but they can place additional stress on your machine’s frame. To make your suspension bulletproof, don’t forget to add a SuperATV Frame Stiffener when you check out!

Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

4" Portal Gear Lift Includes

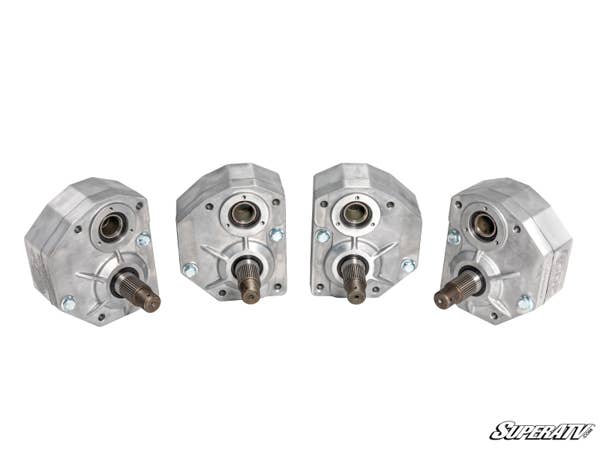

(4) Assembled portal hub boxes complete w/ 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors w/ lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(4) Caliper mounting plate shims (dual idler configuration only)
(4) Caliper adapter plates
(2) Steel steering arms
(2) Aluminum hub adapters
Extended brake lines
Steering stop brackets (single idler configuration only)
All required hardware including recessed castle nut socket
Frame stiffener (optional)

FITMENT

• Polaris RZR PRO XP : 2020+
• Polaris RZR PRO XP 4 : 2020+

NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.

INCLUDES

Item

DETAILS

Limited Lifetime Warranty

SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.

Procedures for obtaining warranty service:

Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.

If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.

Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.

If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.

Replacement bearings, seals and gaskets can be found at www.SuperATV.com.

Thank you for your business!

DOWNLOADS

Instructions

Instructions - FS-K-KRX

Instructions - FS-K-KRX
