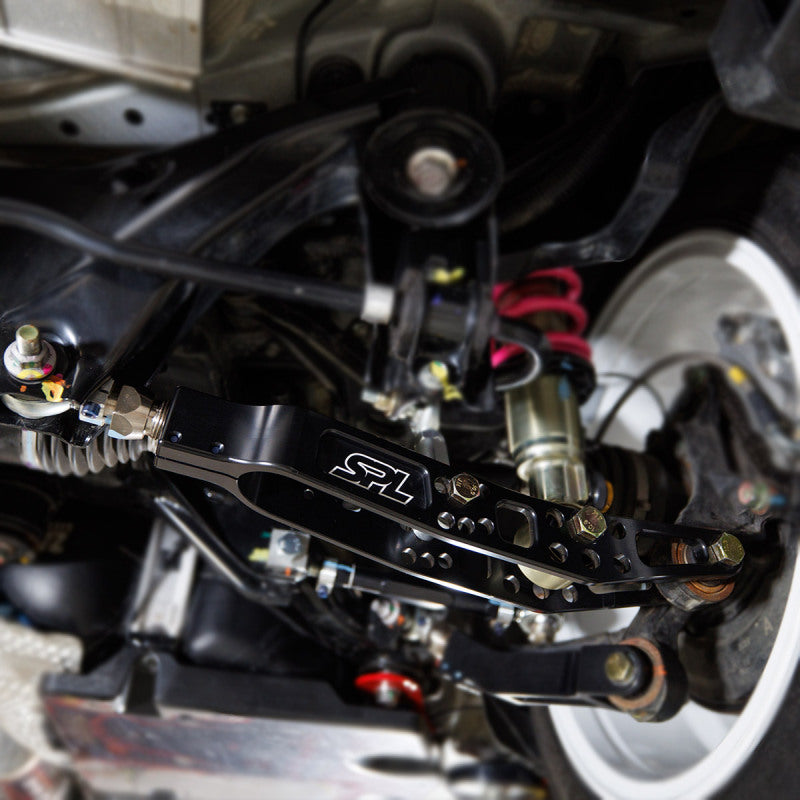

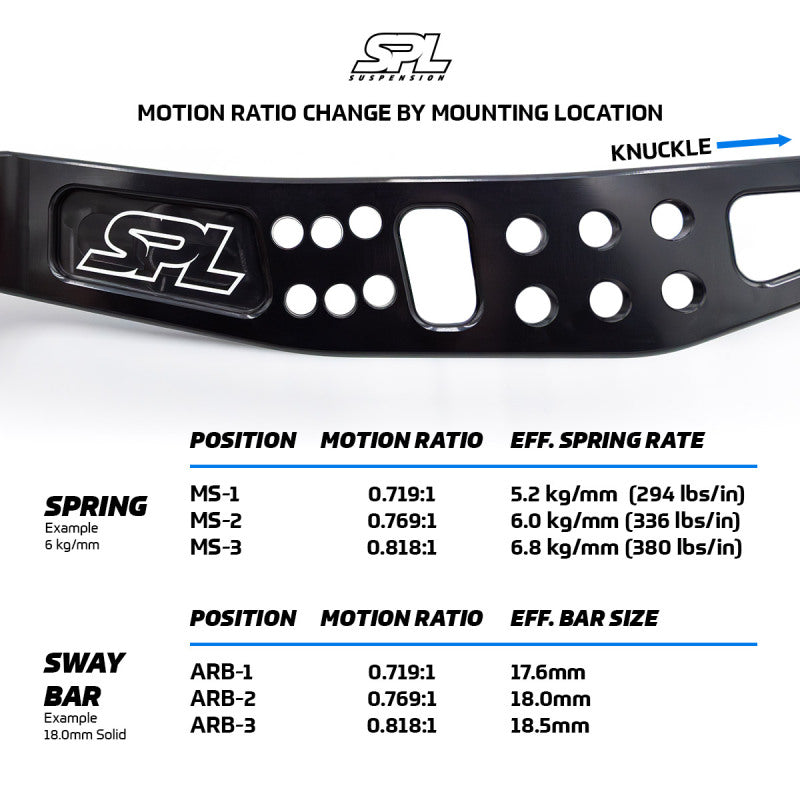

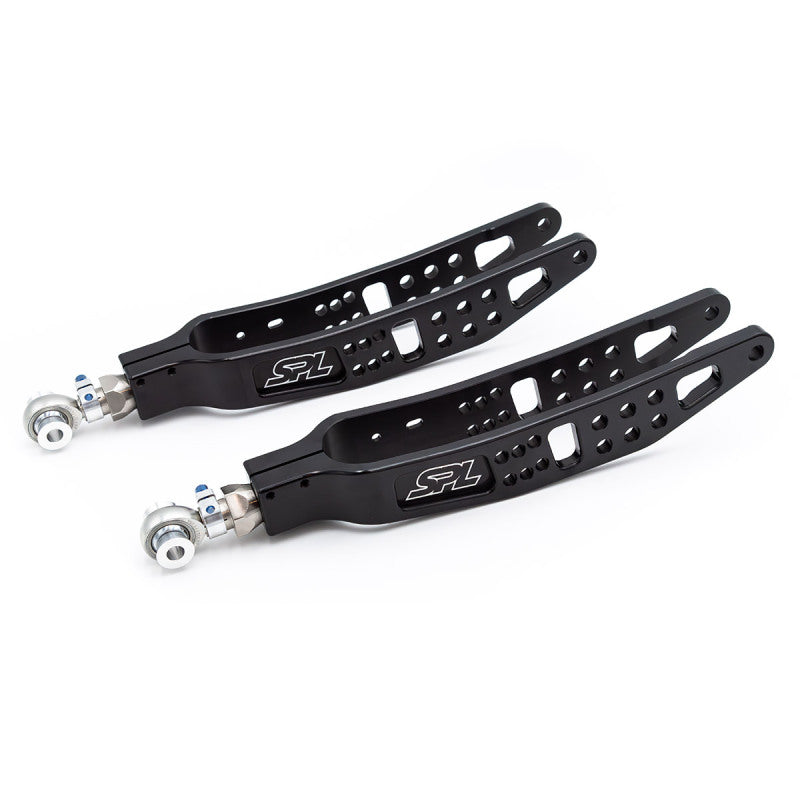

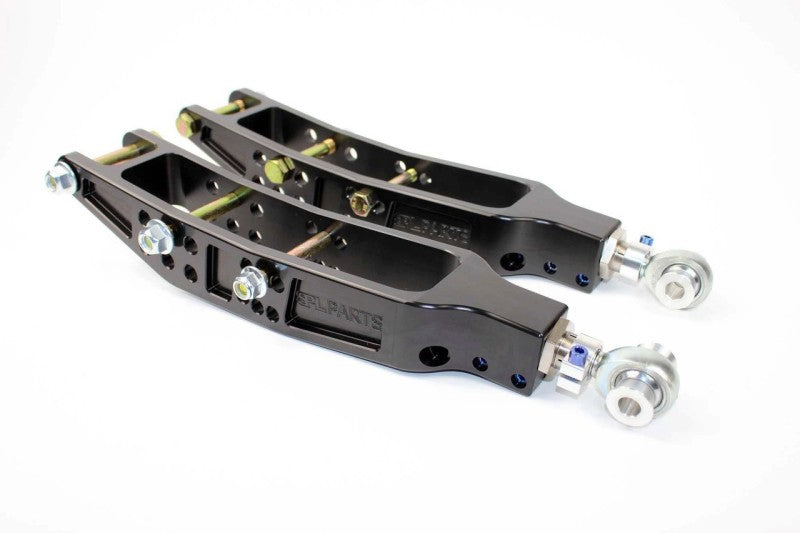

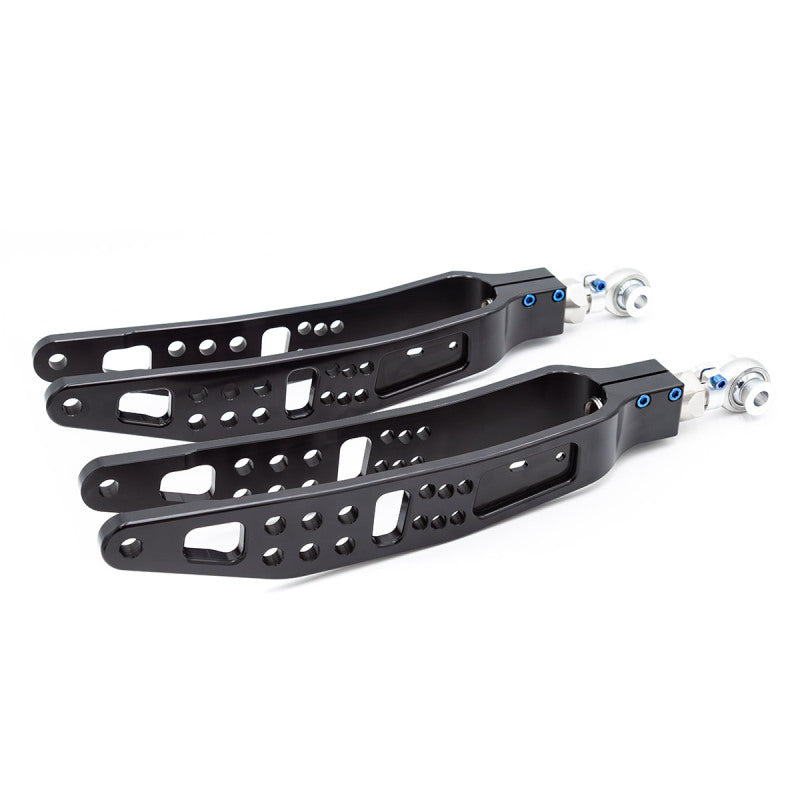

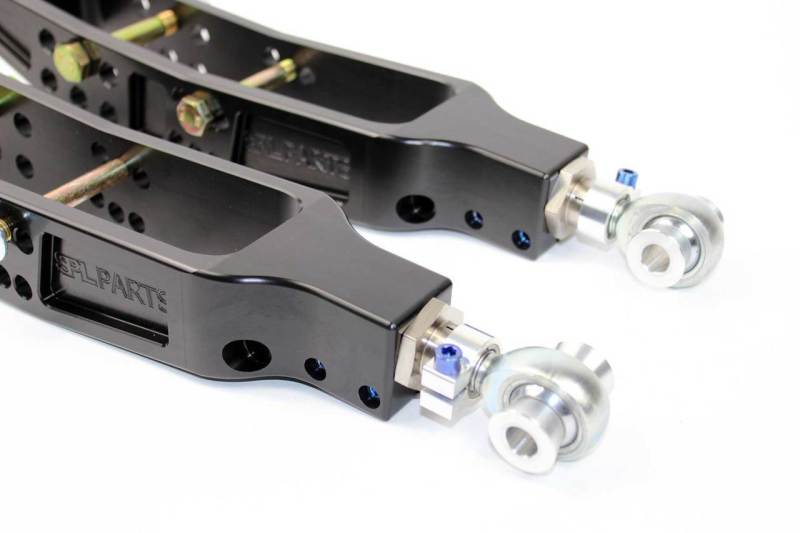

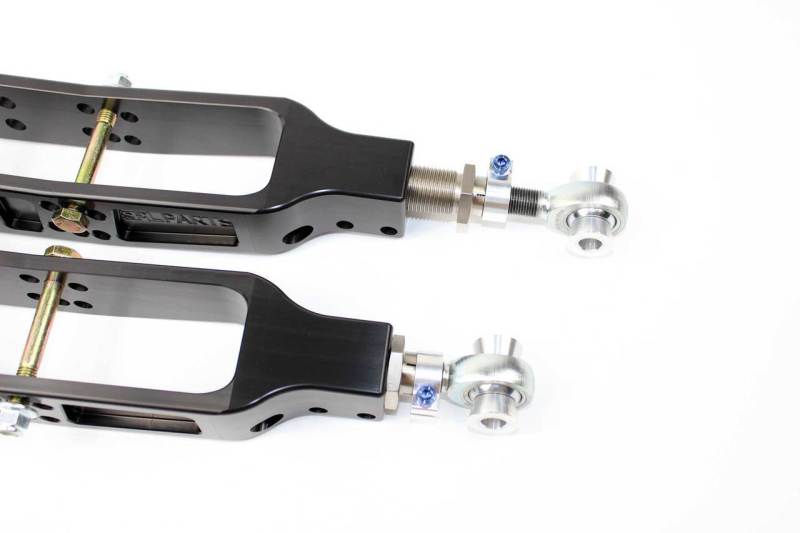

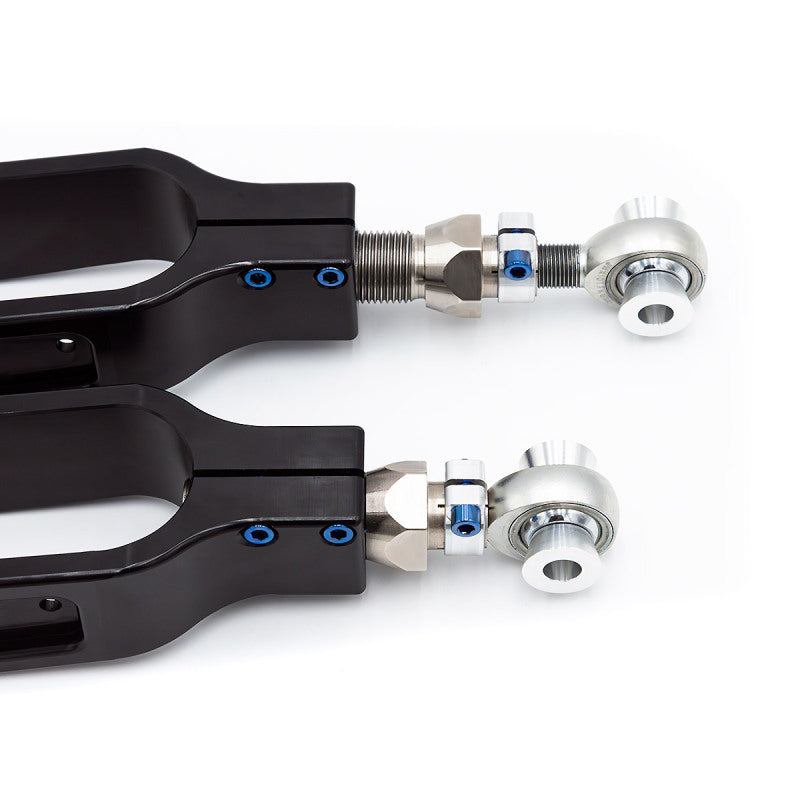

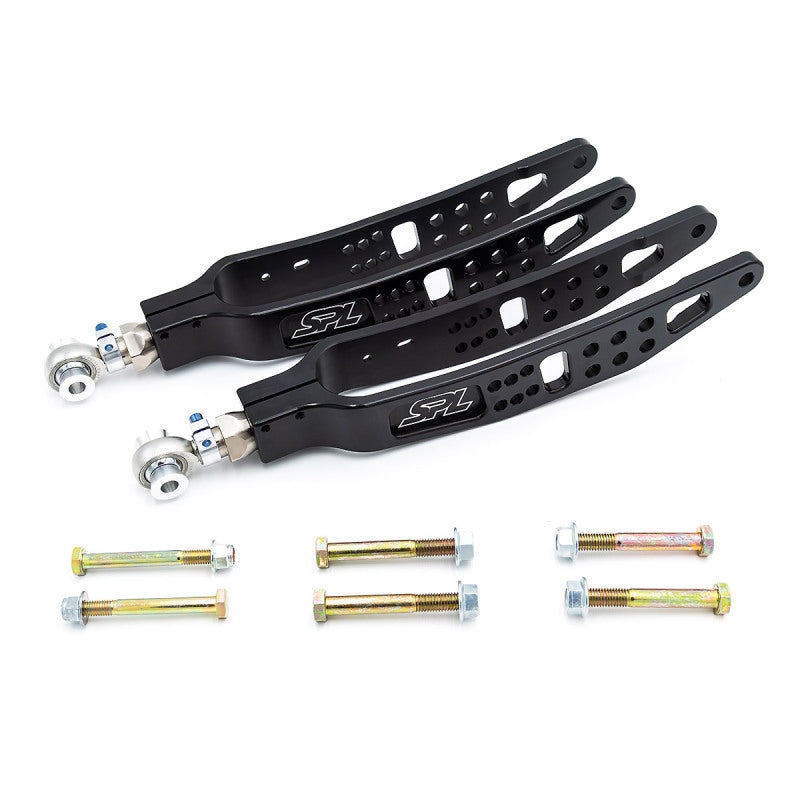

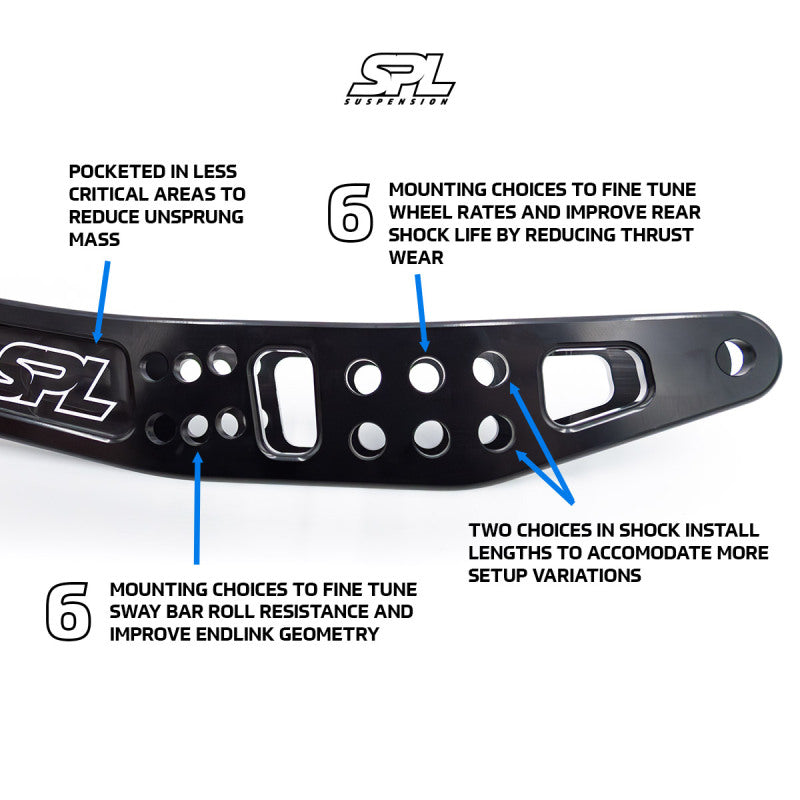

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.Adjustable Motion RatiosThe three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).Unrivaled Adjustability RangeThe large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.BenefitsLarge Range of Camber and Motion Ratio AdjustabilityLightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)Eliminates Camber Loss to Bushing DeflectionImproves Suspension Response and Driving FeelEasier, On-Car Adjustment + No Jam NutsSelf-Cleaning, US Made, PTFE-Lined FK BearingsMaterials6061-T6 Aluminum Arms (Anodized Black)6061-T6 Aluminum Spacers and 360º Clamps4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 2013-2016 |
Scion |
FR-S |
Base |
| 2013-2020,2025 |
Subaru |
BRZ |
Limited |
| 2013-2019,2025 |
Subaru |
BRZ |
Premium |
| 2015 |
Subaru |
BRZ |
Series.Blue |
| 2019 |
Subaru |
BRZ |
Series.Gray |
| 2016 |
Subaru |
BRZ |
Series.HyperBlue |
| 2017 |
Subaru |
BRZ |
Series.Yellow |
| 2018,2020,2025 |
Subaru |
BRZ |
TS |
| 2008-2014 |
Subaru |
Impreza |
WRX |
| 2008-2014 |
Subaru |
Impreza |
WRX STI |
| 2015-2024 |
Subaru |
WRX |
Base |
| 2022-2025 |
Subaru |
WRX |
GT |
| 2015-2025 |
Subaru |
WRX |
Limited |
| 2015-2025 |
Subaru |
WRX |
Premium |
| 2024 |
Subaru |
WRX |
TR |
| 2025 |
Subaru |
WRX |
TS |
| 2015-2021 |
Subaru |
WRX STI |
Base |
| 2015 |
Subaru |
WRX STI |
Launch Edition |
| 2015-2021 |
Subaru |
WRX STI |
Limited |
| 2019 |
Subaru |
WRX STI |
S209 |
| 2016 |
Subaru |
WRX STI |
Series.HyperBlue |
| 2018 |
Subaru |
WRX STI |
Type RA |
| 2017-2020 |
Toyota |
86 |
Base |
| 2018-2020 |
Toyota |
86 |
GT |
| 2020 |
Toyota |
86 |
Hakone Edition |
| 2017 |
Toyota |
86 |
Special Edition |
| 2019 |
Toyota |
86 |
TRD Special Edition |
| 2023 |
Toyota |
GR86 |
10th Anniversary Special Edition |
| 2022-2026 |
Toyota |
GR86 |
Base |
| 2025 |
Toyota |
GR86 |
Hakone Edition |
| 2022-2026 |
Toyota |
GR86 |
Premium |
| 2024 |
Toyota |
GR86 |
TRUENO Edition |
| 2026 |
Toyota |
GR86 |
Yuzu Edition |
