Cool, quiet, precision ground gears made from 9310 alloy billet steel
Increases width by 4 in. per side (8 in. total)
1.5 in. diameter 4340 hardened steel drive shaft
No Leak Bearings and Seals
Universal Hub Fits All Major bolt patterns
Comes complete with all hardware, backing plates, brakes lines and instructions
14” or larger wheel required
Wheels cannot exceed 5” backspacing
Not compatible with dual beadlock wheels

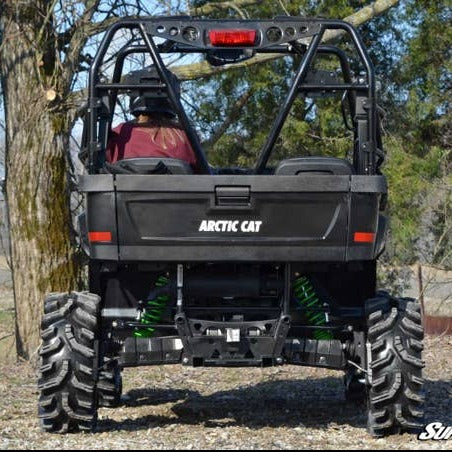

Gen 3 Portals are Geared for All SuperATV’s GDP 4” Portal Gear Lift for the Arctic Cat Prowler is Geared for All. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize to fit your style.
Perfect for Mud Move up to a 30% gear reduction for the ultimate mudding experience. That boost in torque means your tires keep turning through the thickest peanut butter mud. With 4” of lift, you have room for bigger tires which means more grip and more rip. It’s the Prowler Party Wagon. When your done with the mud, a 30% gear reduction can get you through rocks, roads, and trails just as easily.
Perfect for Rocks Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.
Perfect for Trails Get 4” portals and a 15% gear reduction on your machine and take on the trail less traveled. Bumps, rocks, ditches, and logs are no match for your boosted torque, and you can still fly when the trail is easy. It brings out your UTV’s true power.
Perfect for Work With 4” portals and a 15% gear reduction on your Prowler, you’ll have clearance to get over the ditches and debris around your property and you’ll have the gear reduction to push through ruts and ditches easily all while towing a trailer full of tools. Plus, you’ll still have enough speed to cruise down the road.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Better Gears Our gears are precision ground gears are made with billet 9310 steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road. With fully sealed cast or billet aluminum boxes, nothing gets in or out, so your gears stay pristine for years.
Stronger Housings by Design Try as you might, you won’t find housings stronger than what we use on our GDP portals. Our housings are smarter, stronger, and more reliable by design. So whether you choose cast or USA-made and CNC-machined 6061 billet aluminum, you’re getting housings that offer unmatched strength and dependability. We’ve got the experience and the riders on the trail to back it up.
Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets and Seals Whether you go with cast or billet, both housings use:
Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
A sealed input gear and double-lipped output seal
100% sealing coverage throughout so you can forget about oil leaks
Top-Rated Customer Service Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.
Arctic Cat Prowler 500 HD : 2014-2015
Arctic Cat Prowler 550 XT : 2010-2015
Arctic Cat Prowler 700 XTX : 2010-2014
Arctic Cat Prowler 700 HDX : 2012-2014
Arctic Cat Prowler 700 HDX Crew : 2017
Arctic Cat Prowler 700 XT : 2015-2017
Arctic Cat Prowler 1000 XT : 2015-2017
Arctic Cat Prowler 1000 XTZ : 2009-2014
Arctic Cat Prowler 1000 H2 : 2011
Arctic Cat Prowler 1000 XTZ : 2009-2014
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
Limited Lifetime Warranty
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.
SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Procedures for obtaining warranty service:
Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.
If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.
Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.
If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.
Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
