- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use Thermo-Tork® gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Weighs 224 lb. total, which is 25+ lb. lighter than the competition
Wheel Requirements:
- 18” or larger wheel required
- Wheels cannot exceed 5” backspacing
Gen 3 Portals Are Geared for All
Gen 3 GDP Portal Gear Lifts are designed to let you ride the way you want. You can choose a 30% or a 45% gear reduction to match your ride style and torque-boosting needs. So get lifted, get bigger tires, and ride wherever you want. GDP will make your trail, mud, dune, and mountain riding better.
GDP—the Most Trusted Name in Portals
If you’re looking for a second opinion on portals, try asking one of the thousands of riders that already use them every weekend. More riders roll on GDP portals than any other portal system. They’re built with unmatched experience and are the most trail-proven portals you can get.
Perfect for Mud
The sleek design of the Maverick is perfect for diving into mud. If you want to get out of that mud, 6” portals with a gear reduction are what you need. The boosted torque from the gear reduction lets you push through anything with monster tires and that extra ground clearance keeps you from getting swamped. There’s no better way to get muddy.
A Gear Reduction That Protects Your Drivetrain
Portals put the gear reduction right in the hub, which means it puts less stress on your axles, differential, prop shaft, and transmission than a stock setup. With GDP, you can get wild without wrecking your stuff.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Unmatched Gear Material
Our top-of-the-line gears take these portals from standard to premium. They’re made from precision-ground 9310 alloy steel so they mesh perfectly each and every time. That means you can ride hard and wear less. And that means more fun.
Stronger Housings by Design
The housings hold it all together, so we make them as strong as possible. We know what makes a housing break and why, and we’ve got the real-world ride time to know how to make them better. Whether you decide to roll with cast or our USA-made billet aluminum housings, you’re getting the strongest housings you can get.
- Our housings are reinforced in all the right places
- They’re built with better oil flow and gearing forces in mind
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
The Strongest Backing Plates You Can Get
We know our backing plates are the strongest you can get because no one else is using steel as strong as ours. It’s 5/16” thick advanced steel alloy plating that’s even stronger than chromoly steel. It’s designed to outlast your machine, and it won’t fold up no matter how you ride. We didn’t compromise, and neither should you.
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:
- Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
Bearings That Rock
All the strength of GDP would count for nothing if we didn’t have awesome bearings to keep everything running smooth. We use a double-angular contact bearing on the output shaft because it’s built to handle huge loads and hits (like when you smash into that stump) without breaking or wearing. Plus, we use roller bearings that are significantly stronger than standard bearings to hold the idler. They’re built to withstand the huge internal forces of the portal box. Every last detail is built for battle.
Universal Hubs and Slotted Rotors
Our precision-ground, stainless steel rotors are slotted to stay cool so you get the braking power you need when you need it. Our universal hubs are convenient and practical with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs—you can fit wheels built for just about any side-by-side on these hubs. That means that set your buddy’s selling is probably gonna fit. We invented the tapered output shaft that our hubs attach to. It provides a more secure lock that won’t wobble or wear over time.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
| 6” Portal Gear Lift Includes: |

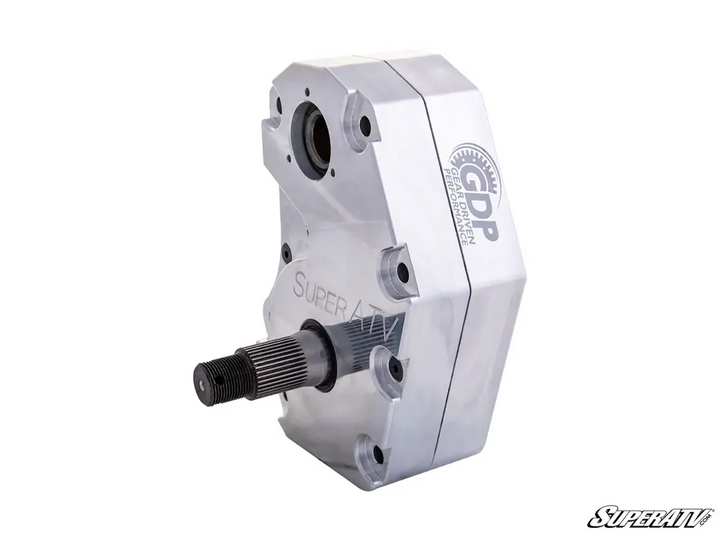

| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings |
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs |
| (4) Specialized steel alloy backing plates |
| (4) Steel caliper mounting plates |
| (2) Caliper adapter plates |
| (2) Steel steering arms |
| Extended brake lines |
| All required hardware, including recessed castle nut socket |
| Can-Am Maverick Portal Gear Reduction Recommendations |
| Tire Size |
Required Suspension Setup with 6" Portals |
Recommended 6" Portal Gear Reduction |
| Up to 36" |
Stock |
30% |
| 37" to 40" |
3" Lift Kit |
30% |
| 41" to 46" |
6" Lift Kit |
30% |
| Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information. |
FITMENT
SuperATV Part Number 7-32-101 Will Fit:
- Can-Am Maverick Standard : 2013-2015
- Can-Am Maverick X RS : 2013-2015
- Can-Am Maverick X RS-DPS : 2014-2015
- Can-Am Maverick X XC : 2014-2015
SuperATV Part Number 7-32-103 Will Fit:
- Can-Am Maverick Standard : 2016+
- Can-Am Maverick DPS : 2016+
- Can-Am Maverick XC : 2016+
- Can-Am Maverick X XC : 2016+
SuperATV Part Number 7-32-104 Will Fit:
- Can-Am Maverick Max Standard : 2014-2015
- Can-Am Maverick Max XRS : 2014-2015
- Can-Am Maverick Max XRS-DPS : 2014-2015
SuperATV Part Number 7-32-102 Will Fit:
- Can-Am Maverick X MR : 2014-2015
SuperATV Part Number 7-51-101 Will Fit:
- Can-Am Maverick Turbo : 2016-2017
- Can-Am Maverick X DS : 2015-2016
- Can-Am Maverick X DS Turbo : 2015-2016
- Can-Am Maverick X MR : 2016+
- Can-Am Maverick X RS Turbo : 2016
SuperATV Part Number 7-51-102 Will Fit:
- Can-Am Maverick MAX Turbo : 2016-2017
- Can-Am Maverick MAX X DS : 2015-2017
- Can-Am Maverick MAX X DS Turbo : 2015-2017
- Can-Am Maverick MAX DPS : 2016+
- Can-Am Maverick MAX X RS Turbo : 2016-2017
- Can-Am Maverick MAX X MR : 2017+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
INCLUDES
Item
DETAILS
TERMS OF WARRANTY
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Procedures for obtaining warranty service:
Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.
If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.
Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.
If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.
Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
Thank you for your business!
