Cool, quiet, precision ground gears made from 9310 alloy billet steel
Increases width by 4 in. per side (8 in. total)
1.5 in. diameter 4340 hardened steel drive shaft
Housings use Thermo-Tork® gaskets or O-rings that don’t let anything through
Universal hub fits all major bolt pattern
Gear reduction reduces stress on your drivetrain
Dual idler gear configuration adds a 1” offset
Lighter than the competition
14” or larger wheel required
Wheels cannot exceed 4” backspacing
Not compatible with dual beadlock wheels
Max Out Your Power and Performance

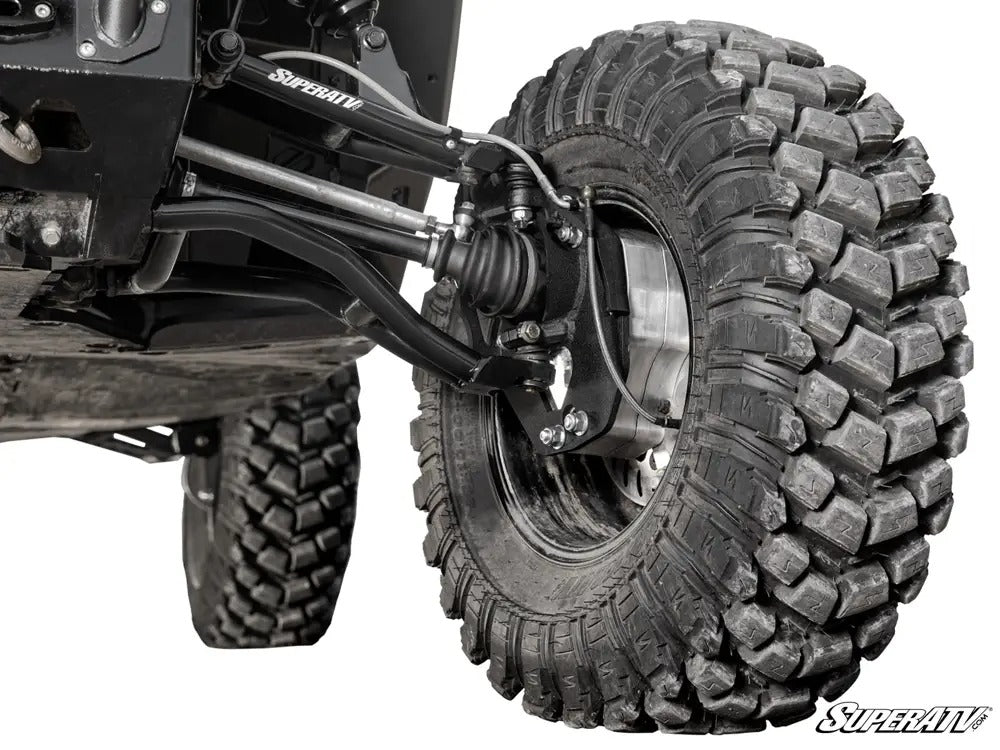

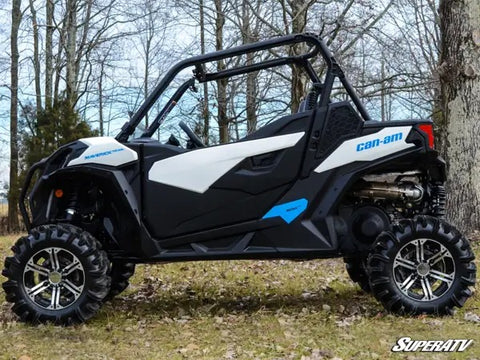

Want to know what it’s really like to ride your Maverick? Install SuperATV’s 4” Portal Gear Lift and you’ll have an experience you didn’t think was possible. With tons of ground clearance for bigger tires and your choice of a 15% or 30% gear reduction, you’ll have a whole new machine. Plus, you can amp up the strength with dual idler gears.

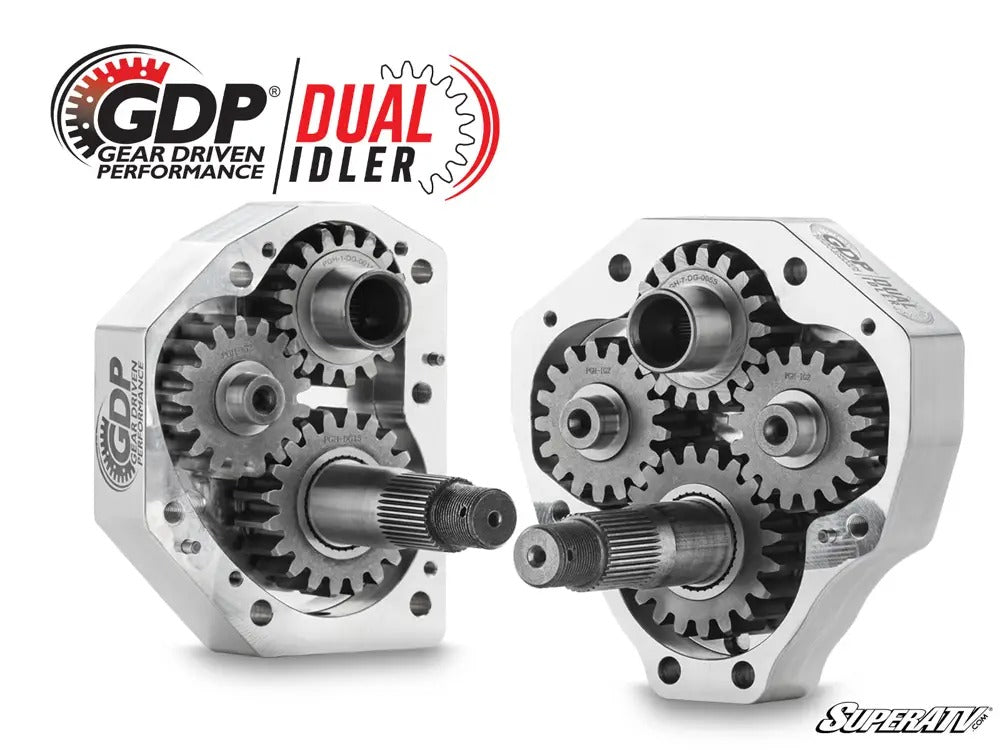

What Is a Dual Idler?

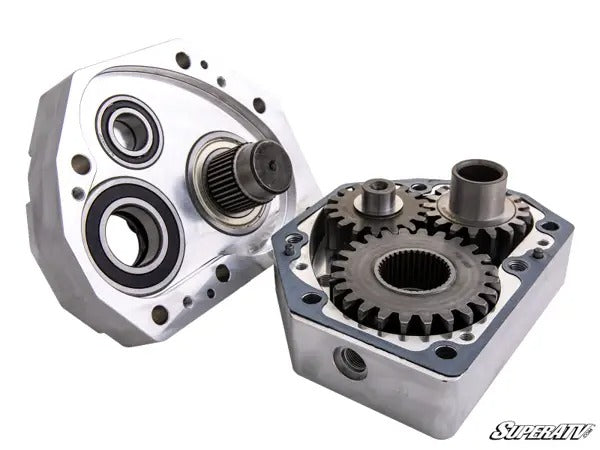

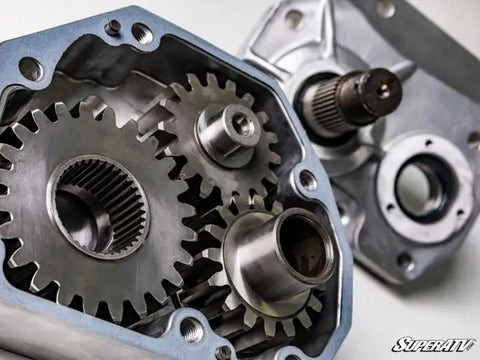

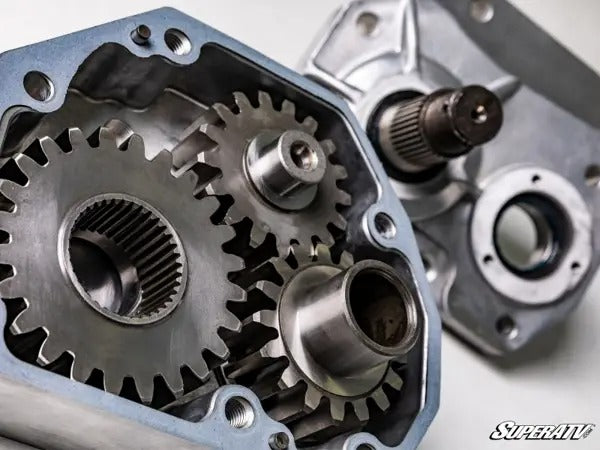

Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Perfect for All Riding Styles
GDP Portal Gear Lifts aren’t a one-size-fits all solution—you get the kit you need for the way you ride. Get a 15% gear reduction on your Maverick Sport and take on trails, dunes, and desert. You’ll keep your top speed and enjoy the extra torque. Move up to a 30% gear reduction to take on thick slop and rocks with torque that puts the terrain in its place.
A Gear Reduction That Protects Your Drivetrain
Portals put the gear reduction right in the hub—after your transmission, prop shaft, differential, and axles. That means it reduces stress on your entire drivetrain. You get more power and your most vital components will last longer, too. That’s a win-win.

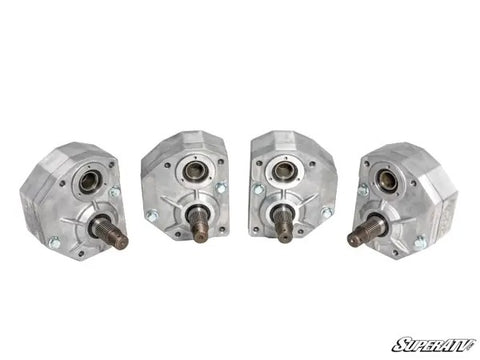

Strength Through and Through

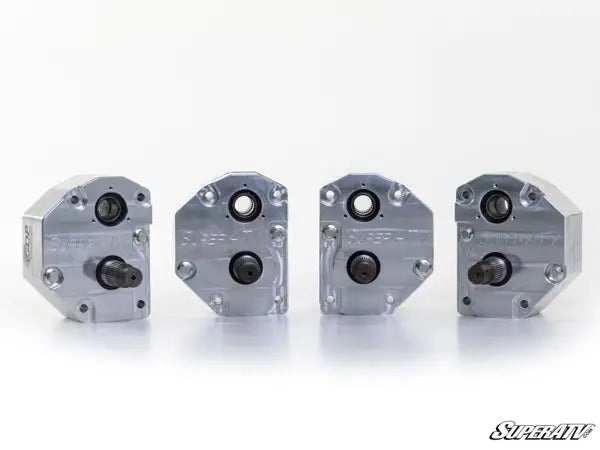

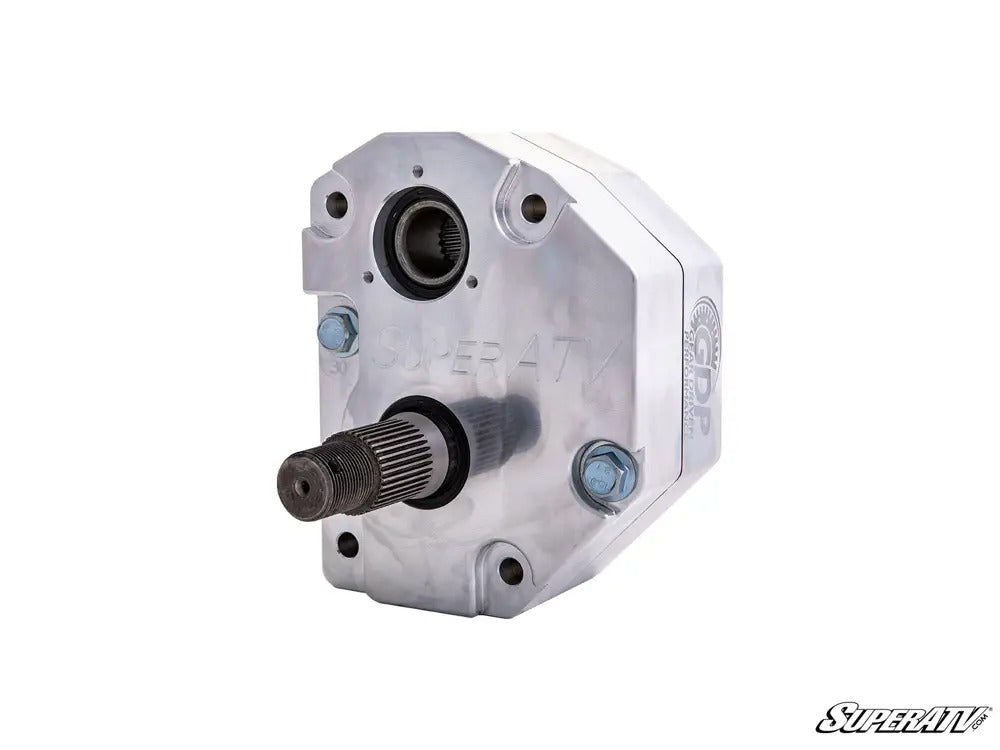

We wanted to make sure our portals were the best you can get. That’s why our cast and billet aluminum housings are the thickest and strongest on the market. Combine that with 5/16” backing plates made from an advanced steel alloy, and our portals are unstoppable.
Our housings are reinforced for gear retention and optimized for oil flow
Advanced steel alloy backing plates are stronger than chromoly
Enhance withPortal Blood—gear oil formulated for GDP Portals
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

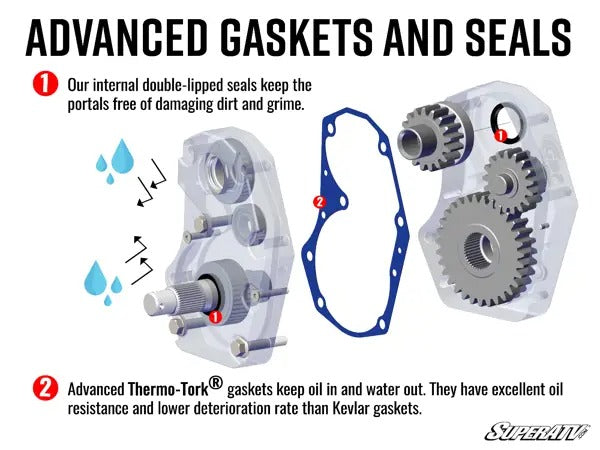

Advanced Gaskets, Seals, and Bearings
Our portals use:
Advanced Thermo-Tork® gaskets and O-rings with excellent oil resistance and low deterioration rates
A sealed input gear and double-lipped output seal
100% sealing coverage throughout so you can forget about oil leaks
Double-angular contact output bearings to prevent premature wear
Roller idler and drive bearings to maintain perfect gear meshing
Complete the Package with a Frame Stiffener
Portals and monster tires are fun, but they can place additional stress on your machine’s frame. To make your suspension bulletproof, we recommend adding a SuperATV Frame Stiffener when you install your new Can-Am portals!
Top-Rated Customer Service
Still need a little help getting exactly what you need? With GDP, you get a dedicated portal tech support team. Give us a call so we can get the perfect set of portals in your hands today.

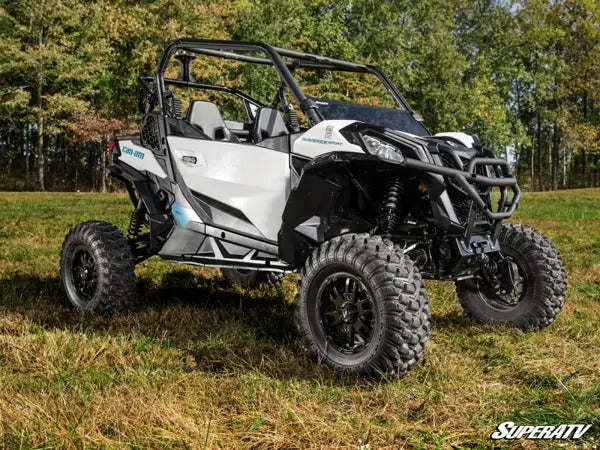

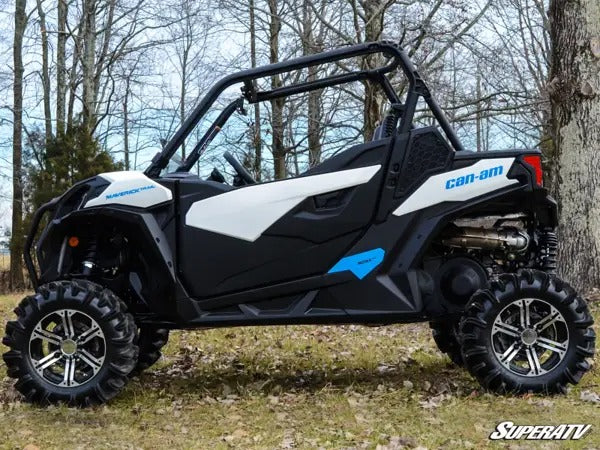

Can-Am Maverick Sport Portal Gear Reduction Recommendations
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Can-Am Maverick Sport 1000 : 2019+
Can-Am Maverick Sport 1000 DPS : 2019+
Can-Am Maverick Sport 1000R DPS : 2019+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
Limited Lifetime Warranty
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings.Using grease will void your warranty.
SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Procedures for obtaining warranty service:
Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.
If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.
Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.
If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.
Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
