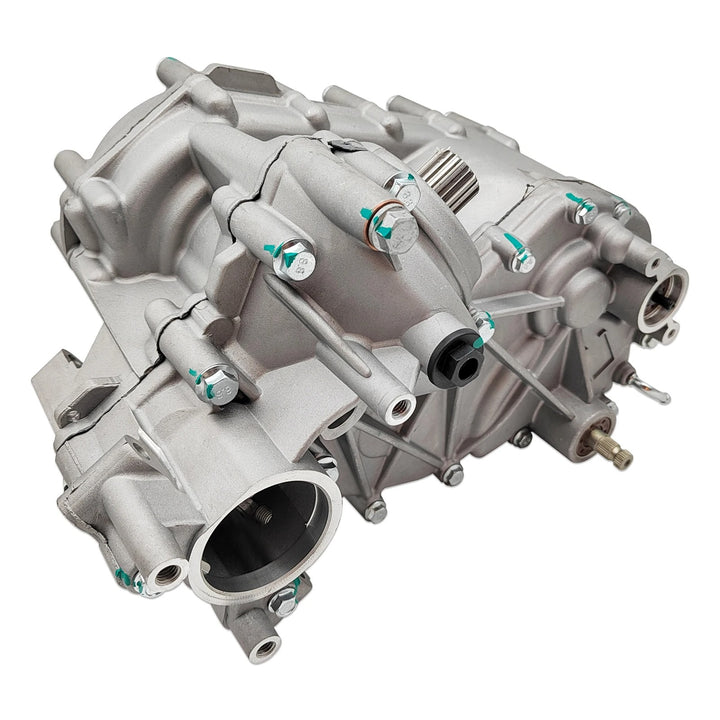

Can Am Small Gear Box

• Performance upgrade item
• All "Spartan Series" drivetrain required to run recommended fluid

Our gear box selector is designed to let you choose the OEM part number and have us match it with a premium version. This premium gear box replaces the OEM transmission with the highest quality gear box on the market.

FITMENT

Can-Am (420684224)

High Gear Ratio 3.544
Low Gear Ratio 6.757
Reverse Gear Ratio 7.607

• 2019 OUTLANDER 450 6X6, T3
• 2019 OUTLANDER MAX 450 6X6, T3
• 2020 OUTLANDER 450
• 2020 OUTLANDER MAX 450, 6X6
• 2020 OUTLANDER T 450, 6X6
• 2020 OUTLANDER T MAX 450, DPS, 6X6
• 2021 OUTLANDER MAX 450 6X6

Can-Am (420686956)

High Gear Ratio 3.341
Low Gear Ratio 8.662
Reverse Gear Ratio 5.451

• 2016 OUTLANDER 570
• 2016 OUTLANDER 570 MAX
• 2016 RENEGADE 570
• 2017 OUTLANDER 450-570
• 2017 OUTLANDER MAX 450-570
• 2017 RENEGADE 570
• 2018 OUTLANDER 570
• 2018 OUTLANDER 570 T3 ( INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
• 2018 OUTLANDER 570 MAX
• 2018 OUTLANDER 570 MAX T3 ( INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
• 2018 RENEGADE 570

Can-Am (420686612)

High Gear Ratio 3.077
Low Gear Ratio 5.662
Reverse Gear Ratio 5.451

• 2011 OUTLANDER 800R EFI, XMR
• 2012 OUTLANER 800R EFI XMR
• 2013 OUTLANDER 650 EFI STD, DPS, XMR & XT
• 2013 OUTLANDER MAX 500 EFI STD, DPS & XT
• 2013 OUTLANDER MAX 650 EFI STD, DPS & XT
• 2013 OUTLANDER 500 EFI STD, DPS & XT
• 2013 RENEGADE 500 EFI STD
• 2014 OUTLANDER 500 EFI STD, DPS & XT
• 2014 OUTLANDER 650 EFI STD, DPS, XMR & XT
• 2014 OUTLANDER MAX 500 EFI STD, DPS & XT
• 2014 OUTLANDER MAX 650 EFI STD, DPS, X, XT
• 2014 RENEGADE 500
• 2015 OUTLANDER 500
• 2015 OUTLANDER 650 EFI, XMR
• 2015 OUTLANDER L 500
• 2015 OUTLANDER L MAX 500
• 2015 OUTLANDER MAX 500
• 2015 OUTLANDER MAX 650
• 2015 RENEGADE 500
• 2015 OUTLANDER 800R
• 2015 OUTLANDER 800R EFI, XMR
• 2015 OUTLANDER MAX 800R
• 2015 RENEGADE 800R

Can-Am (420686714)

High Gear Ratio 2.886
Low Gear Ratio 5.299
Reverse Gear Ratio 5.451

• 2009 OUTLANER 800R EFI, XT
• 2009 OUTLANER MAX 800R EFI , XT, Ltd
• 2009 RENEGADE 800R EFI, X
• 2010 OUTLANDER 800R EFI
• 2010 OUTLANDER MAX 800R EFI, Ltd
• 2010 RENEGADE 800R EFI, XXC
• 2011 OUTLANDER 800R EFI, XXC
• 2011 OUTLANDER MAX 800R EFI, Ltd
• 2011 RENEGADE 800R EFI, XXC
• 2012 OUTLANDER MAX 800R EFI Ltd, XT & XT-P
• 2012 OUTLANDER 800R EFI, XT
• 2012 RENEGADE EFI, XXC, 800R
• 2013 OUTLANDER 800R EFI, DPS, XT & XT-P
• 2013 OUTLANDER MAX 800R EFI, DPS, XT & XT-P
• 2013 RENEGADE 800R EFI, XXC
• 2014 OUTLANDER 800R EFI, DPS, XT & XT-P
• 2014 OUTLANDER MAX 800R EFI, DPS, XT & XT-P
• 2014 RENEGADE 800R EFI, XXC
• 2015 OUTLANDER 800R EFI, XMR
• 2015 OUTLANDER MAX 800R EFI
• 2015 RENEGADE 800R EFI
• 2015 OUTLANDER 1000 EFI
• 2015 OUTLANDER MAX 1000 EFI, LTD

Can-Am (420684829)

High Gear Ratio 2.886
Low Gear Ratio 5.662
Reverse Gear Ratio 5.451

• 2018 OUTLANDER 650 T3
• 2018 OUTLANDER 650 T3 MAX
• 2019 OUTLANDER 650, T3, XT
• 2019 OUTLANDER 850, XMR
• 2019 OUTLANDER MAX 650

Can-Am (420685399)

High Gear Ratio TBD
Low Gear Ratio TBD
Reverse Gear Ratio TBD

• 2018 OUTLANDER 1000R
• 2018 OUTLANDER MAX 1000R (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
• 2018 OUTLANDER 1000 MAX T3
• 2018 RENEGADE 1000 T3
• 2019 OUTLANDER 1000R, DPS, XT, XTP

*Please verify fitment with OEM parts diagram

View similar item(s) for Can Am Large Gear Box and Can Am Transaxle Gear Box.

INCLUDES

Item

1. Transmission - QTY 1

DETAILS

Shipping

• Box Dimensions: 16x16x16
• Weight: 60.00 lbs.

DOWNLOADS

Instructions

No Installation Guide Exists
