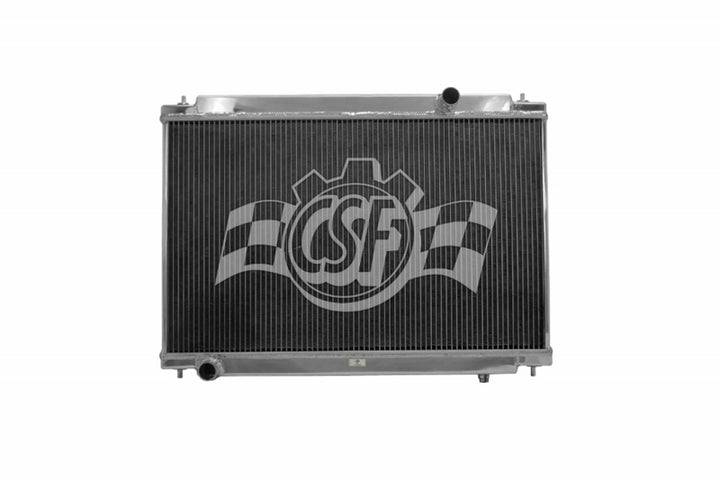

CSF 08-18 Nissan GT-R Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your R35 GTR running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year	Make	Model	Submodel
2020	Nissan	GT-R	50th Anniversary Edition
2009-2010	Nissan	GT-R	Base
2012-2016	Nissan	GT-R	Black Edition
2015-2021,2023-2024	Nissan	GT-R	Nismo
2009-2021,2023-2024	Nissan	GT-R	Premium
2018-2019	Nissan	GT-R	Pure
2024	Nissan	GT-R	Skyline Edition
2021,2024	Nissan	GT-R	T-spec
2024	Nissan	GT-R	T-spec Takumi Edition
2014-2015,2018-2020	Nissan	GT-R	Track Edition
