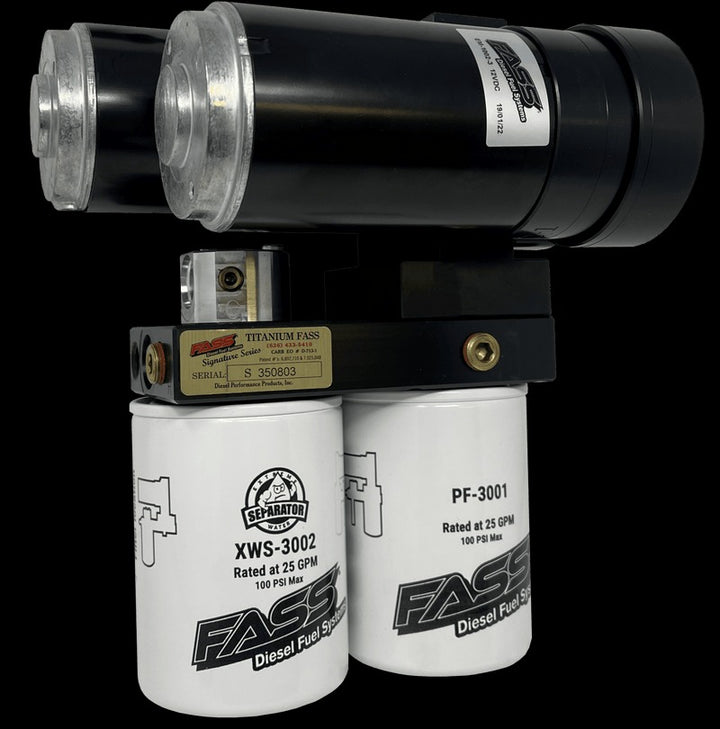

FASS Fuel Systems COMP360G Competition Series 360GPH (100 PSI MAX) - COMP360G ^{GREAT DEAL}

• Electrical Requirements: Each motor will need a 30 amp fuse and we recommend 10 gauge wiring to each motor. Each electric motor can draw up to 10 amps max.
• Fuel Line Requirements: A single -12 suction line is recommended while a -8 or -10 engine feed and FASS return line is sufficient.

  Competition Series 360G Information:

• Supplied with Our Universal Mounting Bracket.
• Pressure Adjustable from 0-100 PSI.
• -10 AN Inlet, Outlet, and Pressure Regulator Ports.
• Removes Water, Air and Debris from Diesel Fuel.
• 2 Micron Filtration Rating.
• 1/8 NPT Pressure Gauge Port.
• Easier to prime than a mechanical gear System.
• 100 PSI Maximum Pressure.

  Competition Series 330G Flow Rates:

• 360 Gallons Per Hour at Free Flow (0 PSI).
• 348 Gallons Per Hour at 10 PSI.
• 336 Gallons Per Hour at 20 PSI.
• 324 Gallons Per Hour at 30 PSI.
• 318 Gallons Per Hour at 40 PSI.
• 312 Gallons Per Hour at 50 PSI.
• 306 Gallons Per Hour at 60 PSI.
• 294 Gallons Per Hour at 70 PSI.
• 282 Gallons Per Hour at 80 PSI.
• 276 Gallons Per Hour at 90 PSI.
• 264 Gallons Per Hour at 100 PSI.

Two WH-1006-3R can be purchased to power the FASS Competition Series motors if you do not wish to build a custom wire harness.
