Honda Talon 1000X 6" Portal Gear Lift
- Regular price $ 4,359.90
Vendor: Super ATV AUTHORIZED DEALER
Type: Drivetrain
Part #: PGH6D-3-82-301-B-FS
Lead Time: Contact Us
Lead Time: Contact Us
Lead Time: Contact Us
Lead Time: Contact Us
Lead Time: Contact Us
Lead Time: Contact Us
Lead Time: Contact Us
Lead Time: Contact Us
$ {{amount}}
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel driveshaft
- Housings use Thermo-Tork® gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1” offset
- Lighter than the competition
Wheel Requirements:
- 18” or larger wheel required
- 18” wheels cannot exceed 4-1/2” backspacing
- 20” and larger wheels cannot exceed 5” backspacing
GDP Portals Are Unbeatable
Everyone knows there’s no such thing as a “one size fits all” off-road experience. It all comes down to where, when, and how you like to ride. That’s why SuperATV’s Gen 3 portals are all about giving you options. When you buy our 6” Portal Gear Lift for your Honda Talon 1000X, you get a say in what kind of housings we use (cast or billet aluminum), how much gear reduction you get, and whether or not you want the unbeatable strength of dual idler gears. So whether you need a 30%, 45%, or 60% gear reduction, GDP has you covered.

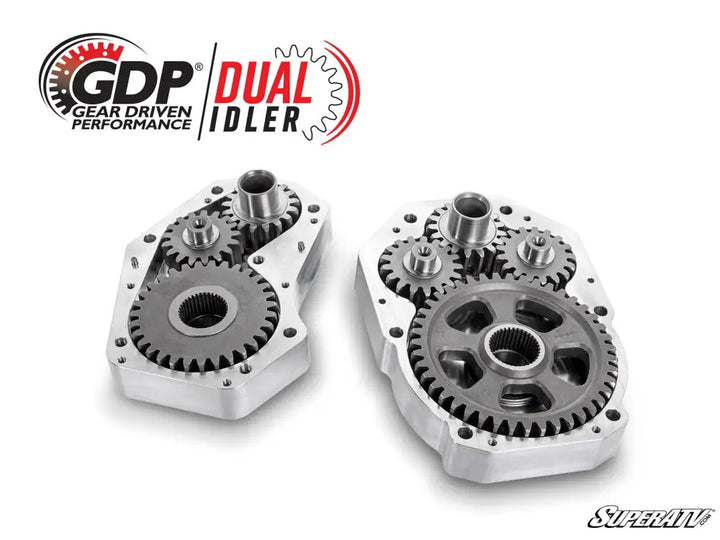

What is a Dual Idler?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Great for Any Terrain
Mud and portals go together like peanut butter and jelly. Depending on how big your tires are, you’ll be right at home with a 45% or 60% gear reduction. If you’re not into mud, a 30% gear reduction will deliver unbelievable torque while maintaining a higher top speed. No matter what you go with, you’ll enjoy performance you didn’t know was possible.
A Gear Reduction That Protects Your Drivetrain
By putting the gear reduction in the hub, our portals don’t put any extra stress on your machine’s drivetrain. This means your axles, differential, prop shaft, and transmission are able to do their job without acquiring any premature wear and tear. Being able to ride without worry lets you focus on what’s really important—having fun.
Built with Superior Strength
We went all out when designing our portals because we know how important it is for them to be stronger, smarter, and more reliable than anything else out there. And what’s more, you get to choose cast or billet aluminum housings. Add in our 5/16” backing plates made from an advanced steel alloy and you’re left with Honda Talon portals that are second to none.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced Thermo-Tork® Gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Add Some Extra Frame Support
After installing these 6” GDP portals, you’ll be riding harder than ever before. Is your machine’s frame up for the challenge? We recommend installing a frame stiffener with these portals. It adds the stability and reinforcement you need to tackle rough terrain without fear of breaking something.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
| 6” Portal Gear Lift Includes: | ||
|---|---|---|
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates with spacers | ||
| (8) Caliper mounting plate shims | ||
| (2) Steel steering arms | ||
| (2) Rear adapter plates | ||
| (2) Preinstalled lower ball joints | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
| Frame stiffener (must select at checkout) | ||
| Honda Talon 1000X Portal Gear Reduction Recommendations | ||
|---|---|---|
| Max Tire Size | Required Suspension Setup with 6” Portals | |
| 33" | Stock | |
| 33" | 2" Lift Kit | |
| 36" | 1.5" Forward Offset A-Arms | |
| 36" | 1.5" Forward Offset A-Arms and 2" Lift Kit | |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. | ||
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. | ||
FITMENT
- Honda Talon 1000X : 2019+
- Honda Talon 1000X-4 : 2020+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
INCLUDES
Item
DETAILS
TERMS OF WARRANTY
Limited Lifetime WarrantyWhen filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.
SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Procedures for obtaining warranty service:
Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.
If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.
Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.
If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.
Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
