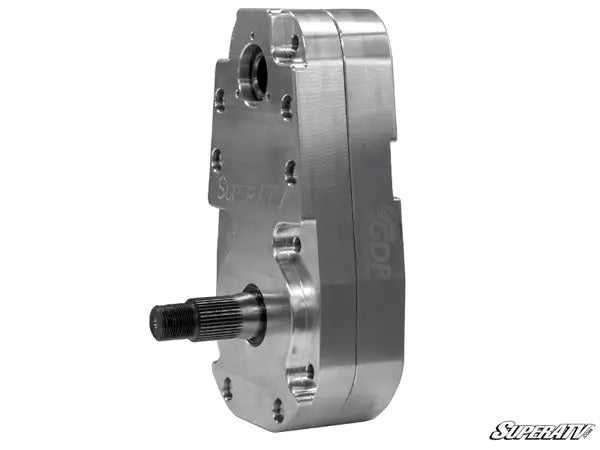

- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel driveshaft
- Housings use Thermo-Tork® gaskets and rubber O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
Gear Down and Go Big
Honda’s most fun side-by-side is about to get even better. Put 8” GDP Portals on your Honda Talon 1000X and you open up a whole new world of fun. With a huge increase in ground clearance and a massive 45% gear reduction, you’ll blaze a new trail and go everywhere your buddies can’t.
GDP—the Most Trusted Name in Portals
When you choose GDP, you’re not choosing the odd man out. More people roll on GDP portals than any other portal system. They’re the most trusted and the most trail proven. And with thousands of riders hitting the trail every weekend, it’s about time you joined the club.
Perfect for Mud
Portals and mud go together like chocolate and peanut butter. With all that extra ground clearance and torque-boosting 45% gear reduction, you’ll roll over and push through any mud hole you find. If you want to do mud the right way, you want GDP.
A Gear Reduction That Protects Your Drivetrain
A portal gear reduction protects your drivetrain because the reduction happens in your hub instead of in your transmission. That means your axles, differential, prop shaft, and transmission will wear less than stock even if you ride harder than stock. It’s a win-win.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Unmatched Gear Material
Our 9310 alloy steel gears make these the most top-of-the line gears you can get. On top of being bulletproof, these precision-ground gears mate perfectly each and every time so you get smooth, quiet portals no matter how hard you ride.
Stronger Housings by Design
Think you can get a stronger portal housing than GDP? Think again. It takes precision engineering, consistency, and unmatched experience to make a housing that can stand the test of time. That’s exactly what we’ve done. So whether you get a cast aluminum or USA-made billet aluminum housing, you’re getting the most used, most abused, and most trusted housing on the planet.
- Our housings are reinforced in all the right places
- They’re built with better oil flow and gearing forces in mind
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
The Strongest Portal Backing Plates You Can Get
You can’t skimp on backing plates because they’re what holds your hubs to your suspension. That’s why we use a premium steel alloy that’s stronger than chromoly and designed for ultra-high force applications. At 5/16” thick, these hand-weld plates won’t bend or break even when you’re hitting jumps and diving into bounty holes. They’re the last thing that’ll break on your machine.
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:
- Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- Rubber O-rings that completely seal the housings
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
Bearings That Rock
We don’t cut corners on our bearings either—from top to bottom GDP is built for battle. Our output shaft rolls on a double-angular contact bearing that’s designed to survive you smashing into rocks and stumps. They’ll keep your output running true no matter what.
Universal Hubs and Slotted Rotors
Our precision-ground, stainless steel slotted rotors stay cool to give you the braking power you need when you need it. They come with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs. These are the most popular bolt patterns and it makes your life easy—just about any side-by-side wheels you get your hands on will work with these hubs. We invented the tapered output shaft that our hubs attach to, which provides a more secure lock that won’t wobble or wear over time.
Reinforce Your UTV with a Frame Stiffener
The Talon is brutally fast and an awesome Honda side-by-side, but that doesn’t mean it can handle everything. An 8” GDP portal kit is a heavy-duty piece of hardware for heavy-duty machines. That’s why 8” portals require a frame stiffener. Trust us—we’ve hit enough bumps to know that bending a stock frame can happen. Don’t do it. Get a frame stiffener.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
| Honda Talon 1000X Portal Gear Suspension Recommendations |
| Max Tire Size |
Required Suspension Setup with 8 " Portals |
| 35" |
Stock |
| 35" |
2" Lift Kit |
| 40" |
1.5" Forward Front A-Arms |
| 40" |
1.5" Forward Front A-Arms and 2" Lift Kit |
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
| 8” Portal Gear Lift Includes: |
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings |
| (4) Specialized steel alloy backing plates |
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs |
| (2) Rear bearing carriers
|
| (4) Steel caliper mounting plates |
| (2) Heavy-duty lower ball joints preinstalled |
| (8) Caliper mounting plate spacers |
| Extended brake lines |
| All required hardware, including recessed castle nut socket |
| Frame stiffener (must select at checkout) |
FITMENT
- Honda Talon 1000X : 2018+
- Honda Talon 1000X-4 : 2020+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
INCLUDES
Item
DETAILS
Limited Lifetime Warranty
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.Procedures for obtaining warranty service:Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.Replacement bearings, seals and gaskets can be found at www.SuperATV.com.Thank you for your business!
DOWNLOADS
Instructions
