- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel driveshaft
- Housings use Thermo-Tork® gaskets and rubber O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
Gen 3 Portals Are Geared for All

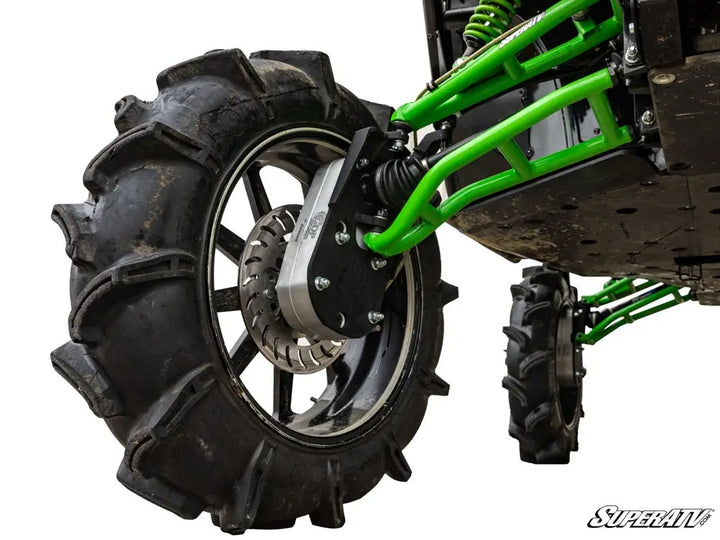

If you want to maximize ground clearance and performance in the best way possible, you need SuperATV’s GDP 8” Portal Gear Lift. It’ll take your Kawasaki Teryx S to unbelievable heights—literally. And you get options too! In the name of customizing your Teryx to match your unique ride style, you get to choose your housing material—cast or USA-made billet aluminum. You also get a 45% gear reduction for all the torque you could ever need. Combine that with a massive lift and room for monster tires and you’ll be ready to take on any challenge.
GDP—The Most Trusted Name in Portals
In the off-roading world, GDP is synonymous with excellence. No one else has invested as much time, money, and energy in portal gear lift development. The result is thousands of riders rolling on GDP at ride parks all over the world. With that much trail time under our belt, you know these portals are the real deal.
Perfect for Mud
If mud is what you’re into, you already know the best approach is to go big or go home. And in that case, there’s nothing better than our 8” portals. They give you enough height to avoid getting stuck and enough torque you need to keep your tires in motion. There’s a reason we say portals and mud are a match made in heaven—you’ll see it for yourself as soon as you choose GDP.
A Gear Reduction That Protects Your Drivetrain
With portals, the gear reduction is placed directly in the hub, as opposed to in the drivetrain. This greatly reduces the amount of stress placed on your axles, transmission, diff, and prop shaft. Less wear on those parts saves you time, money, and hassle… and your drivetrain will appreciate the extra love too.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Top-Notch Gear Material
The gears inside these Teryx S 8” portals are made with top-quality 9310 alloy steel. It’s the strongest gear material you can get because we use nothing but the best. Our gears are also precision ground—they mate perfectly and stay cool mile after mile. No matter how wild you get, our premium gears ensure a smooth ride every time.
Stronger Housing by Design
We’ve been in the portal game for quite some time now, so we know what it takes to make or break portal housings. We also know that ours are the strongest ones out there. Our expert design produces portal housings that are second to none, whether you go with cast or USA-made 6061 billet aluminum. Our billet option has a sleek CNC-machined finish, so it looks better too.
Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Unbeatable Portal Backing PlatesTo develop the strongest backing plates in the industry, we went with an advanced alloy steel that’s specialized for use in ultra-high force applications. It’s even stronger than chromoly, so you know it’s tough enough to handle whatever you throw its way. At 5/16” thick, you won’t ever have to wonder if your backing plates are strong enough.Advanced Gaskets and SealsWhether you go with cast or billet, both housings use:
Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
A sealed input gear and double-lipped output seal
100% sealing coverage throughout so you can forget about oil leaks
Nothing But the Best BearingsEvery piece of GDP Portals is designed for greatness, right down to the bearings. To keep a bad bearing from ruining your ride, we use a double-angular contact bearing for the output. It’s tough enough to withstand huge forces from any angle. We also use an incredibly strong roller bearing to hold the idler gear in place and absorb all that internal pressure. The result is a set of portals that’s truly built for battle.Universal Hubs and Slotted RotorsOur slotted rotors are stainless steel and precision ground to run cool no matter what. They’re designed to deliver the precise braking power you need, right when you need it. They come with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs so you can fit almost any UTV wheel in existence. We also invented the tapered output shaft that our hubs attach to, which provides a more secure lock that won’t wobble or wear over time.Top-Rated Customer ServiceStill need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
8” Portal Gear Lift Includes: |
(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings |
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs |
(4) Specialized steel alloy backing plates |
(4) Steel caliper mounting plates with spacers |
(2) Steel steering arms |
Extended brake lines with parking brake and brake cable brackets |
All required hardware, including recessed castle nut socket |
Max Tire Size Recommendations for 8” Portal Gear Lift |
Max Tire Size |
Required Suspension Setup with GDP Portals |
Up to 34" |
Stock |
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. |
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
FITMENT
- Kawasaki Teryx S: 2021+
- Kawasaki Teryx 4S: 2021+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55 mm) or will require a 1” wheel spacer.
INCLUDES
Item
DETAILS
Limited Lifetime Warranty
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.
SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Procedures for obtaining warranty service:
Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.
If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.
Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.
If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.
Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
Thank you for your business!
DOWNLOADS
Instructions
