- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use Thermo-Tork® gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
Gear Down and Go Big
For the best performance and the biggest lift on your Polaris Ranger XP 900, you need a set of 8” GDP Portals. They give you the ground clearance you need to fit up to 30” tires, and with your choice of a 45%, 60%, or massive 70% gear reduction, you’ll have wicked torque that’ll rip through anything. Or get the most extreme portal lift with dual idler gears. If you want to turn your Ranger into the ultimate party wagon, get an 8” GDP Portal Gear Lift.

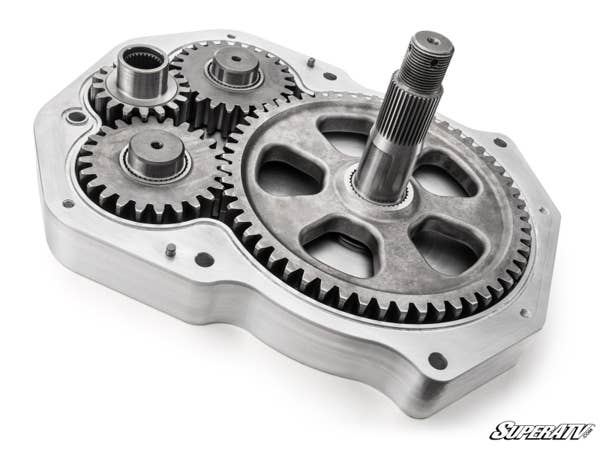

What is a Dual Idler?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
45%, 60%, and 70% Gear Reductions Dominate Mud
Getting wild in the mud is all about going as big as you can. With 8” portals and your choice of 45, 60, or 70% gear reduction, you can go bigger than you thought possible. You have the ground clearance to keep from getting swamped and the gear reduction to turn monster mud grips through the bounty holes that swallow other riders whole.
A Gear Reduction That Protects Your Drivetrain
Portal gear lifts reduce the stress on your axles, differentials, prop shafts, and transmission. That’s because GDP puts the gear reduction in the hub instead of the transmission. Your machine’s drivetrain will last longer than running stock, and you can have more fun than anyone else.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Housings and Backing Plates Built Stronger
GDP Portals are the strongest you can get because we know how to make them tough. We’ve been using them and refining them for years. Whether you go with cast or USA-made, 6061 billet aluminum housings (which look awesome), you’ll get unmatched strength through superior design. Combine that with 5/16” backing plates made with an advanced steel alloy, and you’ve got the brawniest portals on the
