- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use Thermo-Tork® gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Weighs 194 lb. total, which is 50+ lb. lighter than the competition
Wheel Requirements:
- 14” or larger wheel required
- Wheels cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels
Gen 3 Portals Are Geared for All
Off-roading isn’t a “one size fits all” thing. Your riding style is as unique as you are, and we designed our portals to reflect that. When you buy SuperATV’s GDP 4” Portal Gear Lift for your Polaris Sportsman XP, you have a say in what kind of housings we use (cast or billet aluminum) and the amount of gear reduction you get. Are you all about maximum power? Go with a 30% gear reduction. Is trail riding more your thing? Try our 15% gear reduction. Whatever your style, one thing stays the same—GDP portals will totally change the way you look at riding.
GDP—the Most Trusted Name in Portals
Don’t just take our word for it when we tell you GDP portals are the best in the business. Look at the thousands of riders across the country who put them to the test day after day! There’s a reason why more riders choose GDP portals over any other system—they’re long tested, trail proven, and highly trusted. Why would you buy portals from anyone else?
Perfect for Mud

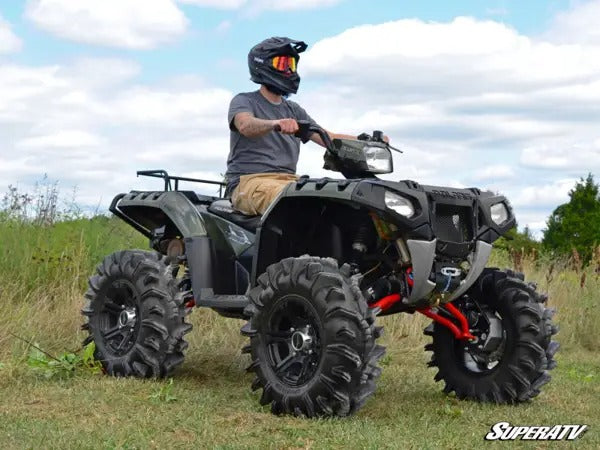

Mud riding takes on a whole new meaning when you have GDP portals installed on your quad. You’ll be tearing through the thickest bogs and making it look easy! The torque boost gives you extra power to dominate in the mud, and the ground clearance keeps you from getting swamped. Sounds like a recipe for fun if we’ve ever heard one.
A Gear Reduction That Protects Your Drivetrain
Portal gear lifts place the gear reduction in your hub, which greatly reduces the amount of stress placed on your vehicle’s most critical components. This means you can relax and go hard knowing that your axles, differential, prop shaft, and transmission aren’t being abused. Your driveshaft will thank us.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Unmatched Gear Material

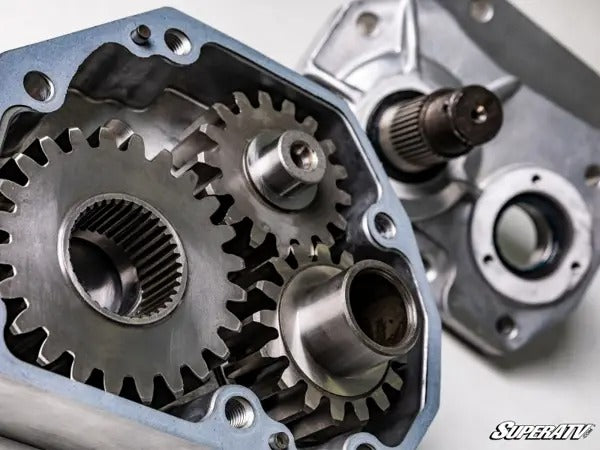

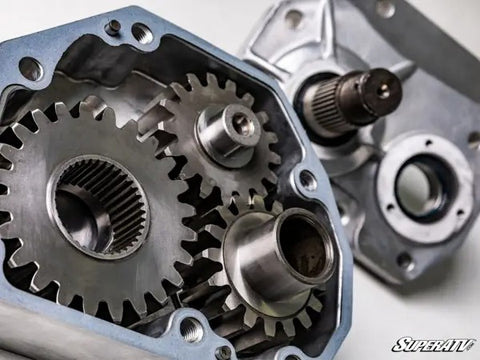

We use nothing but the best when it comes to GDP portals, and our gears are no exception. They’re made of a strong 9310 alloy steel and precision ground to ensure that the teeth match up perfectly with every revolution. Our gears deliver a smooth and quiet performance ride after ride.
Stronger Housings by Design

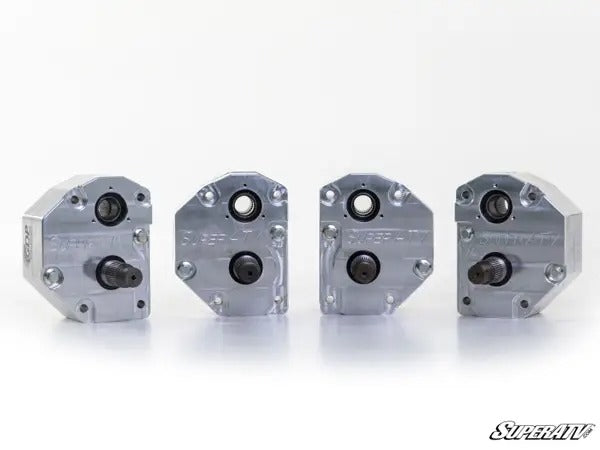

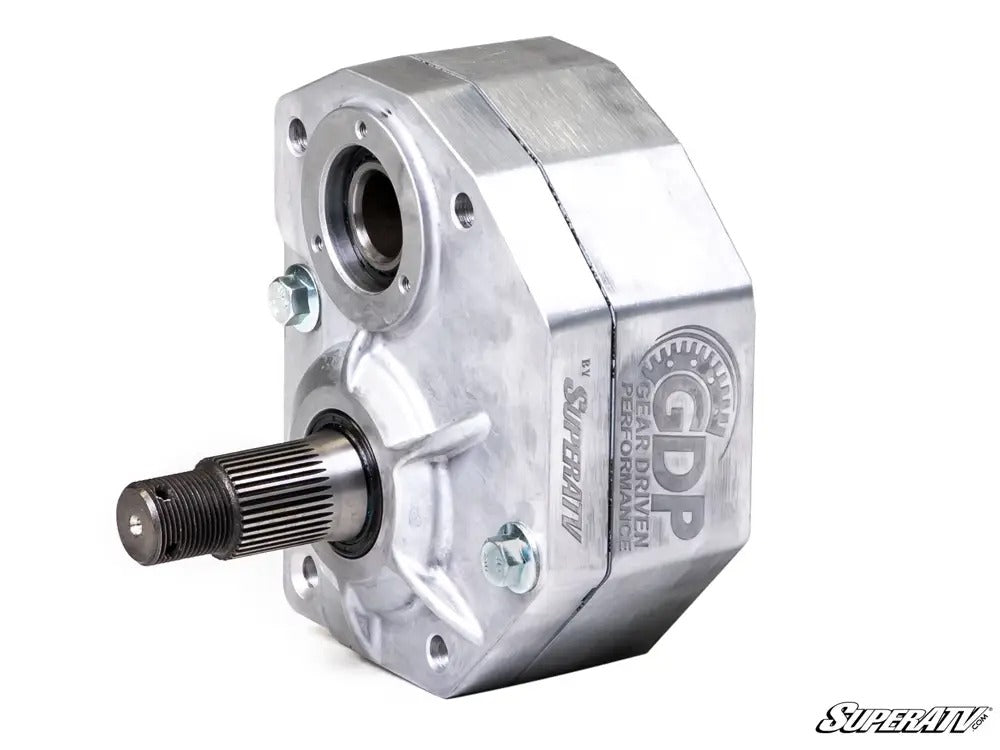

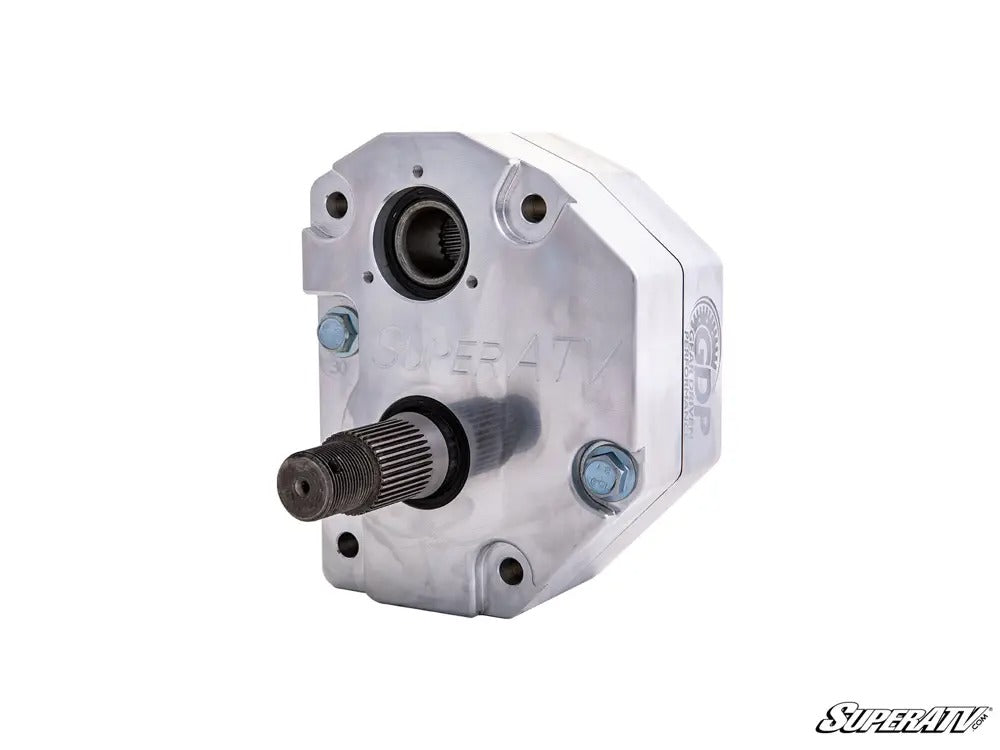

No portals in the world have housings stronger than what you’ll find on GDP portal gear lifts. We’ve put in years of research and testing to bring you housings that are strong enough to keep up with even the most rugged off-road lifestyle. So whether you go with cast or our USA-made 6061 billet aluminum with a sleek CNC-machined finish, just know you’re getting portal housings that truly are second to none.
- Our housings are reinforced in all the right places
- They’re built with better oil flow and gearing forces in mind
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
The Strongest Portal Backing Plates You Can Get
Our extra-strong backing plates are just another reason why GDP portals are the best around. They’re made out of an advanced steel alloy, and trust us when we say this isn’t just any old metal. It’s specialized for ultra-high force applications and is even stronger than chromoly. And at 5/16” thick, you can bet these plates aren’t going to fail you anytime soon—or ever.
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:
- Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
Bearings That Rock

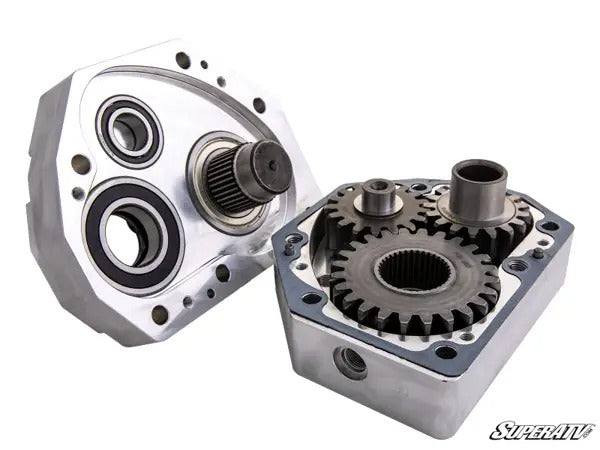

The performance of a portal gear lift depends on the quality of the bearings inside. That’s why we didn’t cut any corners when designing ours. We use roller bearings to hold our idler gear in place, because there’s no such thing as compromising when it comes to strength. And our output bearing is a double-angular contact bearing—that means it can handle huge loads in any direction without wearing down prematurely. With bearings this good, you know your GDP portals are built to last.
Universal Hubs and Slotted Rotors
Our precision-ground, stainless steel slotted rotors keep their cool no matter how wild you get. They’re designed to give you the braking power you need, as soon as you need it. We also include universal hubs, just to make things easier on you. With 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs, you’re free to run just about any size ATV wheel you can find. We also invented the tapered output shaft that our hubs attach to. It gives you a more secure lock that won’t wobble or wear over time.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
| 4” Portal Gear Lift Includes: |

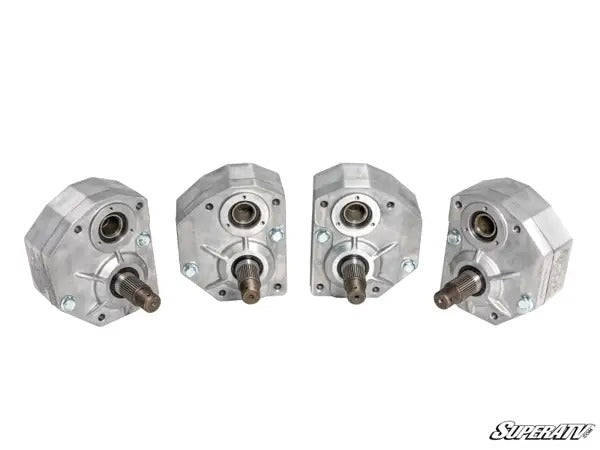

| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings |
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs |
| (4) Specialized steel alloy backing plates |
| (4) Steel caliper mounting plates |
| (2) Steel steering arms |
| Extended brake lines |
| All required hardware, including recessed castle nut socket |
| Polaris Sportsman XP Portal Gear Reduction Recommendations |
| Max Tire Size |
Required Suspension Setup with 4" Portals |
Recommended 4" Portal Gear Reduction |
| Up to 28" |
Stock |
15% |
| 29.5" |
2" Lift Kit |
15% |
| 30" to 38" |
6" Lift Kit |
15% |
| Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information. |
FITMENT
- Polaris Sportsman 1000 Touring : 2015+
- Polaris Sportsman 550 : 2010-2014
- Polaris Sportsman 550 Touring EPS : 2010-2014
- Polaris Sportsman 850 : 2016+
- Polaris Sportsman 850 MV : 2012-2014
- Polaris Sportsman 850 SP : 2015+
- Polaris Sportsman 850 Touring : 2015+
- Polaris Sportsman 850 Touring EPS : 2010-2014
- Polaris Sportsman 850 Touring SP : 2015-2016
- Polaris Sportsman Forest 1000 : 2015
- Polaris Sportsman Forest 550 : 2011-2014
- Polaris Sportsman Forest 850 : 2011-2015
- Polaris Sportsman X2 550 : 2010-2014
- Polaris Sportsman X2 850 : 2011
- Polaris Sportsman XP 1000 High Lifter Edition : 2016+
- Polaris Sportsman XP 1000 XP : 2015+
- Polaris Sportsman XP 550 : 2009-2014
- Polaris Sportsman XP 850 : 2009+
- Polaris Sportsman XP 850 High Lifter Edition : 2016+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
INCLUDES
Item
DETAILS
Limited Lifetime Warranty
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.Procedures for obtaining warranty service:Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.Replacement bearings, seals and gaskets can be found at www.SuperATV.com.Thank you for your business!
