Portal Gear Lift 6'' Maverick X3 - 60% Dual Idler Version
GREAT DEAL
- Regular price $ 4,049.00
Vendor: High Lifter AUTHORIZED DEALER
Type: Drivetrain
Part #: PGL-660DI-CMX3
Inventory: Might be drop shipped by manufacturer
Incoming: May not ship until
Lead Time: Contact Us
Lead Time: Contact Us
Portal Gear Lift 6'' Maverick X3 - 60% Dual Idler Version
$ 4,049.00
- Weight: 250.000000
- Length: 48.000000
- Width: 48.000000
- Height: 36.000000
What does the 60% Dual Idler Gear Lift offer?

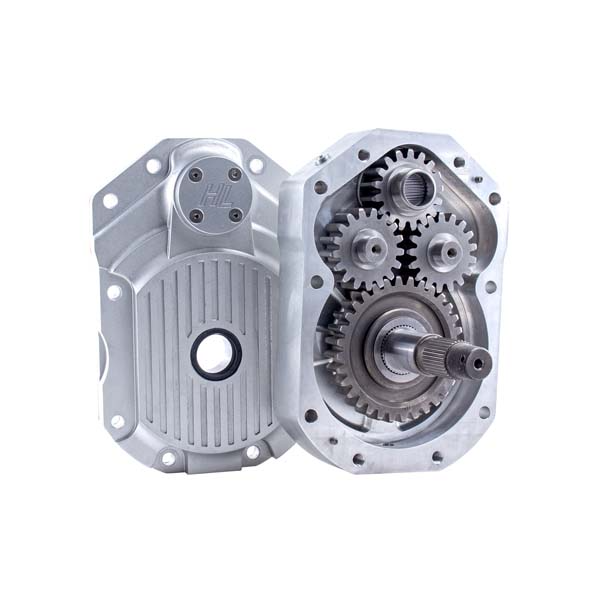

- High Lifter improved the portal design by adding a second idler gear in the gear box
- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
- You gain more reliable torque transfer
- If you run a 40” tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
- Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
- 60% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
- Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!
Why is this 6” kit better than our competitor?

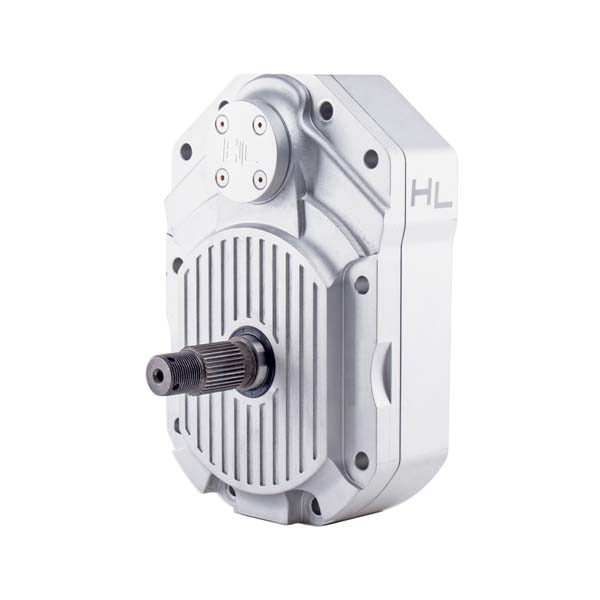

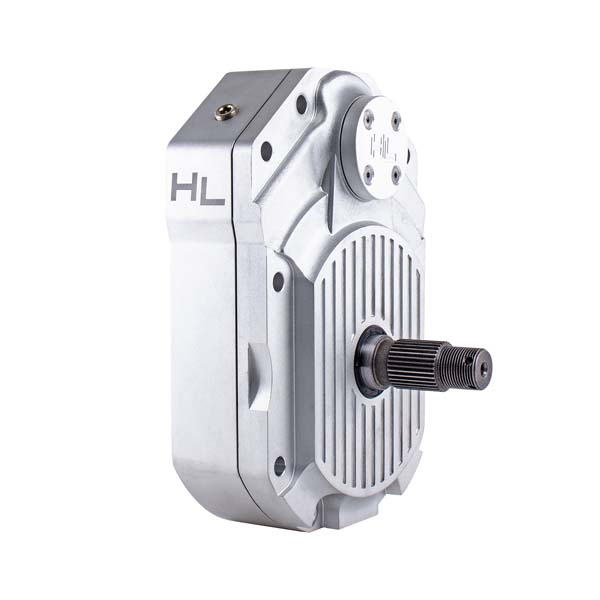

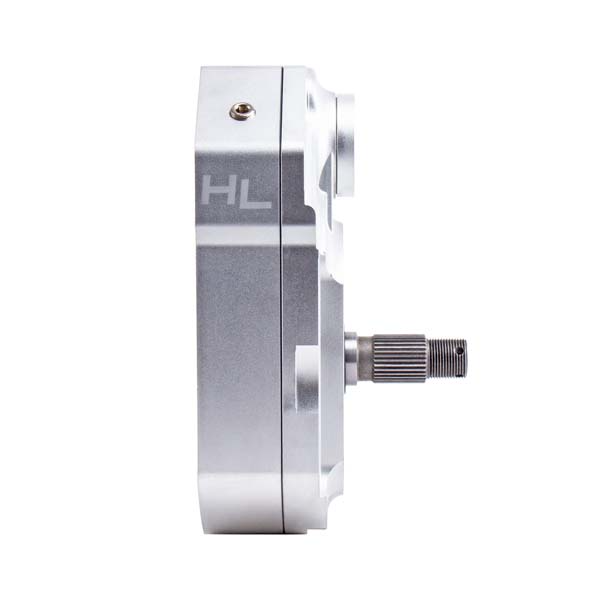

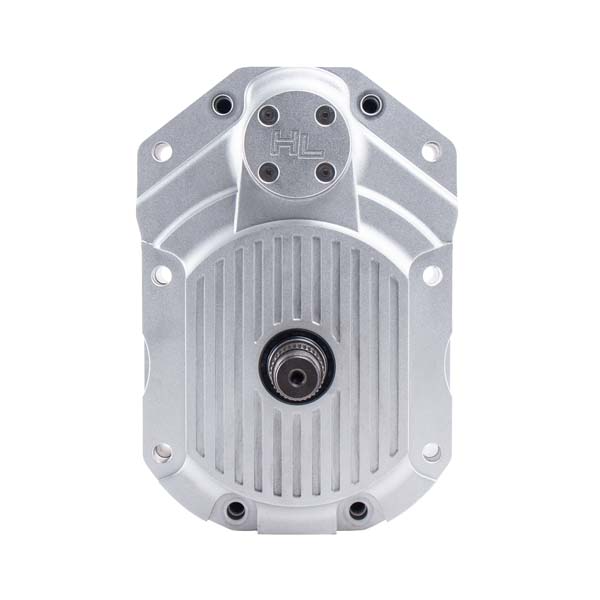

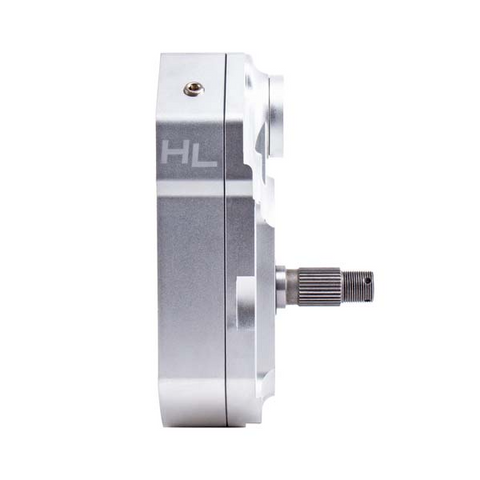

Forged Gear Boxes
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant

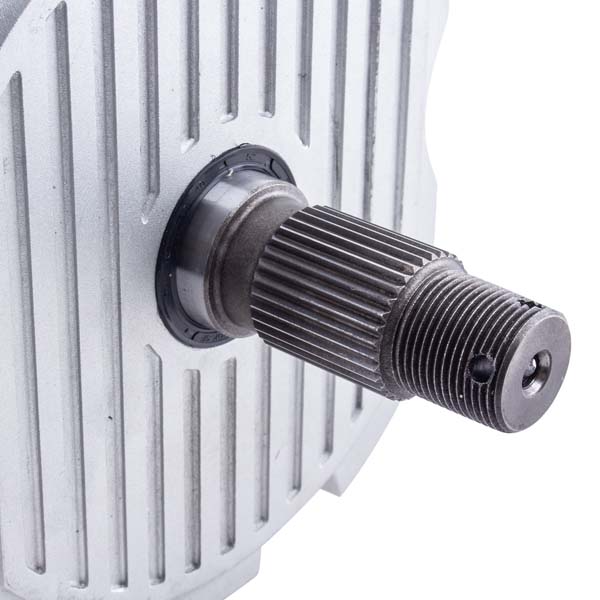

Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

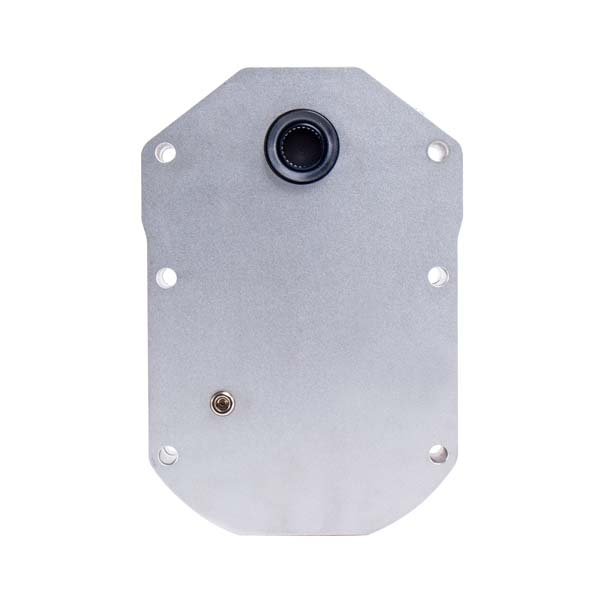

Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with Bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
13” Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
FITMENT
-
2022 Can-Am Maverick X3 XRS Turbo RR w/Smart-Shox 72
-
2022 Can-Am Maverick X3 DS Turbo 64
-
2022 Can-Am Maverick X3 DS Turbo RR 64
-
2022 Can-Am Maverick X3 XDS Turbo RR 64
-
2022 Can-Am Maverick X3 RS Turbo RR 72
-
2022 Can-Am Maverick X3 XRS Turbo RR 72
-
2022 Can-Am Maverick X3 XRC Turbo RR 64
-
2022 Can-Am Maverick X3 XRC Turbo RR 72
-
2022 Can-Am Maverick X3 XMR Turbo RR 64
-
2022 Can-Am Maverick X3 XMR Turbo RR 72
-
2017 Can-Am Maverick X3 STD
-
2017 Can-Am Maverick X3 XDS
-
2017 Can-Am Maverick X3 XRS
-
2018 Can-Am Maverick X3 Turbo
-
2018 Can-Am Maverick X3 Turbo R
-
2018 Can-Am Maverick X3 Turbo R XDS
-
2018 Can-Am Maverick X3 Turbo R XRS
-
2018 Can-Am Maverick X3 Turbo R XRC
-
2018 Can-Am Maverick X3 Turbo XRC
-
2018 Can-Am Maverick X3 Turbo XMR
-
2018 Can-Am Maverick X3 Turbo R XMR
-
2018 Can-Am Maverick X3 900 HO
-
2019 Can-Am Maverick X3 Turbo
-
2019 Can-Am Maverick X3 Turbo XRC
-
2019 Can-Am Maverick X3 Turbo XMR
-
2019 Can-Am Maverick X3 Turbo R
-
2019 Can-Am Maverick X3 Turbo R XDS
-
2019 Can-Am Maverick X3 Turbo R XMR
-
2019 Can-Am Maverick X3 Turbo R XRC
-
2019 Can-Am Maverick X3 Turbo R XRS
-
2020 Can-Am Maverick X3 Turbo
-
2020 Can-Am Maverick X3 Turbo XRC
-
2020 Can-Am Maverick X3 Turbo XMR
-
2020 Can-Am Maverick X3 Turbo R XDS
-
2020 Can-Am Maverick X3 Turbo R XRS
-
2020 Can-Am Maverick X3 Turbo RR XDS
-
2020 Can-Am Maverick X3 Turbo RR XRS
-
2020 Can-Am Maverick X3 Turbo RR XRC
-
2020 Can-Am Maverick X3 Turbo RR XMR
-
2020 Can-Am Maverick X3 Turbo R
-
2021 Can-Am Maverick X3 Turbo DS
-
2021 Can-Am Maverick X3 Turbo XRC
-
2021 Can-Am Maverick X3 Turbo XMR
-
2021 Can-Am Maverick X3 Turbo R DS
-
2021 Can-Am Maverick X3 Turbo R RS
-
2021 Can-Am Maverick X3 Turbo RR XDS
-
2021 Can-Am Maverick X3 Turbo RR XRS
-
2021 Can-Am Maverick X3 Turbo RR XRS Smart-Shox
-
2021 Can-Am Maverick X3 Turbo RR XMR
- 2021 Can-Am Maverick X3 Turbo RR XRC
INCLUDES
Item
DETAILS
TERMS OF WARRANTY
Click here for High Lifter's limited lifetime warranty.
Warning: This product can expose you to chemicals, including Titanium Dioxide, which is known in the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov
DOWNLOADS
Installation Instructions
