Portal Gear Lift 6” Maverick X3 MAX - 45% Single Idler Version

Portal Gear Lift 6” Maverick X3 MAX - 45% Single Idler Version

Regular price $ 3,495.00

Availability: Not Stocked, Supplier Confirmation Required

BRAND High Lifter DEALER

CATEGORY Drivetrain

PART # PGL-645-CMX3-1

DESCRIPTION

Want lift plus power and performance? High Lifter engineered a gearing setup for a 6” portal with 45% gear reduction. You can run a larger tire size between a 33 to 39 inches and have the torque and horsepower you need. The 45% gear reduction is a robust set of portals giving height and power in any terrain. Mud Riding – geared to get you out of the thickest mud holes and 6 inches of height to pass over anything that comes in your way. Rock Climbing – 45% gear reduction makes that rocky terrain seem easy. You’ll have the power to ease right over rocks and boulders, plus added lift to run big tires to go places your friends can’t.

Weight: 250.000000
Length: 48.000000
Width: 48.000000
Height: 36.000000

Why is this 6” kit better than our competitor?

Forged Gear Boxes

Strongest boxes on the market because forging produces a tougher piece of metal
Forging is stronger than both cast and billet aluminum
Competitors use cast aluminum and billet aluminum boxes
These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

Customers asked for box venting and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant

Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate

These are the strongest backing plates on the market
5/16” steel plate with Bent flanges for strength and durability
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications

13” Rotor

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling

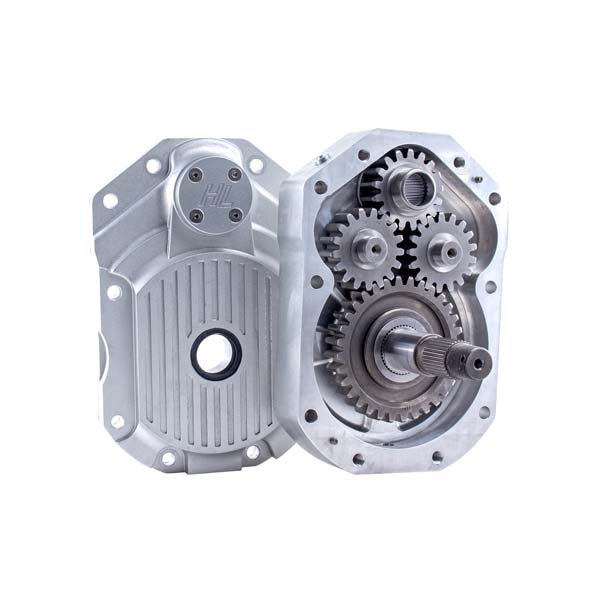

Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

FITMENT

2022 Can-Am Maverick X3 MAX XRS Turbo RR Smart Shox
2022 Can-Am Maverick X3 MAX DS Turbo 64
2022 Can-Am Maverick X3 MAX DS Turbo RR 64
2022 Can-Am Maverick X3 MAX XDS Turbo RR 64
2022 Can-Am Maverick X3 MAX RS Turbo RR 72
2022 Can-Am Maverick X3 MAX XRS Turbo RR 72
2022 Can-Am Maverick X3 MAX XMR Turbo RR 72
2017 Can-Am Maverick X3 MAX STD
2017 Can-Am Maverick X3 MAX XDS
2017 Can-Am Maverick X3 MAX XRS
2018 Can-Am Maverick X3 Turbo MAX
2018 Can-Am Maverick X3 Turbo R MAX
2018 Can-Am Maverick X3 Turbo R MAX XDS
2018 Can-Am Maverick X3 Turbo R MAX XRS
2019 Can-Am Maverick X3 Turbo MAX
2019 Can-Am Maverick X3 Turbo R MAX
2019 Can-Am Maverick X3 Turbo R MAX XDS
2019 Can-Am Maverick X3 Turbo R MAX XRS
2020 Can-Am Maverick X3 Turbo MAX
2020 Can-Am Maverick X3 Turbo R MAX XDS
2020 Can-Am Maverick X3 Turbo R MAX XRS
2020 Can-Am Maverick X3 Turbo RR MAX XDS
2020 Can-Am Maverick X3 Turbo RR MAX XRS
2020 Can-Am Maverick X3 Turbo RR MAX XMR
2020 Can-Am Maverick X3 Turbo R MAX
2021 Can-Am Maverick X3 Turbo MAX DS
2021 Can-Am Maverick X3 Turbo MAX R DS
2021 Can-Am Maverick X3 Turbo MAX R RS
2021 Can-Am Maverick X3 Turbo MAX RR XDS
2021 Can-Am Maverick X3 Turbo MAX RR XRS
2021 Can-Am Maverick X3 Turbo MAX RR XRS Smart-Shox
2021 Can-Am Maverick X3 Turbo MAX RR XMR

INCLUDES

Item

DETAILS

TERMS OF WARRANTY

Click here for High Lifter's limited lifetime warranty.
