Portal Gear Lift 6'' Ranger 1000 (New Body Style) - 2 Seater & Crew - 45% Dual Idler Version

Portal Gear Lift 6'' Ranger 1000 (New Body Style) - 2 Seater & Crew - 45% Dual Idler Version

Regular price $ 4,049.00

Availability: Not Stocked, Supplier Confirmation Required

BRAND High Lifter DEALER

CATEGORY Drivetrain

PART # PGL-645DI-RNG1

DESCRIPTION

Want lift plus power and performance? High Lifter engineered a gearing setup for a 6'' portal with 45% gear reduction. You can run a larger tire size between a 33 to 39 inches and have the torque and horsepower you need. The 45% gear reduction is a robust set of portals giving height and power in any terrain. Mud Riding geared to get you out of the thickest mud holes and 6 inches of height to pass over anything that comes in your way. Rock Climbing 45% gear reduction makes that rocky terrain seem easy. You’ll have the power to ease right over rocks and boulders, plus added lift to run big tires to go places your friends can’t.

Weight: 250.000000
Length: 48.000000
Width: 40.000000
Height: 36.000000

What does the 45% Dual Idler Gear Lift offer?

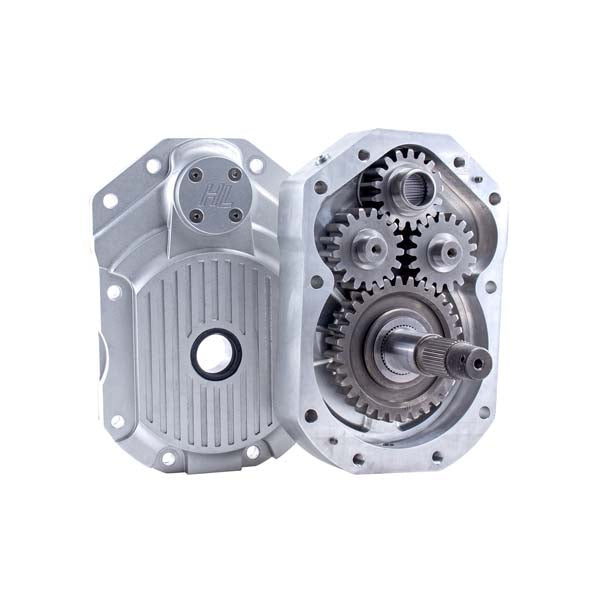

High Lifter improved the portal design by adding a second idler gear in the gear box
The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
You gain more reliable torque transfer
If you run a 40” tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
45% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!

Why is this 6” kit better than our competitor?

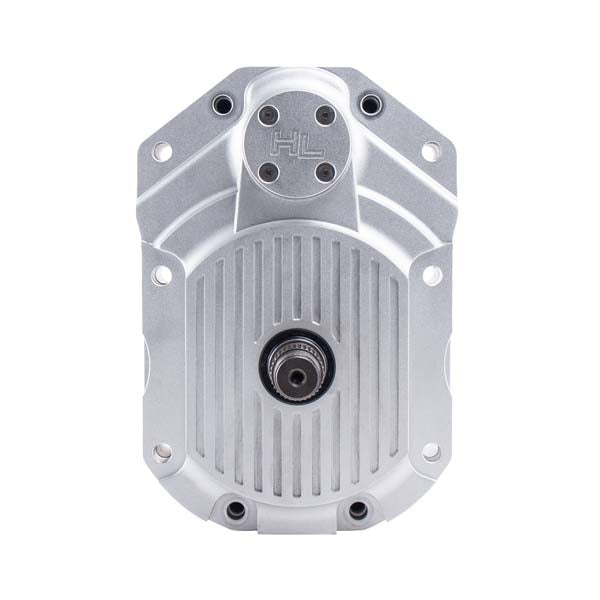

Forged Gear Boxes

Strongest boxes on the market because forging produces a tougher piece of metal
Forging is stronger than both cast and billet aluminum
Competitors use cast aluminum and billet aluminum boxes
These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

Customers asked for box venting and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant

Seals

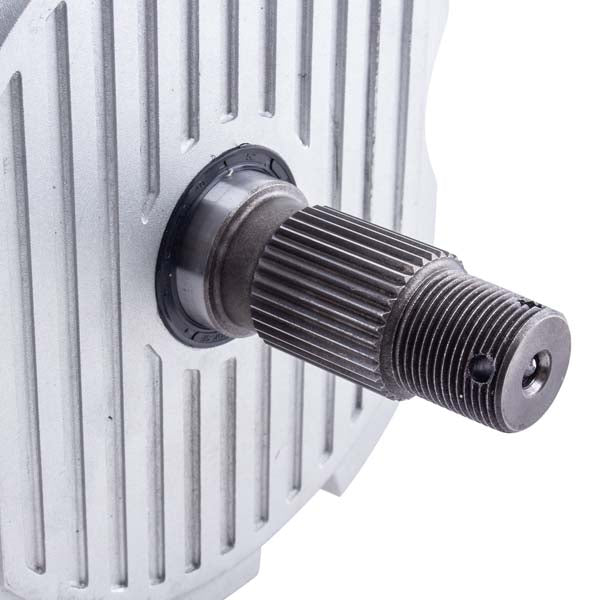

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

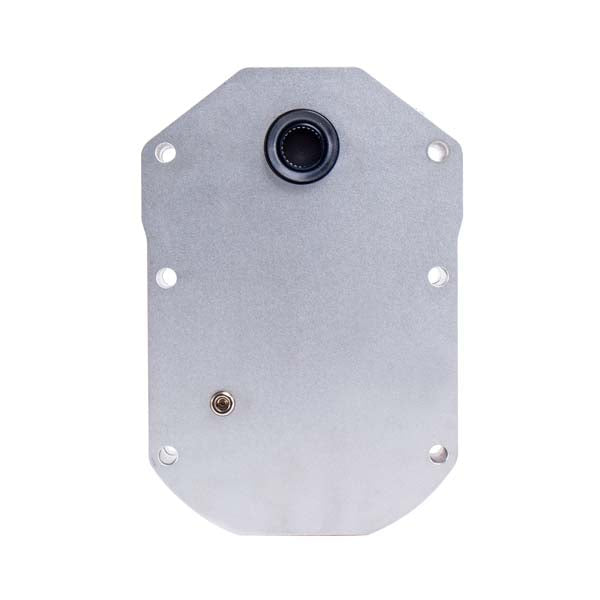

Backing Plate

These are the strongest backing plates on the market
5/16” steel plate with Bent flanges for strength and durability
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications

13” Rotor

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling

Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

FITMENT

2018 Polaris Ranger 1000 XP
2018 Polaris Ranger 1000 XP Northstar
2019 Polaris Ranger 1000 XP Crew Northstar
2019 Polaris Ranger 1000 XP Crew
2019 Polaris Ranger 1000 XP
2019 Polaris Ranger 1000 XP Premium
2019 Polaris Ranger 1000 XP 20th Anniv Edition
2019 Polaris Ranger 1000 XP Crew Premium
2019 Polaris Ranger 1000 XP Crew 20th Anniv Edition
2019 Polaris Ranger 1000 XP Northstar
2019 Polaris Ranger 1000 XP High Lifter Edition
2019 Polaris Ranger 1000 XP Crew High Lifter Edition
2019 Polaris Ranger 1000 XP Back Country
2019 Polaris Ranger 1000 XP Crew Back Country
2020 Polaris Ranger 1000 XP Premium
2020 Polaris Ranger 1000 XP NorthStar
2020 Polaris Ranger 1000 XP Texas Edition
2020 Polaris Ranger 1000 XP High Lifter Edition
2020 Polaris Ranger 1000
2020 Polaris Ranger 1000 EPS
2020 Polaris Ranger 1000 Premium
2020 Polaris Ranger 1000 XP Crew Premium
2020 Polaris Ranger 1000 XP Crew NorthStar
2020 Polaris Ranger 1000 XP Crew Texas Edition
2020 Polaris Ranger 1000 XP Crew High Lifter Edition
2020 Polaris Ranger 1000 Crew
2020 Polaris Ranger 1000 Crew EPS
2020 Polaris Ranger 1000 Crew Premium

INCLUDES

Item

DETAILS

TERMS OF WARRANTY

Click here for High Lifter's limited lifetime warranty.
