Portal Gear Lift 8” Polaris RZR 1000 XP - 60% Dual Idler
GREAT DEAL
- Regular price $ 5,995.00
Vendor: High Lifter AUTHORIZED DEALER
Type: Drivetrain
Part #: PGL-860DI-RZR1
Inventory: Might be drop shipped by manufacturer
Incoming: May not ship until
Lead Time: Contact Us
Lead Time: Contact Us
Portal Gear Lift 8” Polaris RZR 1000 XP - 60% Dual Idler
$ 5,995.00
- Weight: 365.000000
- Length: 48.000000
- Width: 40.000000
- Height: 40.000000
Why Choose High Lifter 8” Dual Idler Portals?

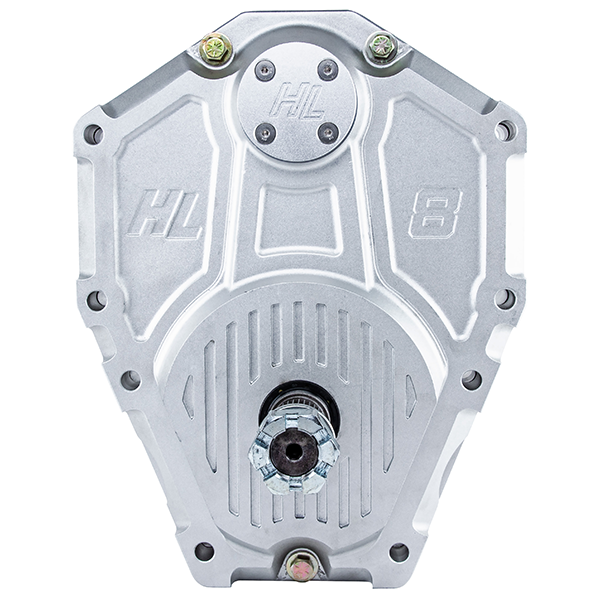

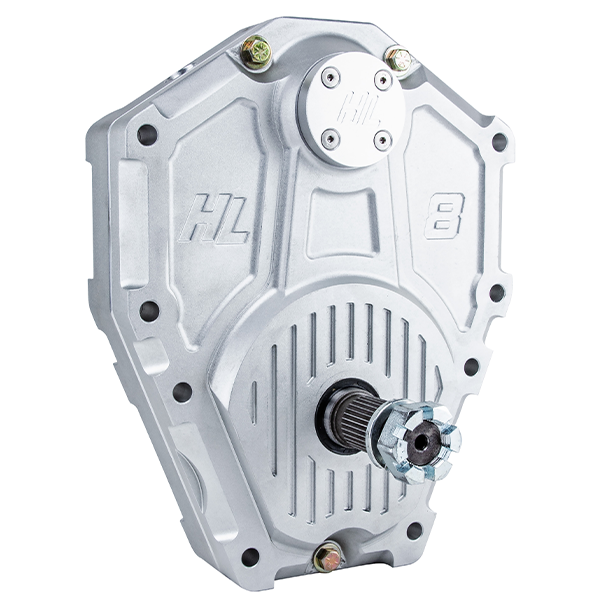

Forged Gear Boxes
The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8” portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!
- These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
- Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
- Forging is stronger than both cast and billet aluminum which is used by the competitor.
Brake lines
- No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
- Large advantage for Can-Am owners!

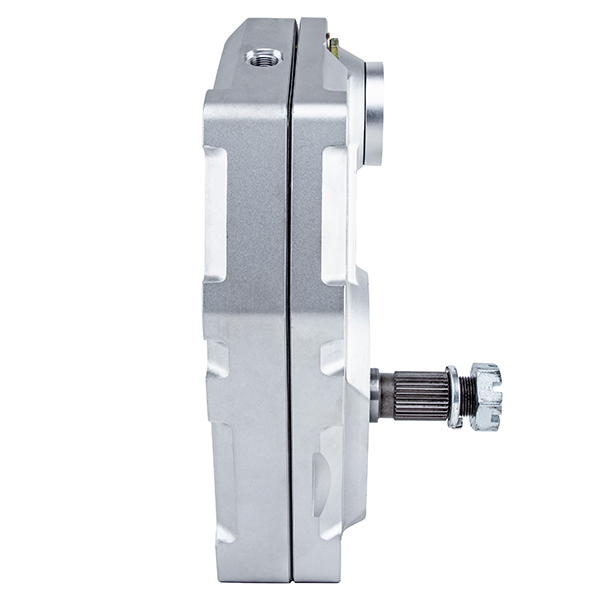

Gear Box Venting
- Customers asked for box venting, and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

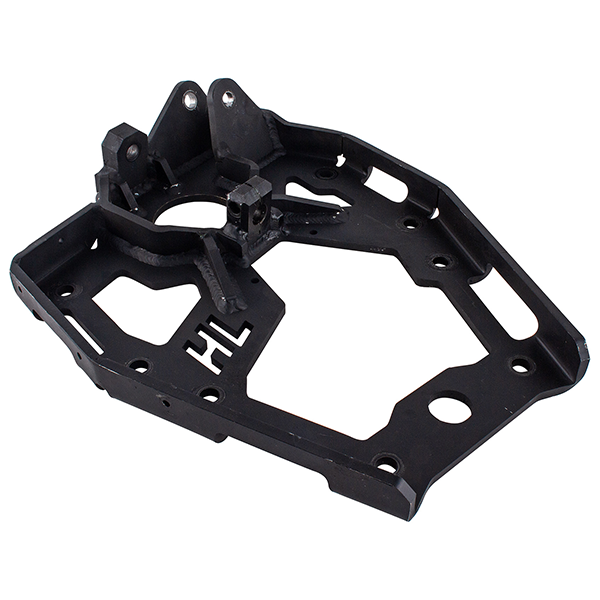

Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
- Backing plates have an offset or “CLOCKED” 5” forward & rearward so you can run BIG tires and not interfere with your clearance!
13” Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
FITMENT
-
2016 Polaris RZR 1000 XP EPS
-
2016 Polaris RZR 1000 XP High Lifter Edition
-
2016 Polaris RZR 1000 XP 4 EPS
-
2016 Polaris RZR 1000 XP 4 High Lifter Edition
-
2022 Polaris RZR RS 1
-
2022 Polaris RZR 1000 XP Sport
-
2022 Polaris RZR 1000 XP Premium
-
2022 Polaris RZR 1000 XP Trails and Rocks
-
2022 Polaris RZR 1000 XP High Lifter Edition
-
2022 Polaris RZR 1000 XP 4 Sport
-
2022 Polaris RZR 1000 XP 4 Premium
-
2022 Polaris RZR 1000 XP 4 High Lifter Edition
-
2015 Polaris RZR 1000 XP EPS
-
2015 Polaris RZR 1000 XP High Lifter Edition
-
2015 Polaris RZR 1000 XP Desert
-
2015 Polaris RZR 1000 XP 4 EPS
-
2015 Polaris RZR 1000 XP FOX Edition
-
2017 Polaris RZR 1000 XP 4 High Lifter Edition
-
2017 Polaris RZR 1000 XP 4 EPS
-
2017 Polaris RZR 1000 XP EPS
-
2017 Polaris RZR 1000 XP High Lifter Edition
-
2017 Polaris RZR 1000 XP SE EPS
-
2018 Polaris RZR 1000 XP EPS
-
2018 Polaris RZR 1000 XP High Lifter Edition
-
2018 Polaris RZR 1000 XP Ride Command
-
2018 Polaris RZR 1000 XP Trail and Rocks
-
2018 Polaris RZR 1000 XP 4 EPS
-
2018 Polaris RZR 1000 XP 4 High Lifter Edition
-
2018 Polaris RZR 1000 XP 4 Ride Command
-
2018 Polaris RZR RS1
-
2019 Polaris RZR RS1
-
2019 Polaris RZR 1000 XP EPS
-
2019 Polaris RZR 1000 XP High Lifter Edition
-
2019 Polaris RZR 1000 XP Ride Command
-
2019 Polaris RZR 1000 XP Trail and Rock
-
2019 Polaris RZR 1000 XP DYNAMIX
-
2019 Polaris RZR 1000 XP 4 EPS
-
2019 Polaris RZR 1000 XP 4 High Lifter Edition
-
2019 Polaris RZR 1000 XP 4 Ride Command
-
2019 Polaris RZR 1000 XP 4 DYNAMIX
-
2020 Polaris RZR RS1
-
2020 Polaris RZR 1000 XP Premium
-
2020 Polaris RZR 1000 XP Limited Edition
-
2020 Polaris RZR 1000 XP High Lifter Edition
-
2020 Polaris RZR 1000 XP 4 High Lifter Edition
-
2020 Polaris RZR 1000 XP Trail and Rock
-
2020 Polaris RZR 1000 XP 4
-
2020 Polaris RZR 1000 XP 4 Premium
-
2020 Polaris RZR 1000 XP 4 Limited Edition
-
2021 Polaris RZR RS 1
-
2021 Polaris RZR 1000 XP Sport
-
2021 Polaris RZR 1000 XP Premium
-
2021 Polaris RZR 1000 XP Trails and Rocks
-
2021 Polaris RZR 1000 XP High Lifter Edition
-
2021 Polaris RZR 1000 XP 4
-
2021 Polaris RZR 1000 XP 4 Sport
-
2021 Polaris RZR 1000 XP 4 Premium
- 2021 Polaris RZR 1000 XP 4 High Lifter Edition
INCLUDES
Item
DETAILS
TERMS OF WARRANTY
Click here for High Lifter's limited lifetime warranty.
Warning: This product can expose you to chemicals including Titanium Dioxide, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
DOWNLOADS
Installation Instructions
