Supercharger Kit - 2012-2018 Jeep Wrangler 3.6L JK (Manual Transmission)

The Kraftwerks 2012-2018 Jeep Wrangler JK Supercharger System features 328 HP to the rear wheels - a 130 HP gain for the Jeep Wrangler JK 3.6L and will work with automatics (add on kit required for Automatics part #150-03-2000) and manuals and provides instant throttle response with a progressive power curve that increases straight through to redline without the typical spiking or surging that are common with turbochargers.

This bolt-on kit is unique as it delivers a more useable power curve, reduced cylinder pressures, less strain on engine components, and increased reliability. Rotrex superchargers also operate much cooler when compared to turbochargers and other supercharger systems, which reduces the engine’s intake air temperature, increasing power and lowering the risk of detonation. The heart of the system is the Rotrex C30-94, capable of supporting systems up to 445 Crank HP.

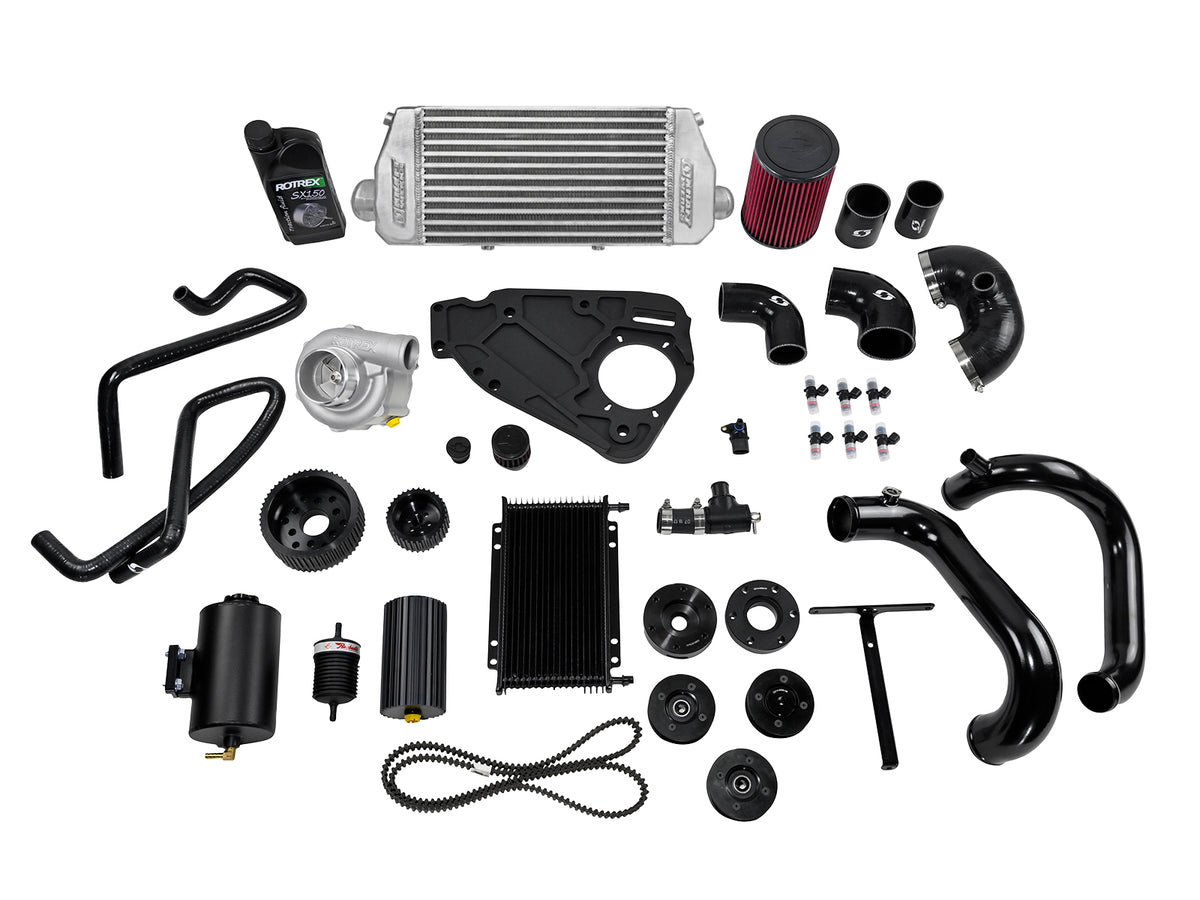

Each Jeep supercharger system is a comprehensive design and includes all necessary components to ensure safe, reliable operation and ease of installation. Standard-issue with each kit is a large, front-mount intercooler to help ensure low intake air temperatures for optimal performance: all necessary aluminum tubing, silicone couplers, and clamps. Proper air/fuel ratios are ensured with the included Grams Performance 52lb/hr fuel Injectors, and an optional engine management system. Convenient, plug-and-play fuel injector adapters are also included, making each kit a true bolt-on experience.

Rotrex superchargers are renowned for their compact size, high adiabatic efficiency, low vibration, and quiet operation. Their unique traction drive technology is what makes all of this possible, which, unlike other superchargers, transmits power through frictional forces between its rolling elements. Each Rotrex unit features a self-contained oiling system that remains independent of the engine. Its dual-action oil pump supplies traction fluid to the supercharger while the supplied cooler ensures proper fluid temperatures at all times.

Features:

Dyno proven for 328 hp at the rear wheels / 280 lbs-ft Torque with OE Headers and Exhaust System

Retains Factory A/C and Accessories

Rotrex C30-94 Supercharger w/ 85mm Pulley (7psi)Grams Performance 550cc/min. High Impedance Fuel Injectors w/ Plug-and-Play

Front Mount Intercooler

Aluminum Intercooler Piping

Oil Cooler (for Super Charging system)

High-Quality CNC-Machined Brackets and Idler Pulley

High-Quality Fasteners and Hardware

Recirculating Bypass Valve
