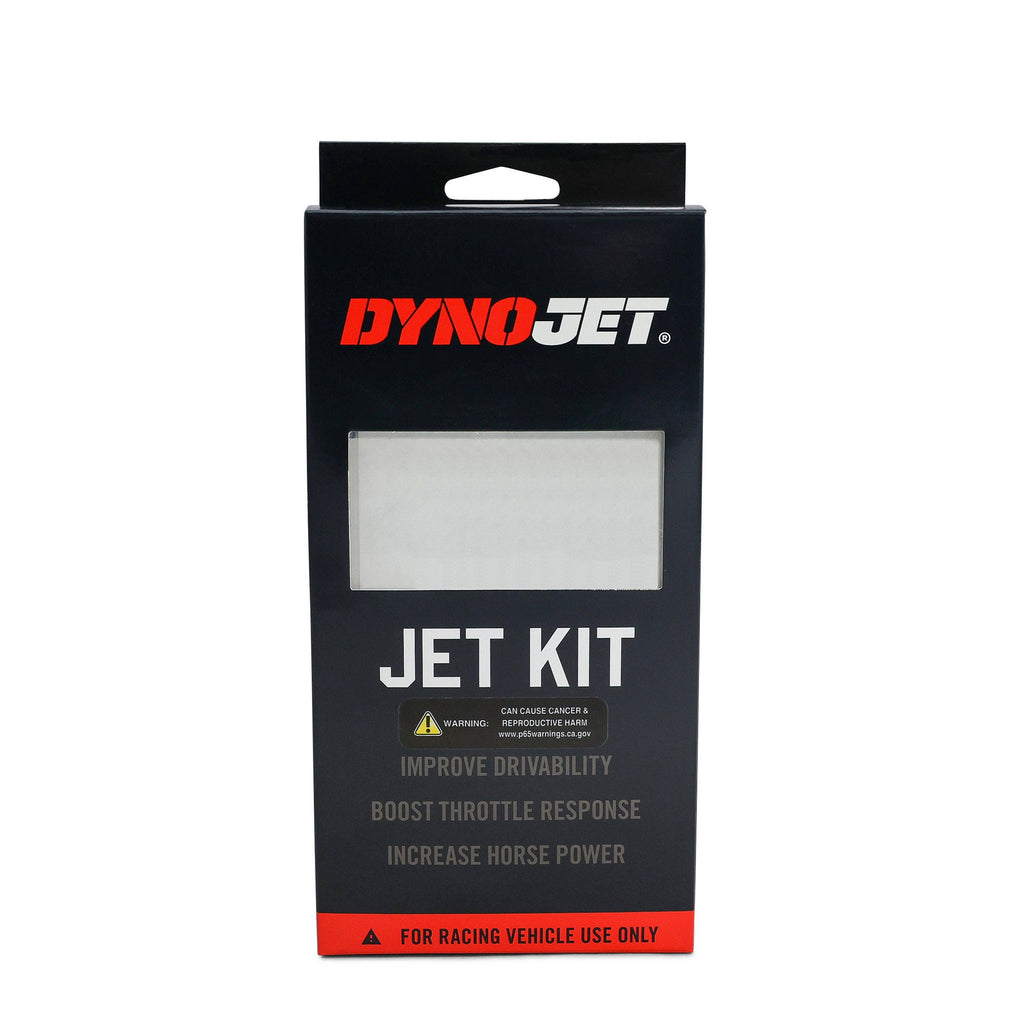

ATV Jet Kit for 2006-2009 Yamaha Rhino 450 ^{GREAT DEAL}

Jet Kit Types

Needle & Needle Jet Caps

Many newer bikes have very flat power and fuel delivery curves when used with the stock exhaust and air-box. When aftermarket pipes are used the power curve is usually not flat. You find the need to lean out for low speed and richen up for top end; or leaner on the top end and richer at the low speed. In order to achieve full function and driveability Dynojet develops shrouds or cap style nozzles for adjusting the upper or lower top end. They also have an effect similar to fuel injection by breaking up the fuel as it enters the air stream.

Fuel Needle

The design of the needle is where Dynojet spends most of its R&D time. The needle is designed to give the correct amount of fuel throughout the mid-range and is also designed to allow adjustment from groove 1 to groove 6 with little or no effect below 3000 R.P.M.; then with the correct end dimensions the needle will have little effect on the main jet regardless of needle position. This isolates all circuits from each other and ensures easy set-up of the midrange and driveability.

Main Air Jet

This jet allows air into the emulsion tube to mix with fuel being drawn up from the float bowl. It controls the amount of fuel which can be pulled from the float bowl into the venturi. The larger the size of the main air jet the more air you get and less fuel. The smaller the main air jet the more fuel you get and less air. Dynojet alters this only to achieve the flattest possible fuel delivery curve.

Pilot Circuit

This controls 100% of the engine idle and 25% of the transition onto the needle. Dynojet has found that the engine will idle with the standard pilot jet with or without the air-box and with the slides and needles removed from the carburetors; therefore we never change the pilot jet. Doing so is proof that you are not using the other circuits correctly. Idle and off idle is controlled by the mixture screws and the float level which have the most positive effect below 4000 R.P.M. On some models the pilot air jet is changed to provide optimum fuel economy. Correct balancing of the carburetors also ensures a smooth idle.

Main Jet

We develop our main jets to correctly serve two functions; static load and dynamic load. The static load is the fuel received through the main jet in the upper gears where the tachometer is moving very slow. The dynamic fueling portion of the main jet is the amount of fuel received from the jet in the mid-range potion of the power. For example you have a GSXR1100 G H with #130 main jets. You then install #125 mains. After running the bike you notice the top end has improved but the mid-range doesn't pull as well. You then install #135 mains and you notice the mid-range is great but the top end is slower. This is a common compromise when using stock main jets and needles. If you install Dy
