- Defender* - All years & models
- Maverick Trail - All years & models
*Models with selectable locking rear differential

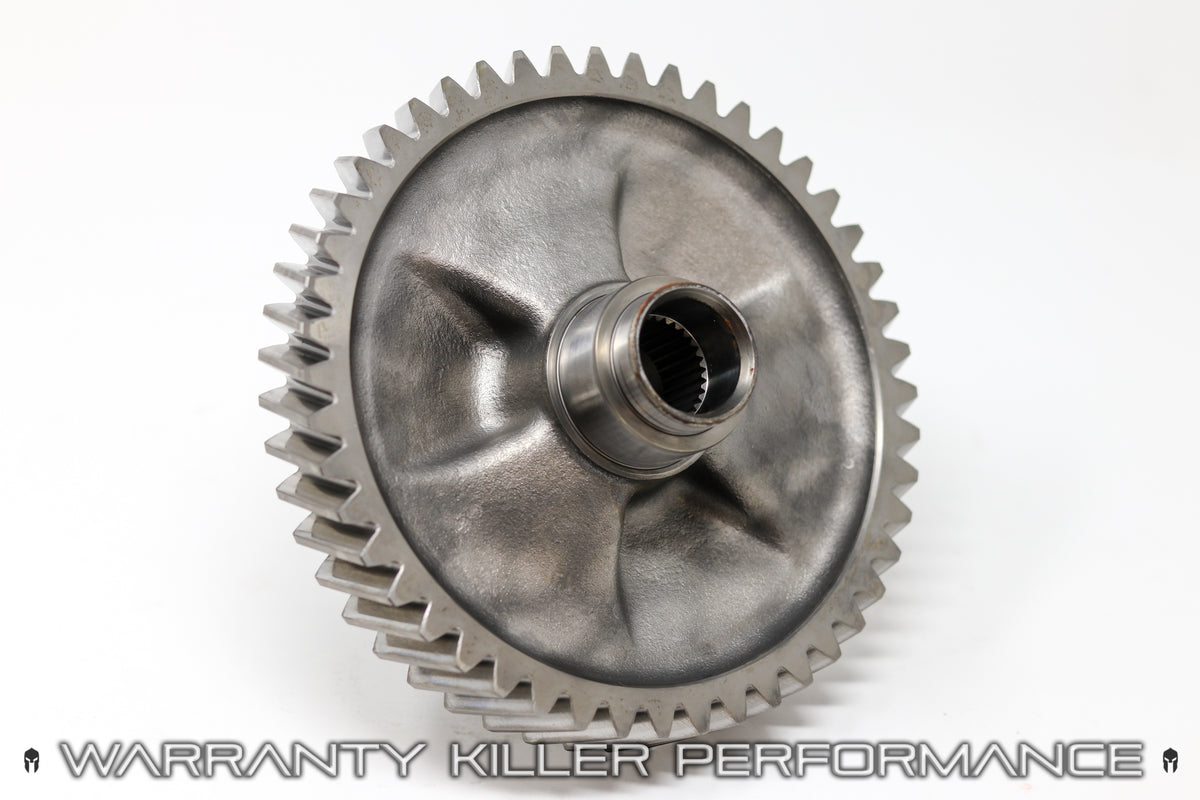

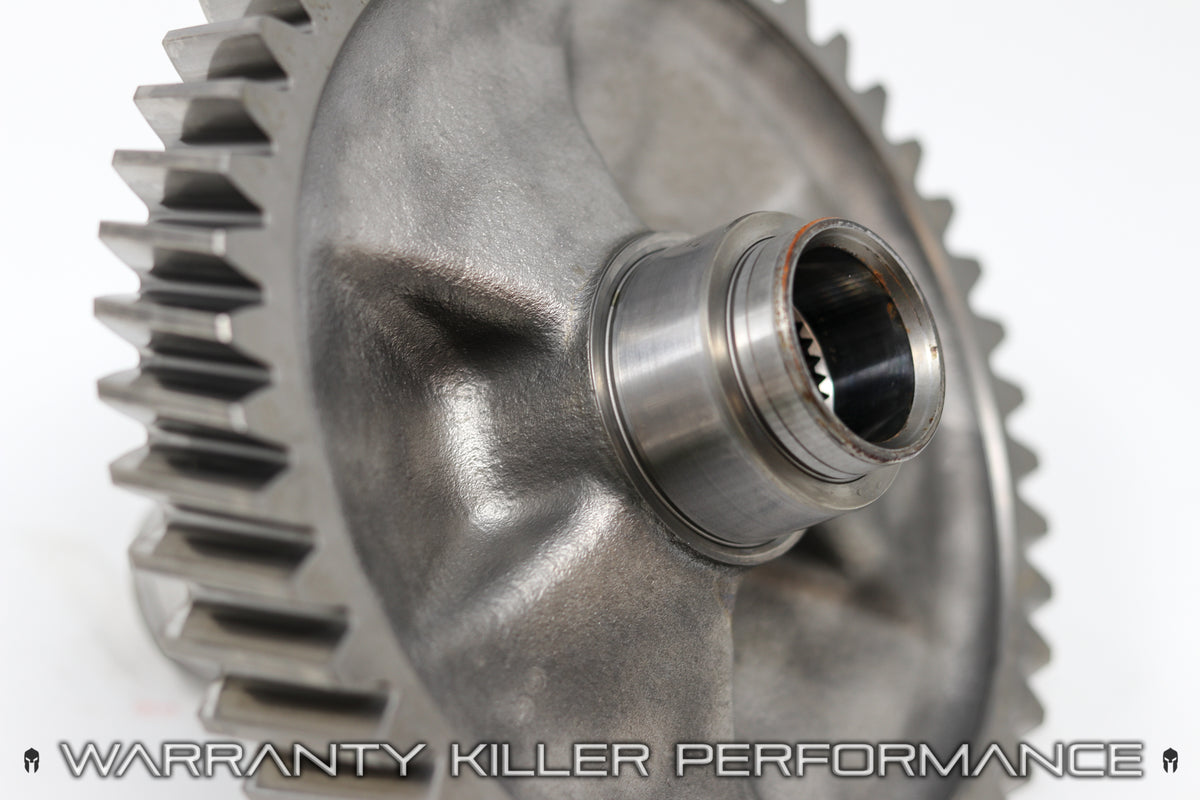

- Ring Gear - QTY 1
- Premium Oil Seal - QTY 2
- USPS Package: Priority Mail Medium Flat Rate Box
- Box Dimensions: 9x9x9
- Weight: 12.9 lbs.
No Installation Guide Exists
QUESTIONS & ANSWERSAsk a Question
I have a locker on the rear on a defender 1000 xt, if I get this does it mean that it will not be a true locker anymore,? This is what I'm understanding by the description.
Hey Adam, Your unit comes factory with what they call turf mode. With selectable lock or unlock. This is a final drive ring gear with planitary spider gears to allow the rear tires to operate at diffrent speeds when turning in unlocked mode. Turf Mode is the name as this keeps you from tearing up grass when turning as if it were in locked position the wheels are traveling a different radius and the same speed when locked. This system is problamatic due to the fact the spider gears toat the load of the axel bind diffeence when turning or one tire has more load or traction. The spider gears can break. So this kit is a solid ring gear and elimnates the unlockable option and the reliability issue of the turf mode.
Do you have a link for installation instructions I would like to see how difficult this is to install before I buy it.

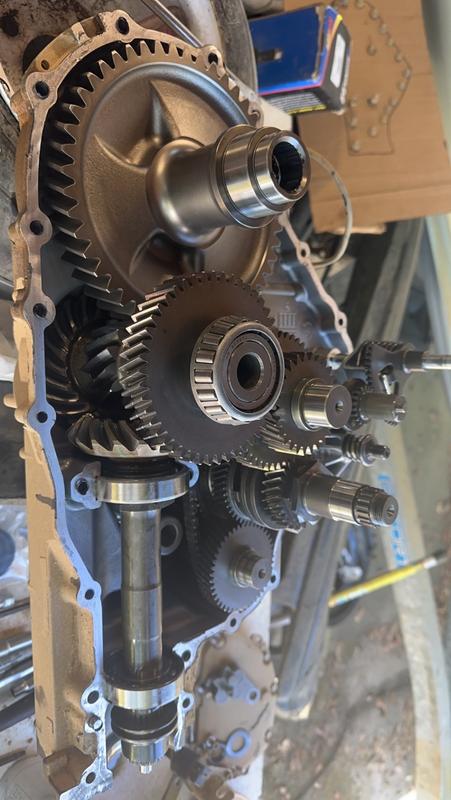

We do not, This would consist of removing the transmission. This would require a clutch puller and normal hand held or power tools. Remove the transmission, split the cases the large rear ring gear is removed simply by pulling it out drop the new gear in and bolt the transmission cases back together and reinstall the transmission. The ECU will need to be sent in to reflash and turn off turf mode.
How can I tell if my 2019 can am xmr Defender has turf mode? Dose my 2019 can am xmr Defender need a turf mode delete?
There will be a switch on the dash to lock the transmisison. Yes sir we offer turf mode delete kits, the ecu also has to be reflash to turn turf mode off in the ECU.
Email us year, make, modle , trim.
Stock bearings used?
Hello, you will continue to use to same bearings. You will only need to replace the oil seals along with the gear.
